Chrysler
>>
2000
>>
Cirrus L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Door Actuator / Motor, HVAC
Air Door Actuator / Motor, HVAC

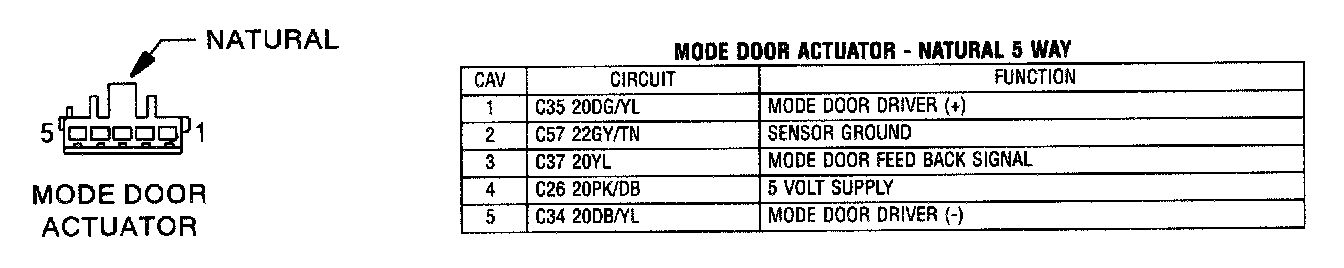

Mode Door Actuator:
