Cirrus L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-39
Sheet 8W-80-39

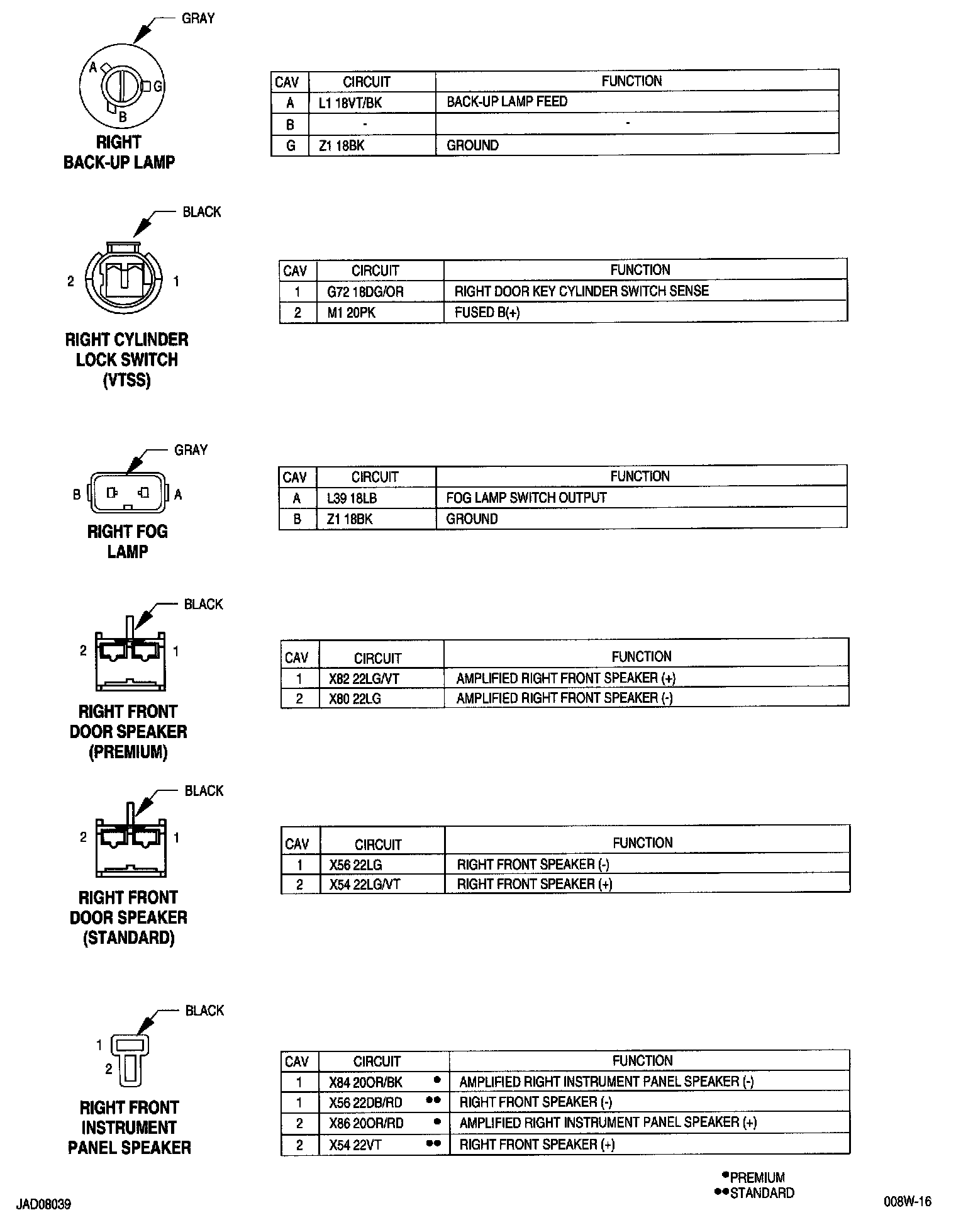

8w-80-39:
