Chrysler
>>
2000
>>
Cirrus L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>

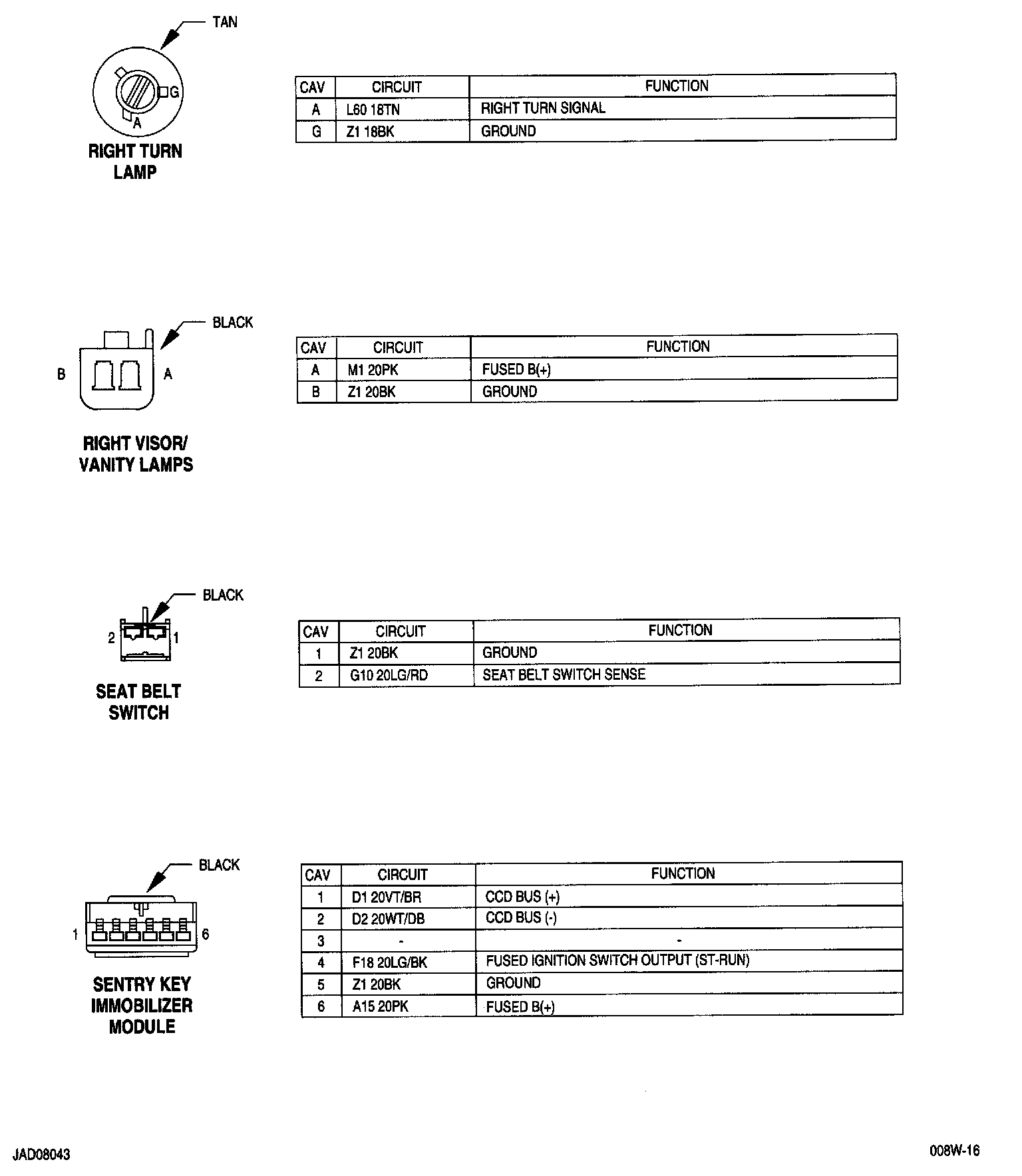

Sheet 8W-80-43
Sheet 8W-80-43
8w-80-43:
