Power Door Lock Switch: Diagrams

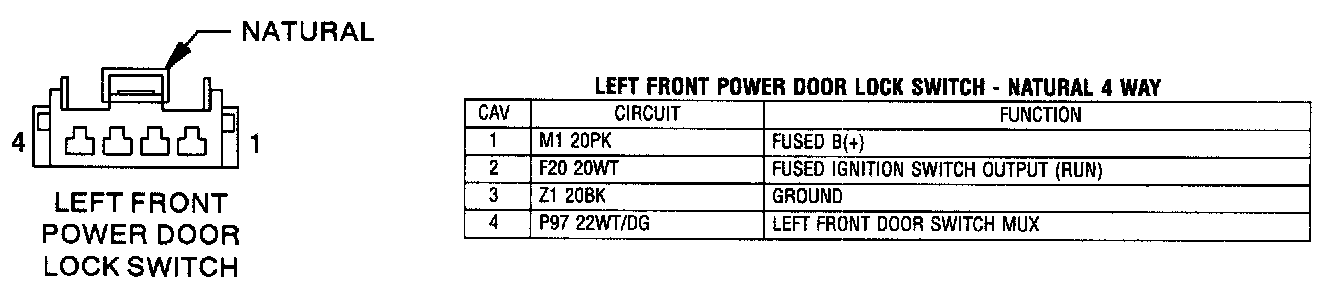

Left Front Power Door Lock Switch:

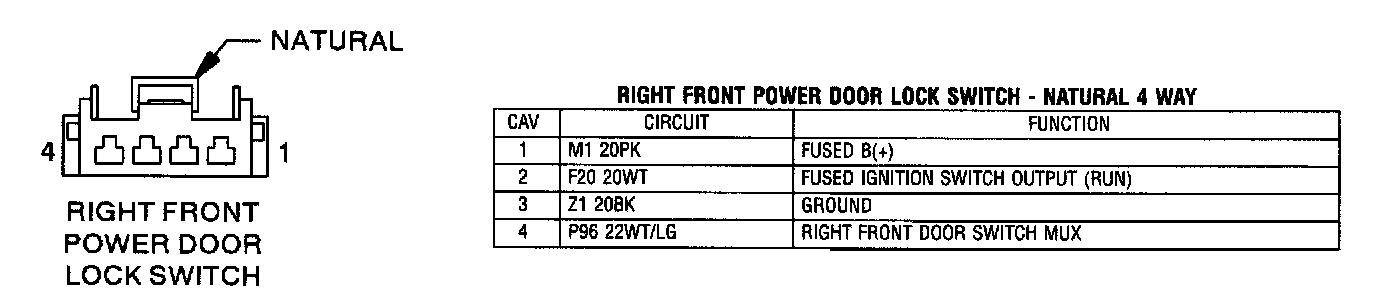

Right Front Power Door Lock Switch:
