Headlamp
>>
System Diagram
System Diagram

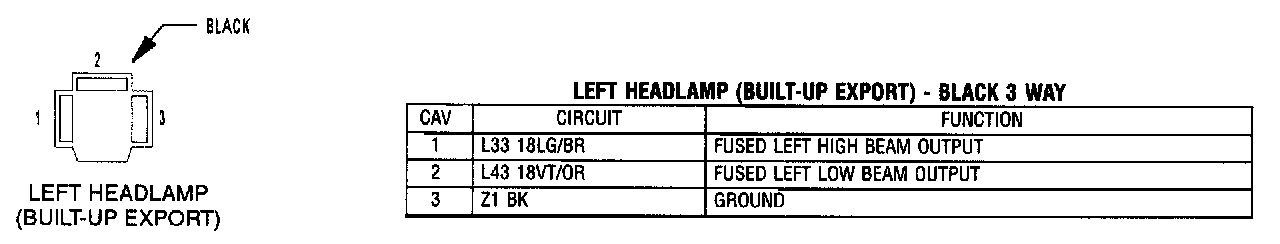

Left Headlamp (Built-Up Export):

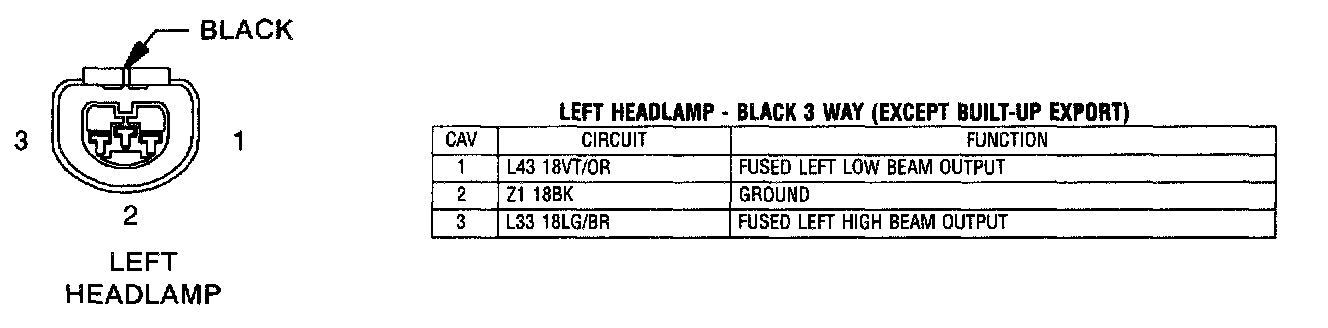

Left Headlamp (Except Built-Up Export):

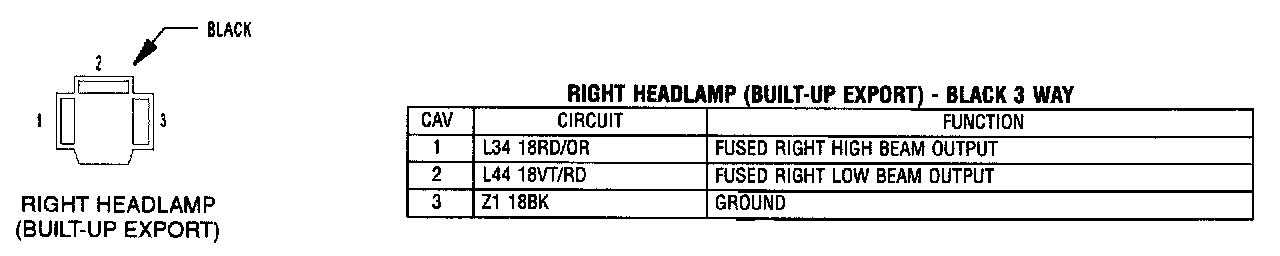

Right Headlamp (Built-Up Export):

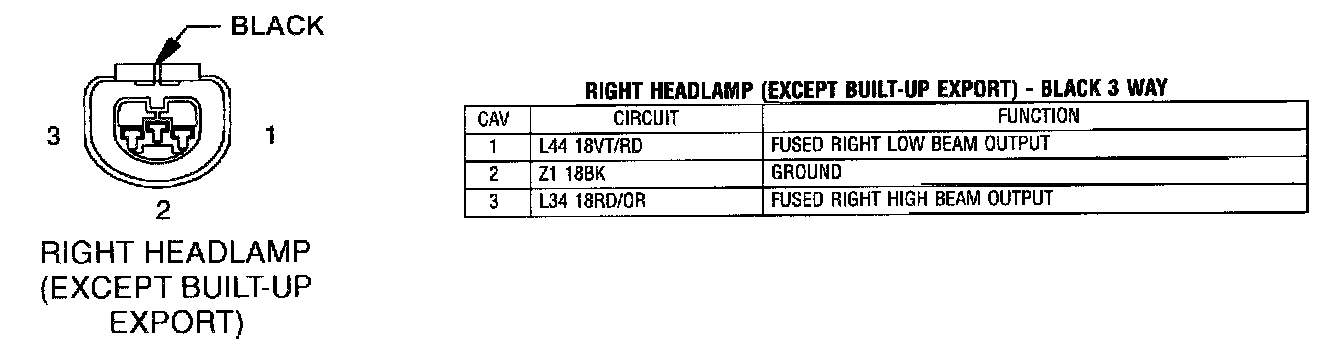

Right Headlamp (Except Built-Up Export):
