Chrysler
>>
2000
>>
Cirrus V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

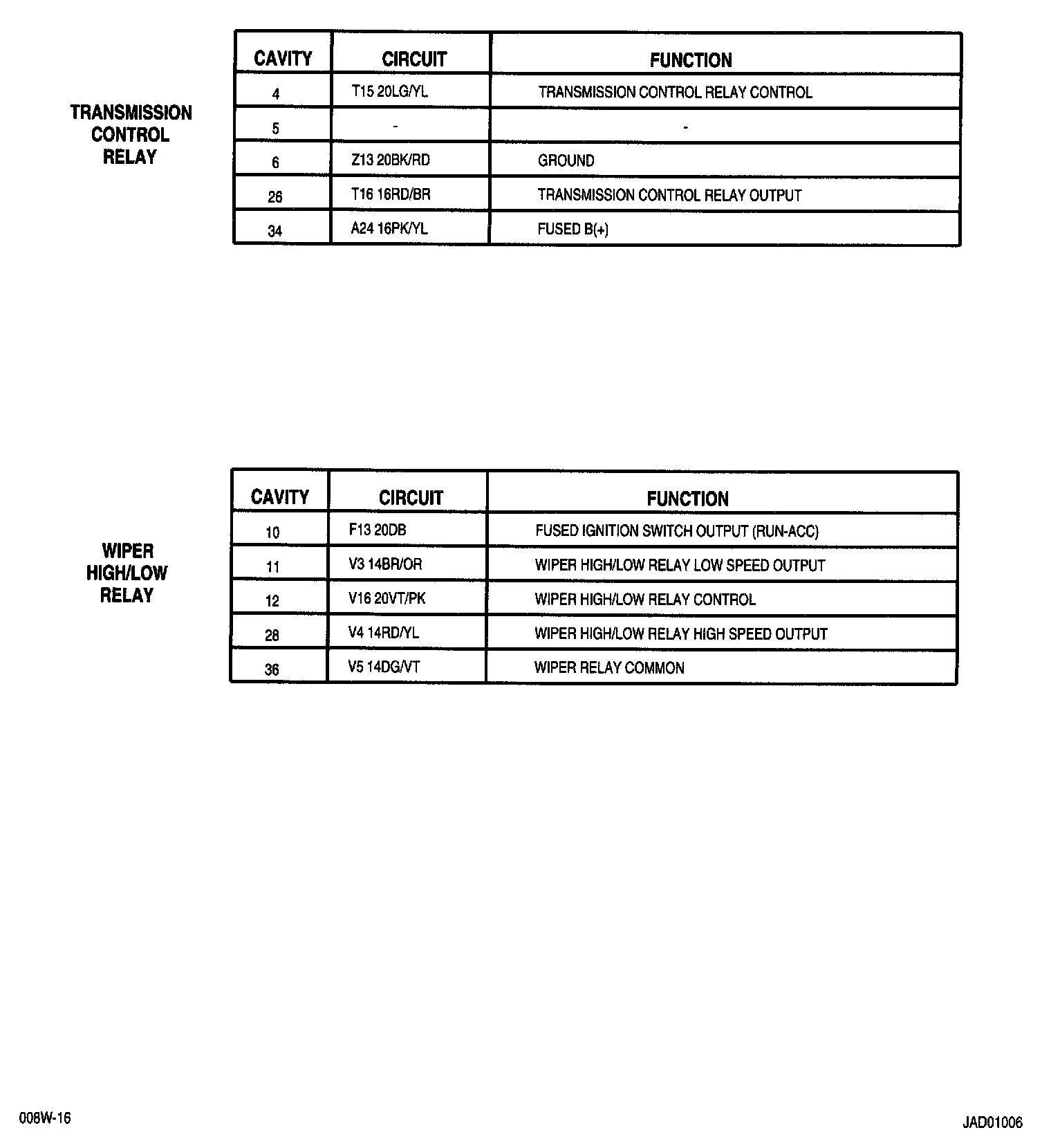

Transmission Control System Relay, A/T
Transmission Control System Relay, A/T
8w-10-6:
