Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Cirrus V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Group 8W-10 (Power Distribution)
>>
Sheet 8W-10-13
Sheet 8W-10-13

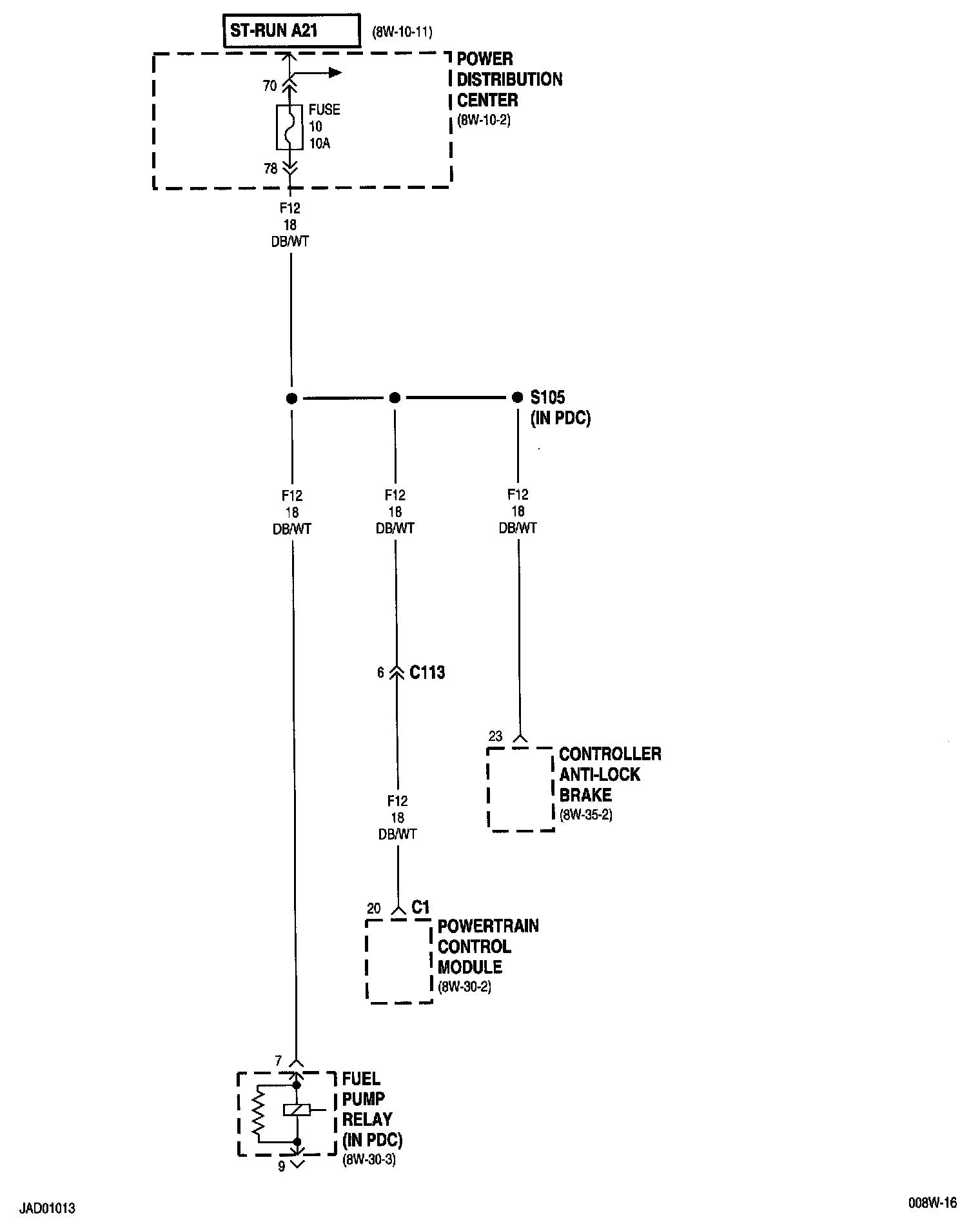

8w-10-13:
