Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Cirrus V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
Information Bus

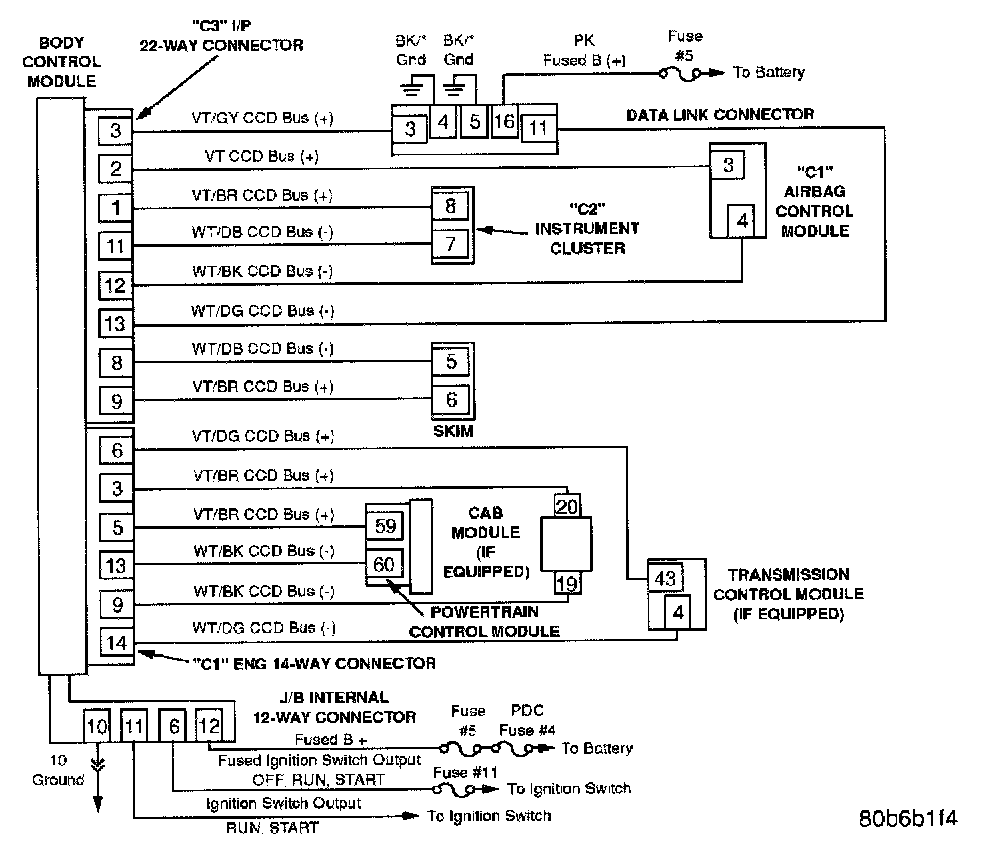

CCD Bus:
