Home >> Chrysler >> 2000 >> Cirrus V6-2.5L VIN H >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Sensors and Switches - Instrument Panel >> Door Switch >> Locations

Door Switch: Locations

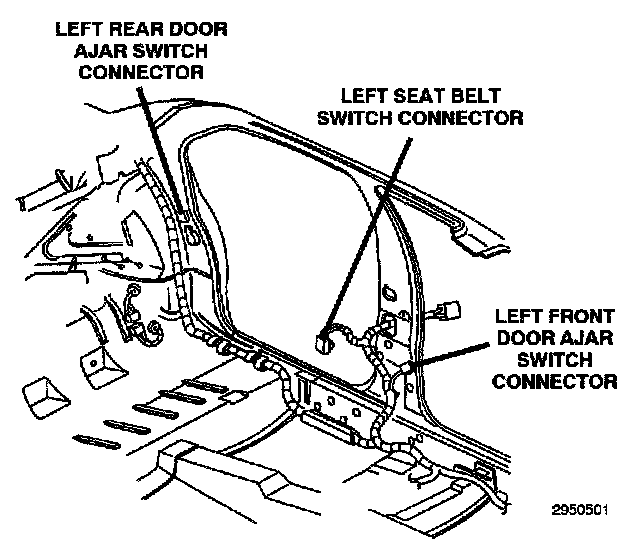

Left Switch:

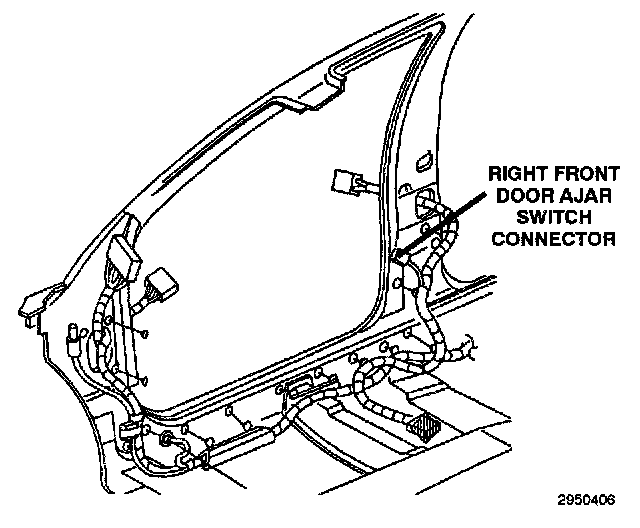

Right Front Switch:

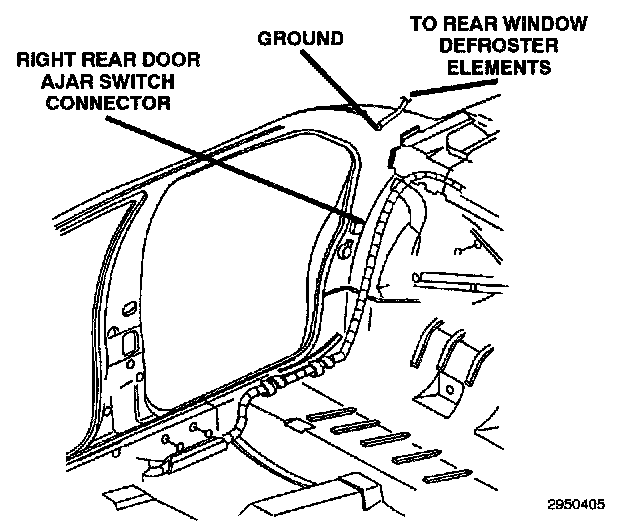

Right Rear Switch:
