Turn Signal Flasher: Testing and Inspection

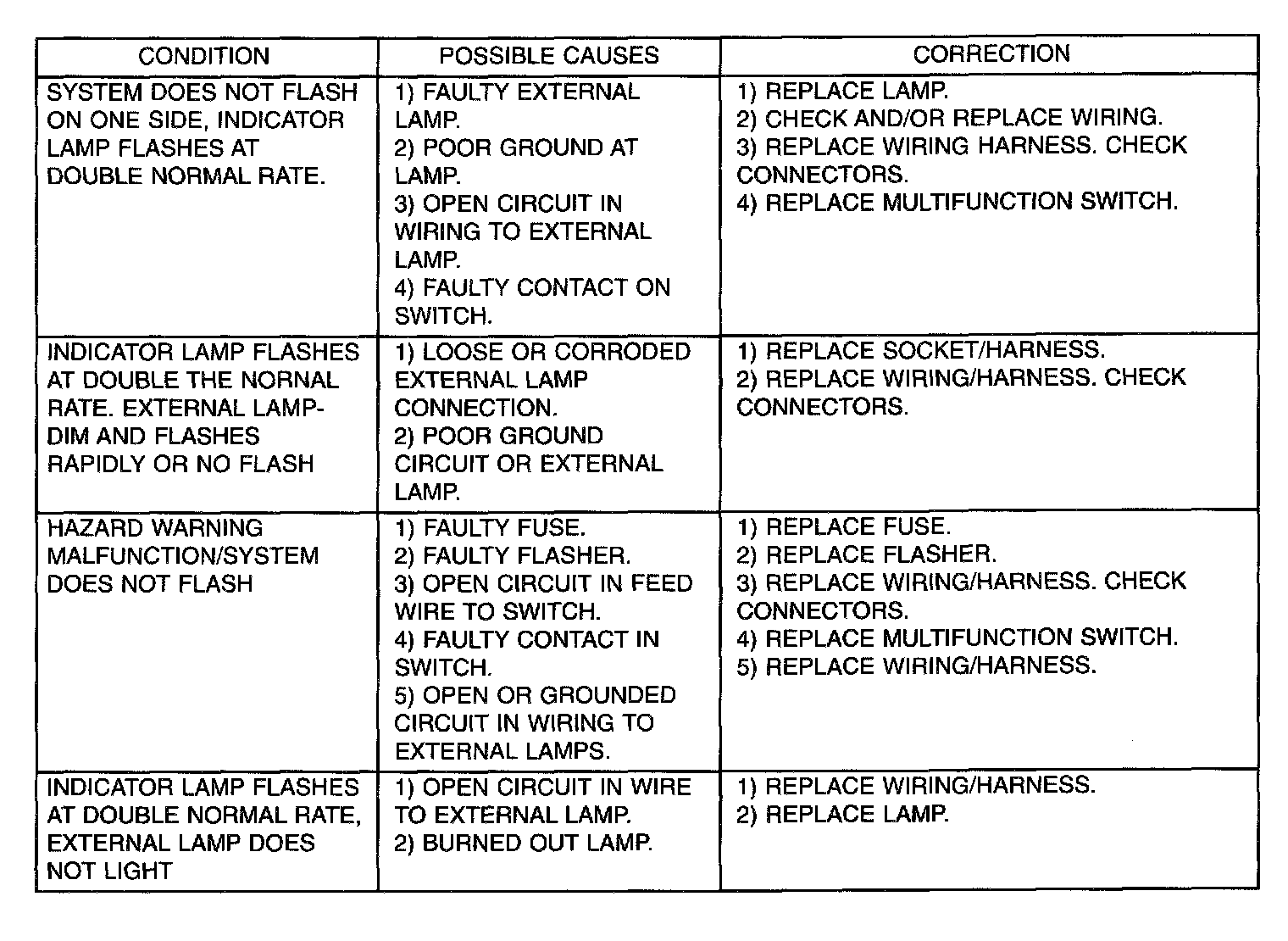

Combination Flasher Diagnosis (Part 1 Of 2):

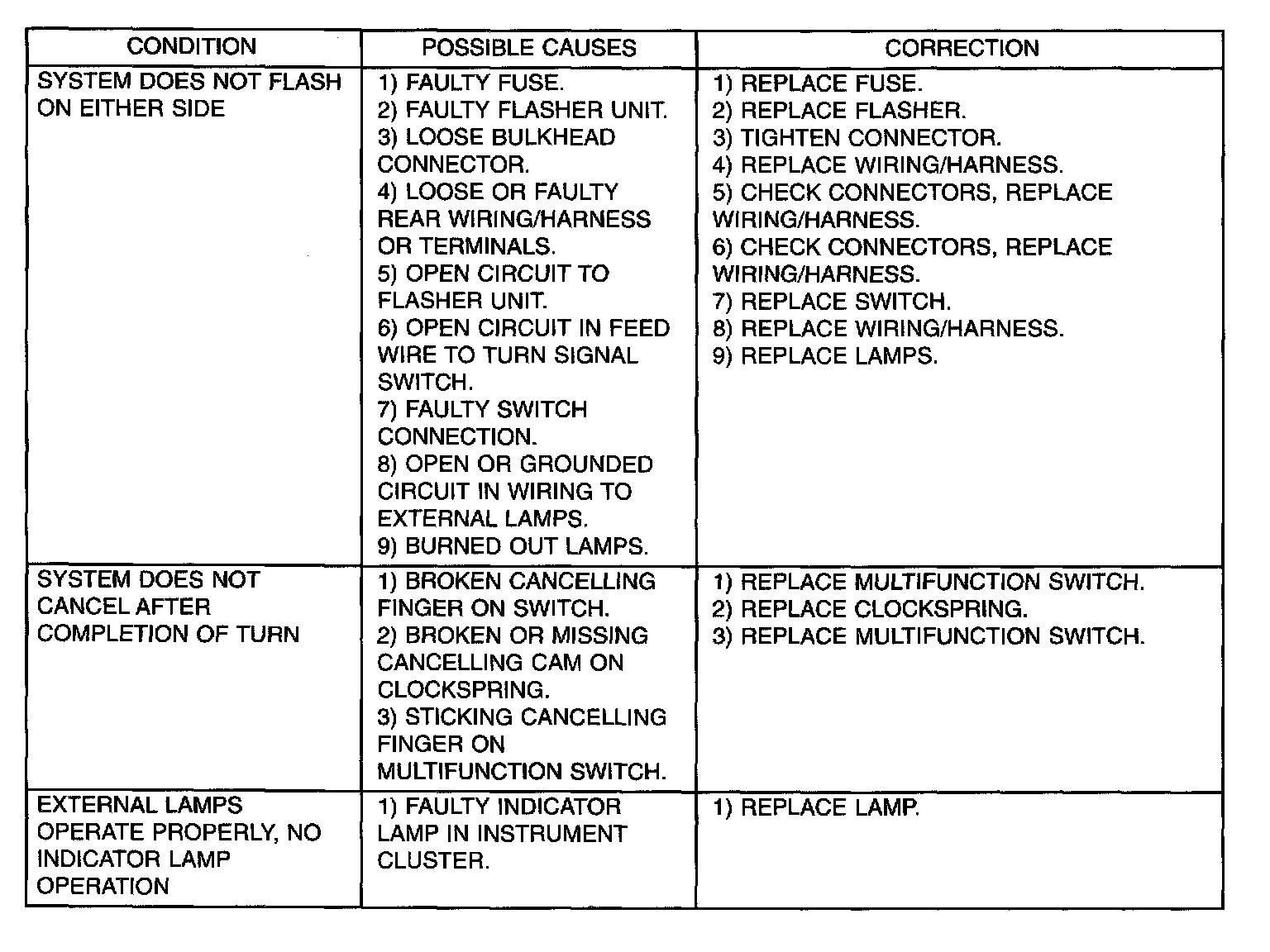

Combination Flasher Diagnosis (Part 2 Of 2):
