Mode Door Inoperative

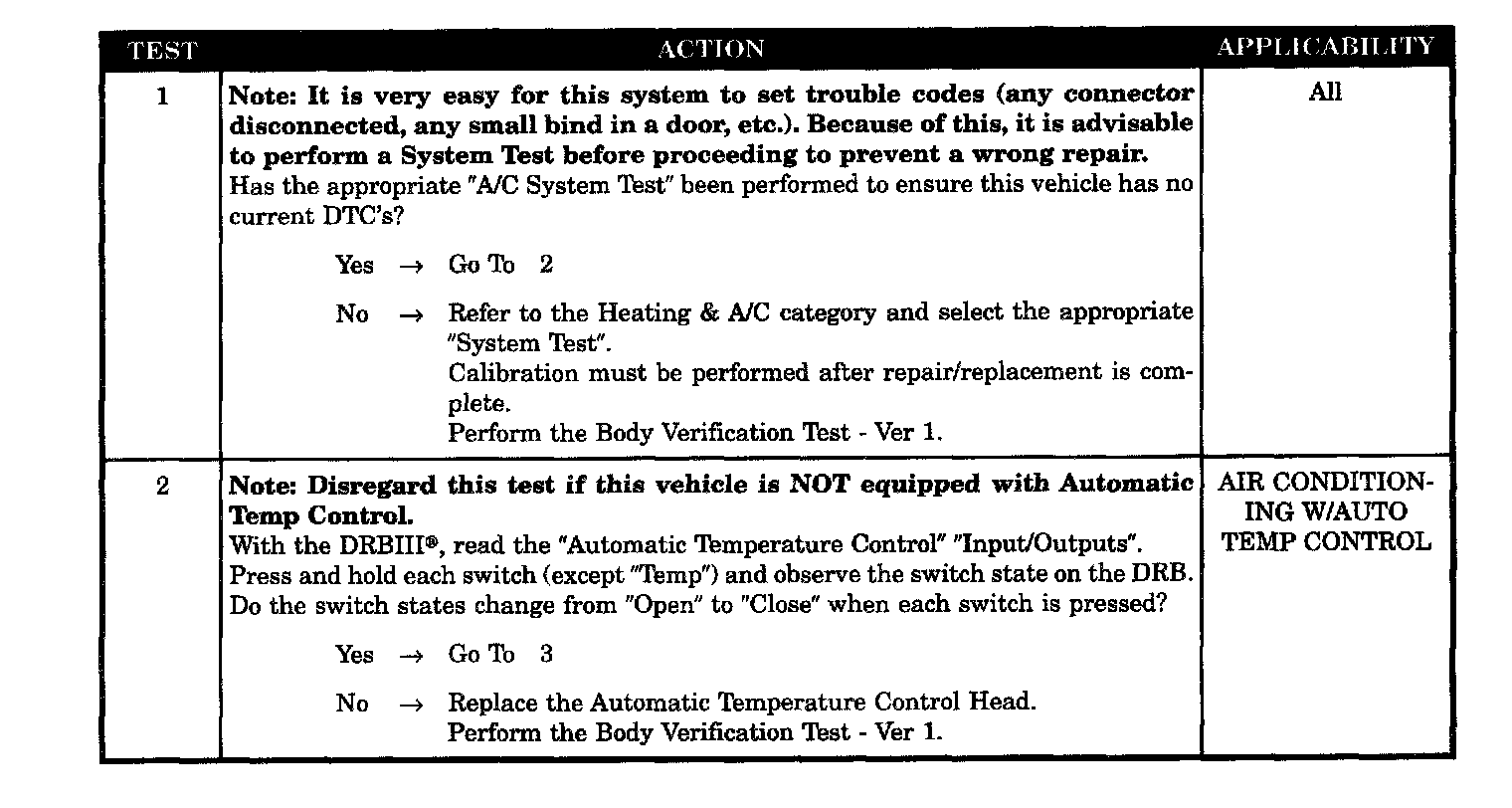

Test 1 - 2:

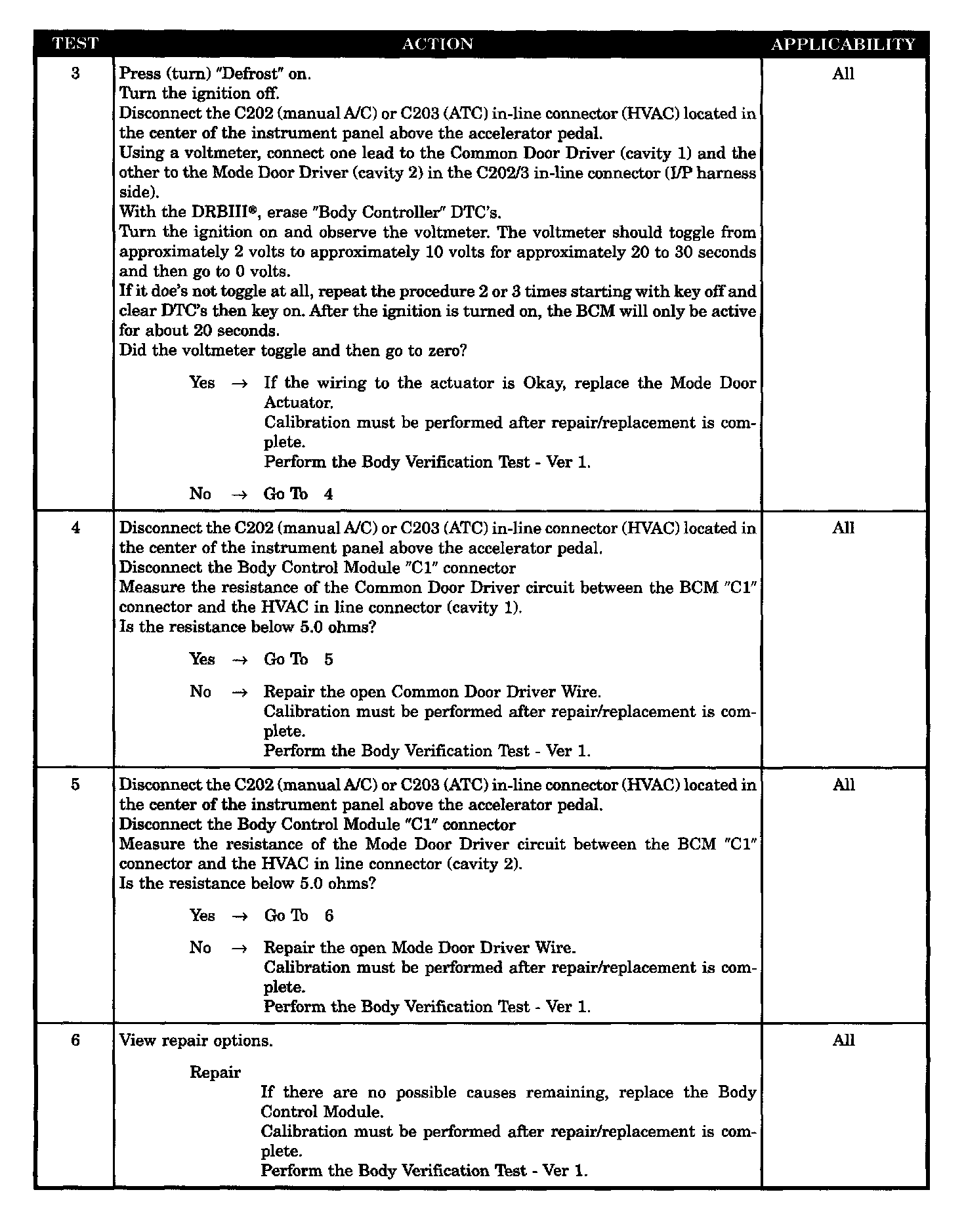

Test 3 - 6:

SYMPTOM
MODE DOOR INOPERATIVE

POSSIBLE CAUSES
- Common door driver wire open
- Mode door driver wire open
- Mode door actuator check
- Mode door inoperative pre test
- Body control module - mode door driver open
- ATC control head - Mode door button open
