Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Concorde V6-2.7L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>

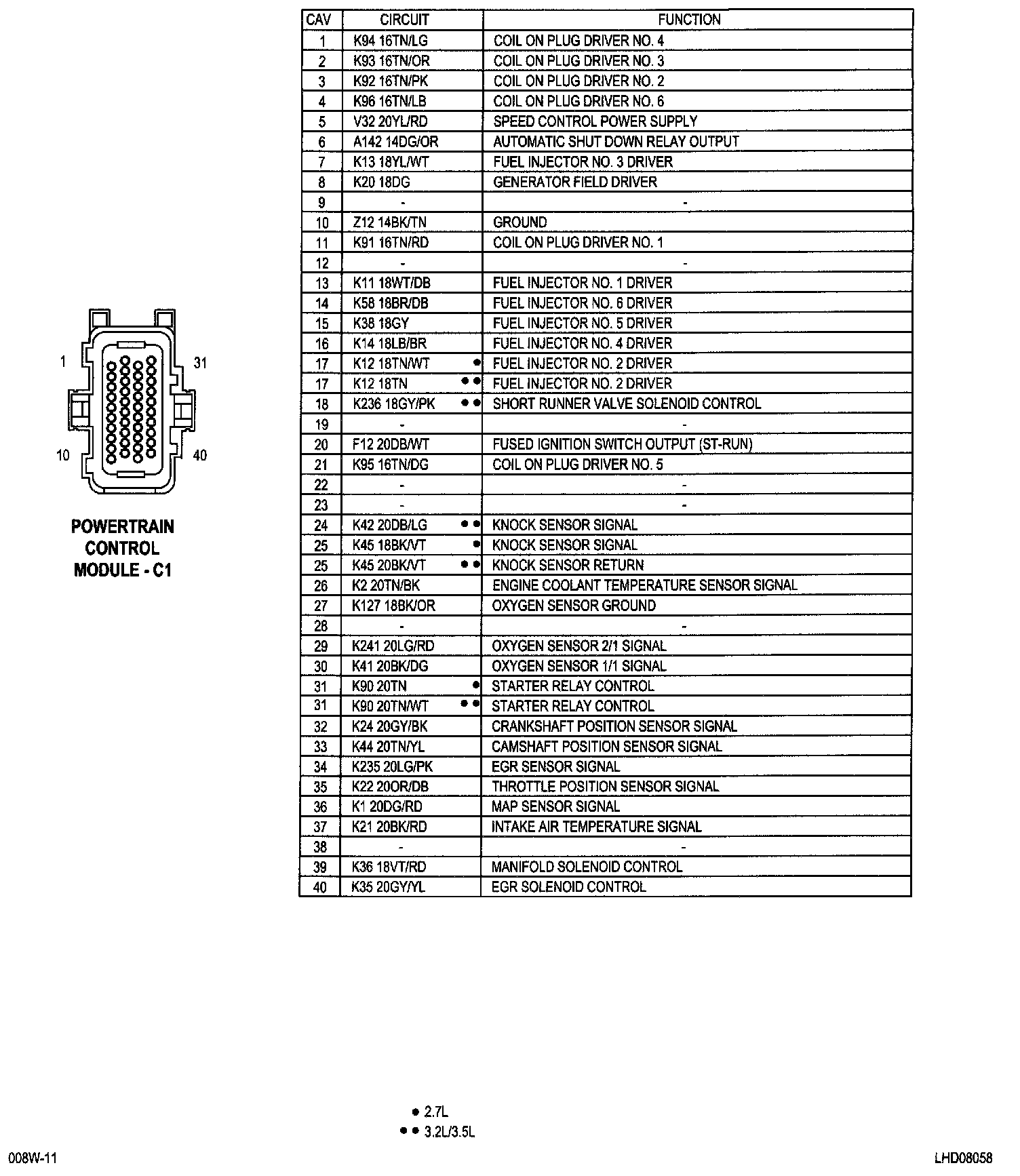

Sheet 8W-80-58
Sheet 8W-80-58
8W-80-58:
