Home >> Chrysler >> 2000 >> Concorde V6-2.7L VIN U >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom

Diagnosis By Symptom

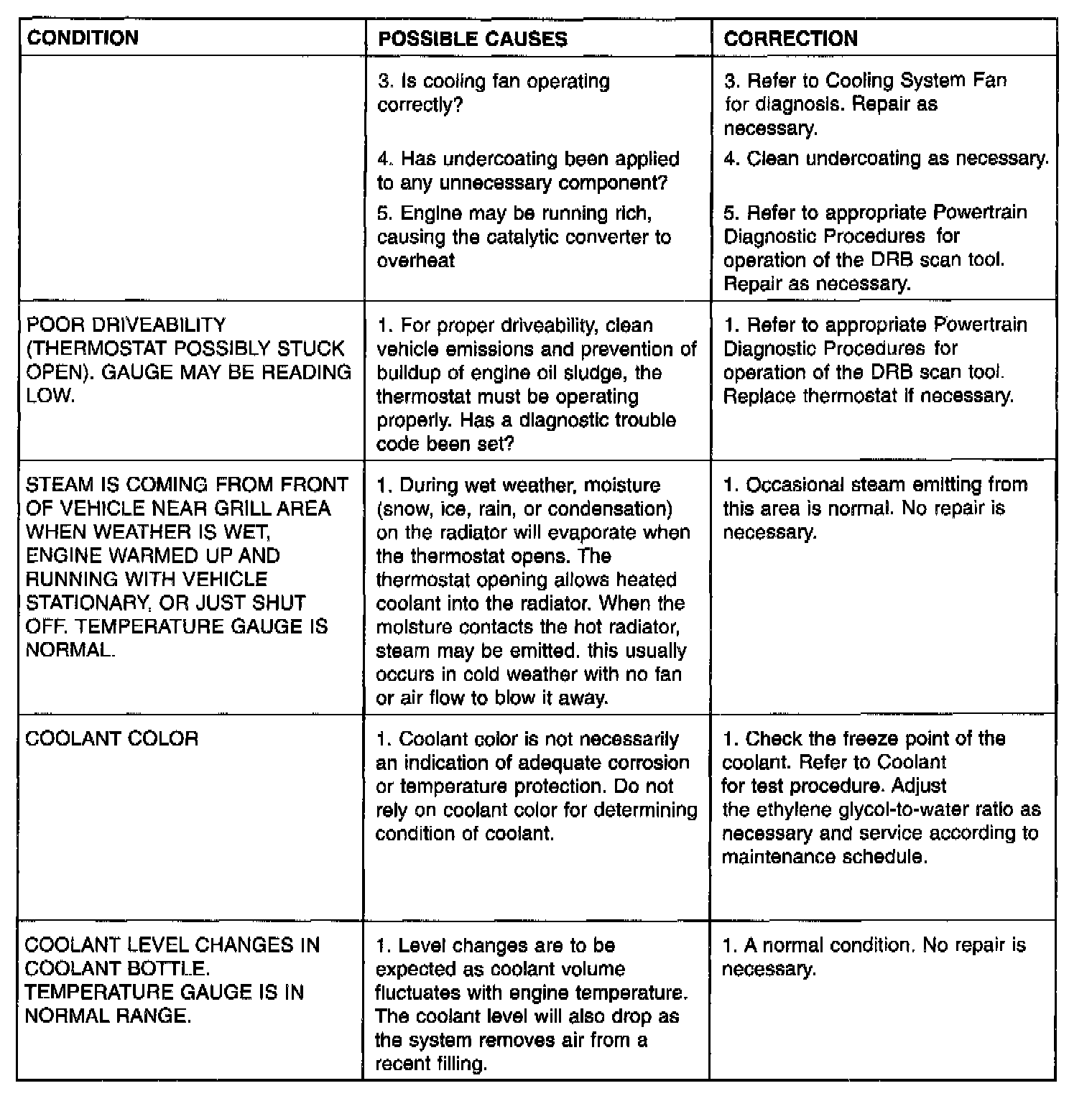

COOLING SYSTEM DIAGNOSIS Part 1 of 4

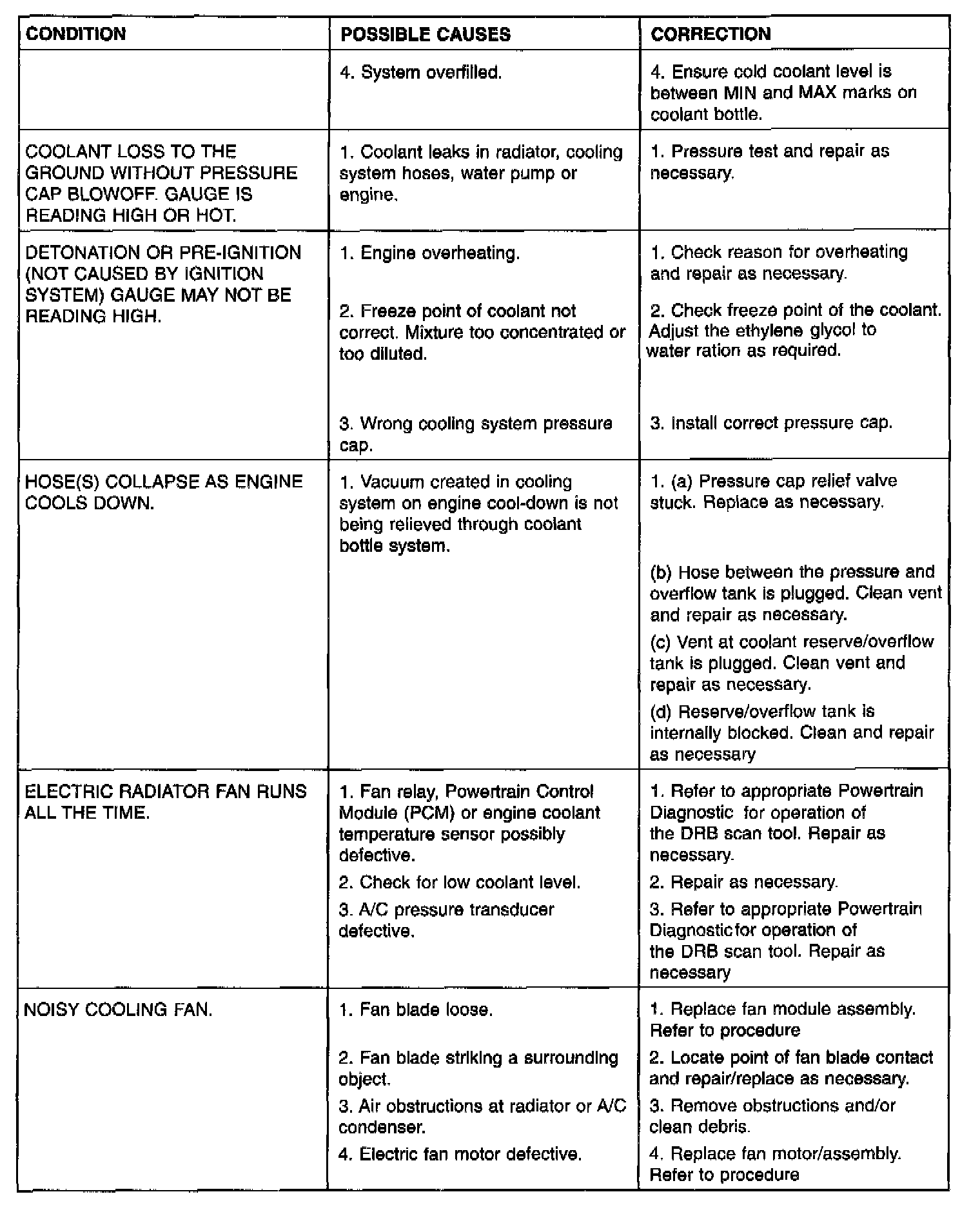

COOLING SYSTEM DIAGNOSIS Part 2 of 4

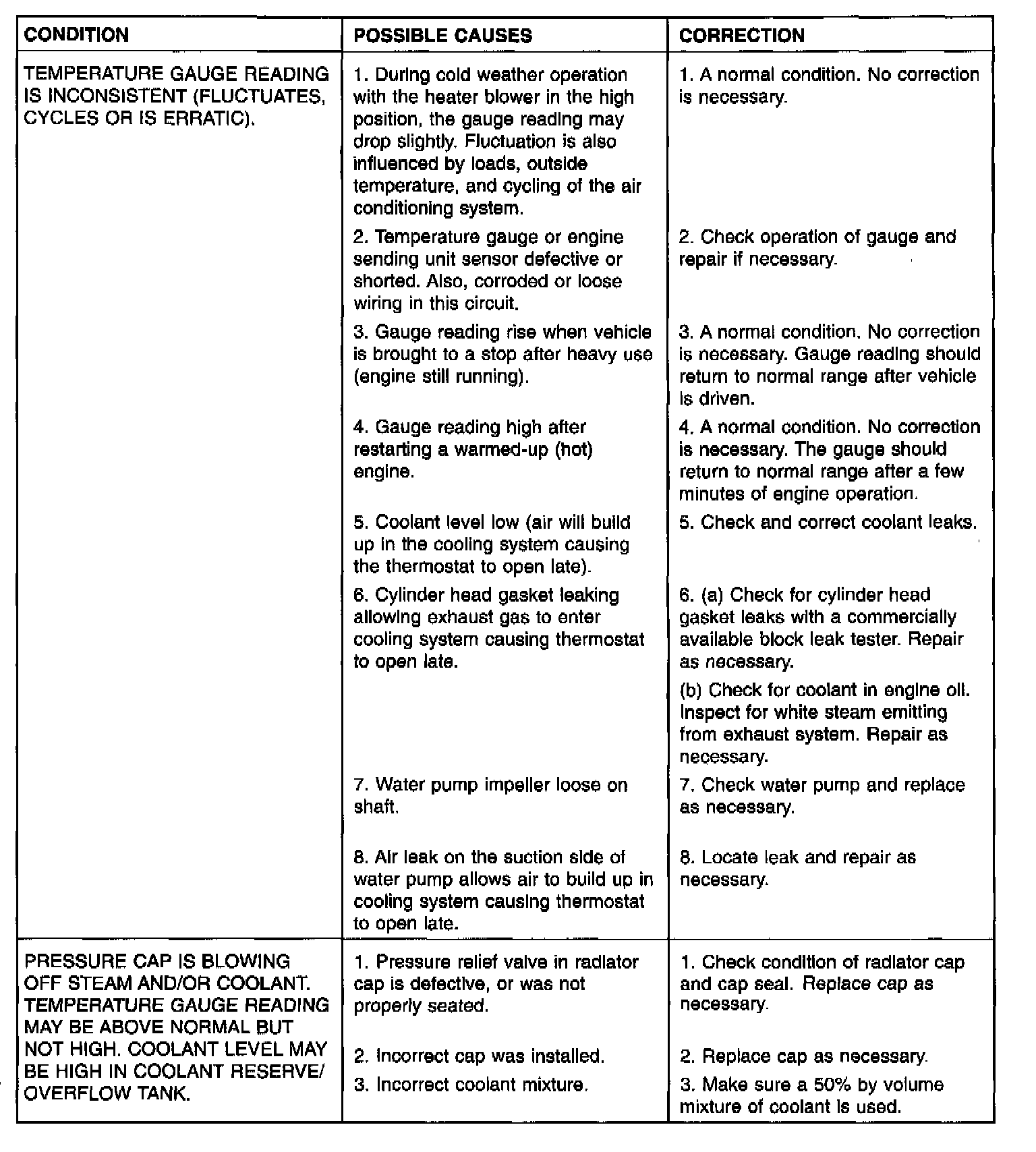

COOLING SYSTEM DIAGNOSIS Part 3 of 4





COOLING SYSTEM DIAGNOSIS Part 4 of 4
