Trunk / Liftgate Latch Release Cable: Service and Repair

EMERGENCY RELEASE CABLE

REMOVAL

1. Remove the decklid cover.

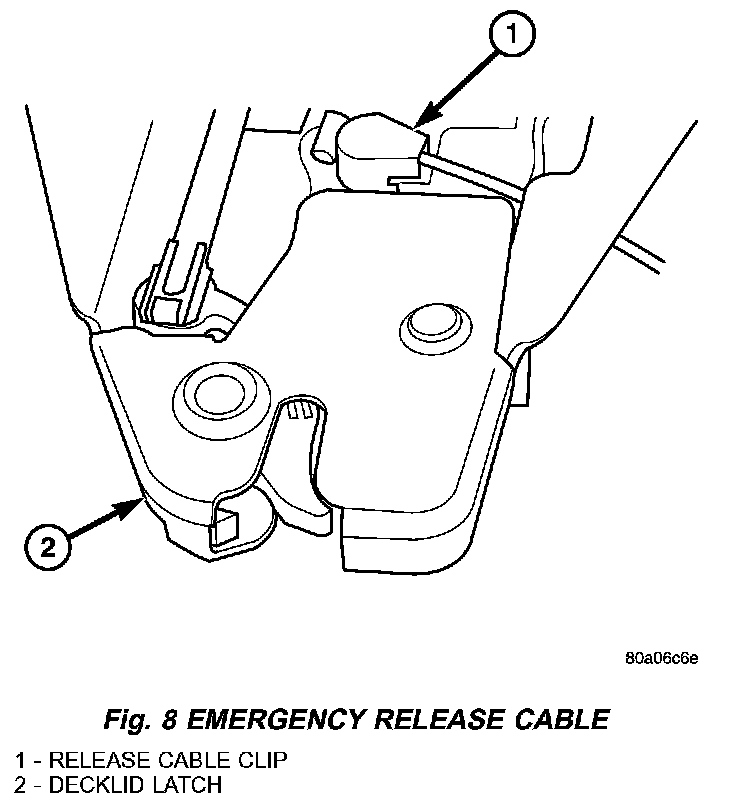

Fig. 8:

2. Unclip cable and handle assembly (Fig. 8).

INSTALLATION

1. Clip emergency release cable onto the latch.
2. Install the decklid cover.
