Chrysler
>>
2000
>>
Concorde V6-3.2L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>

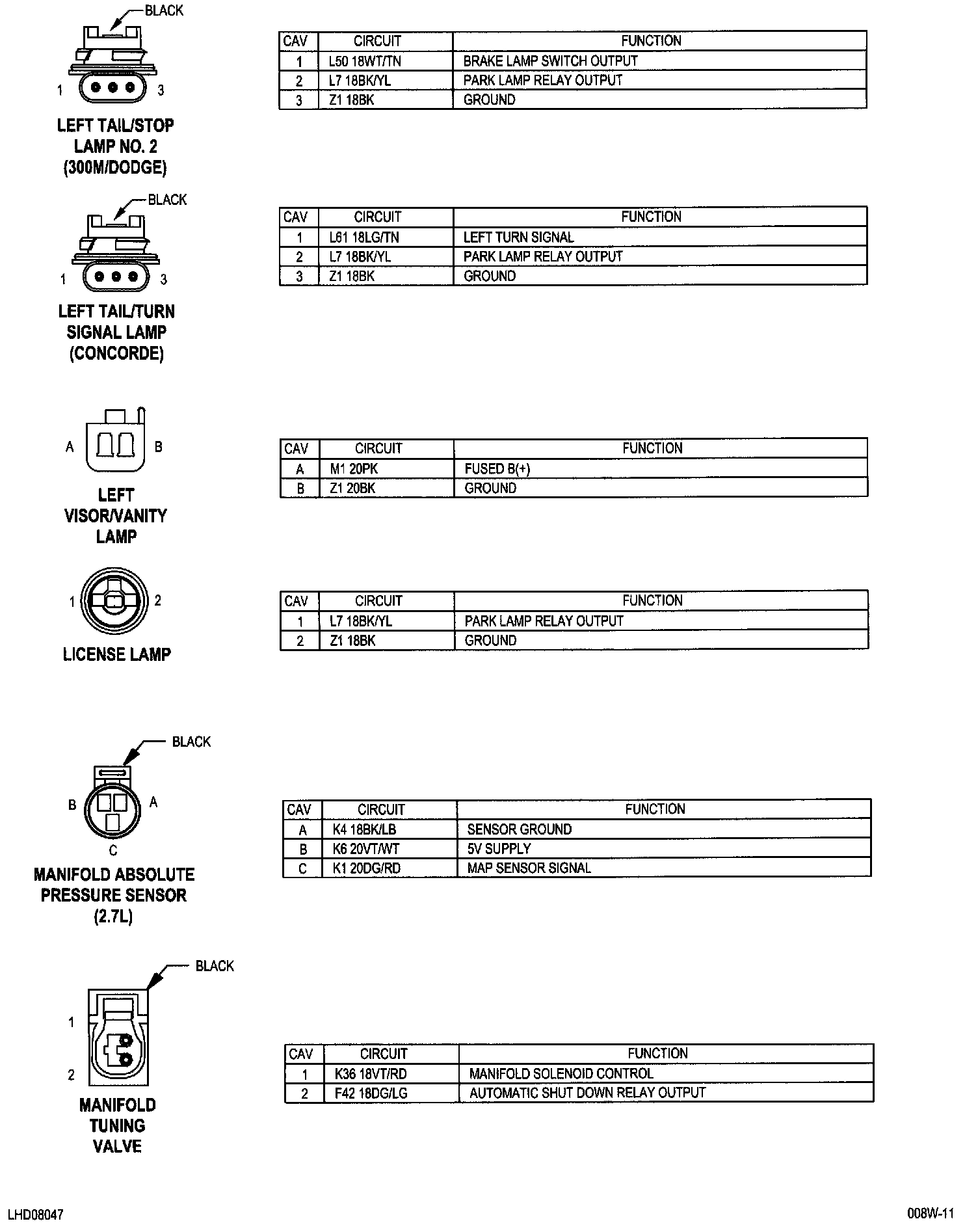

Sheet 8W-80-47
Sheet 8W-80-47
8W-80-47:
