All Outputs Shorted

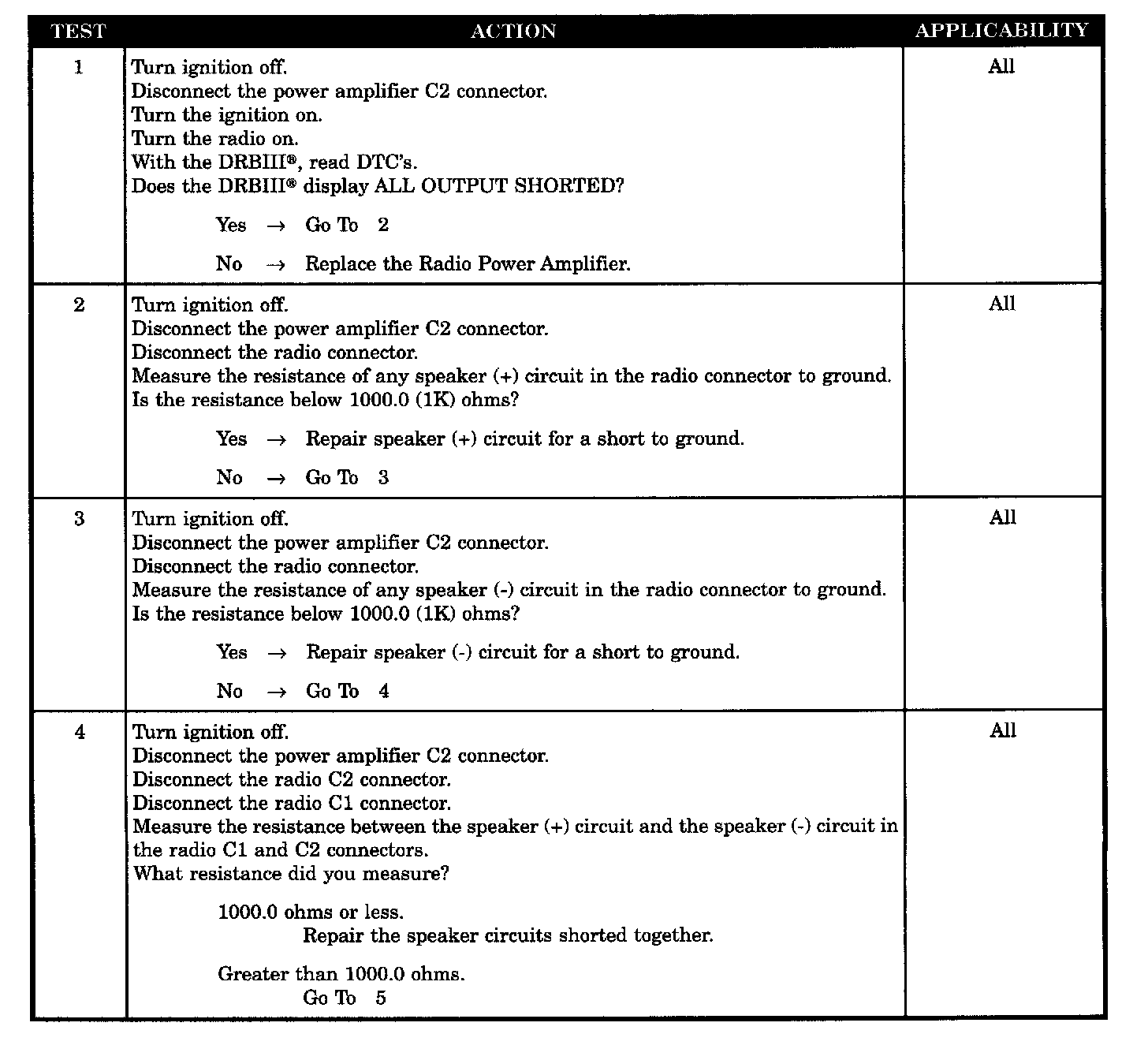

Test 1 - 4:

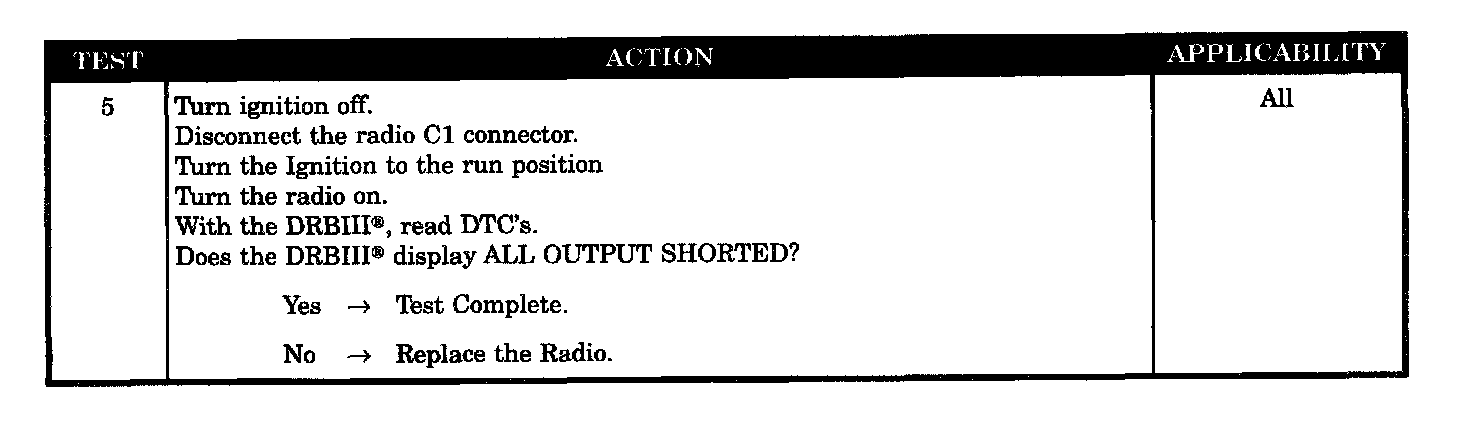

Test 5:

SYMPTOM
ALL OUTPUTS SHORTED

POSSIBLE CAUSES
- (+) circuit shorted to ground
- (-)circuit shorted to ground
- Speaker (+) & (-) circuits shorted together
- Speaker section of power amplifier
- Speaker section of radio
