No Sound From Center Instrument Panel Speaker

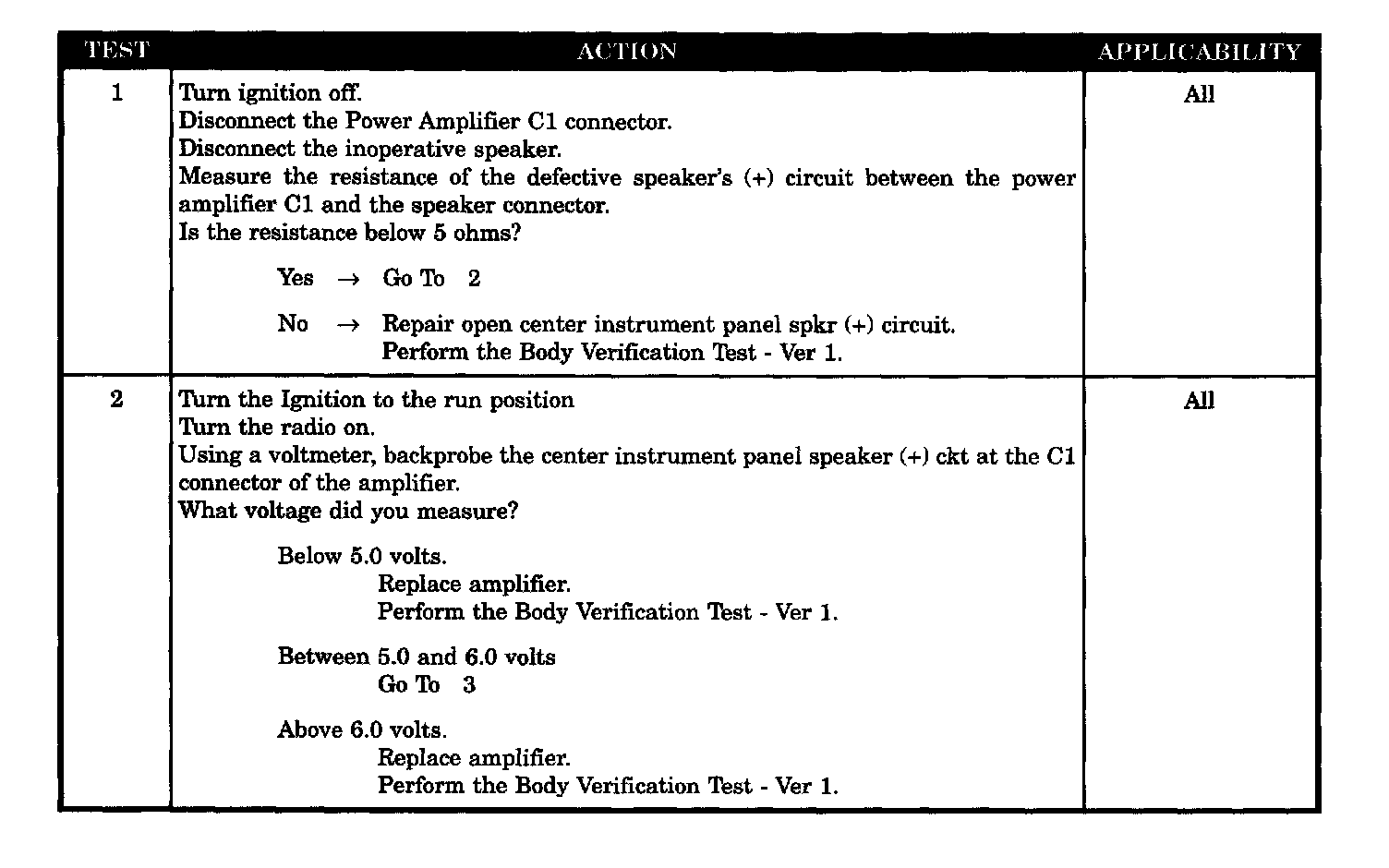

Test 1 - 2:

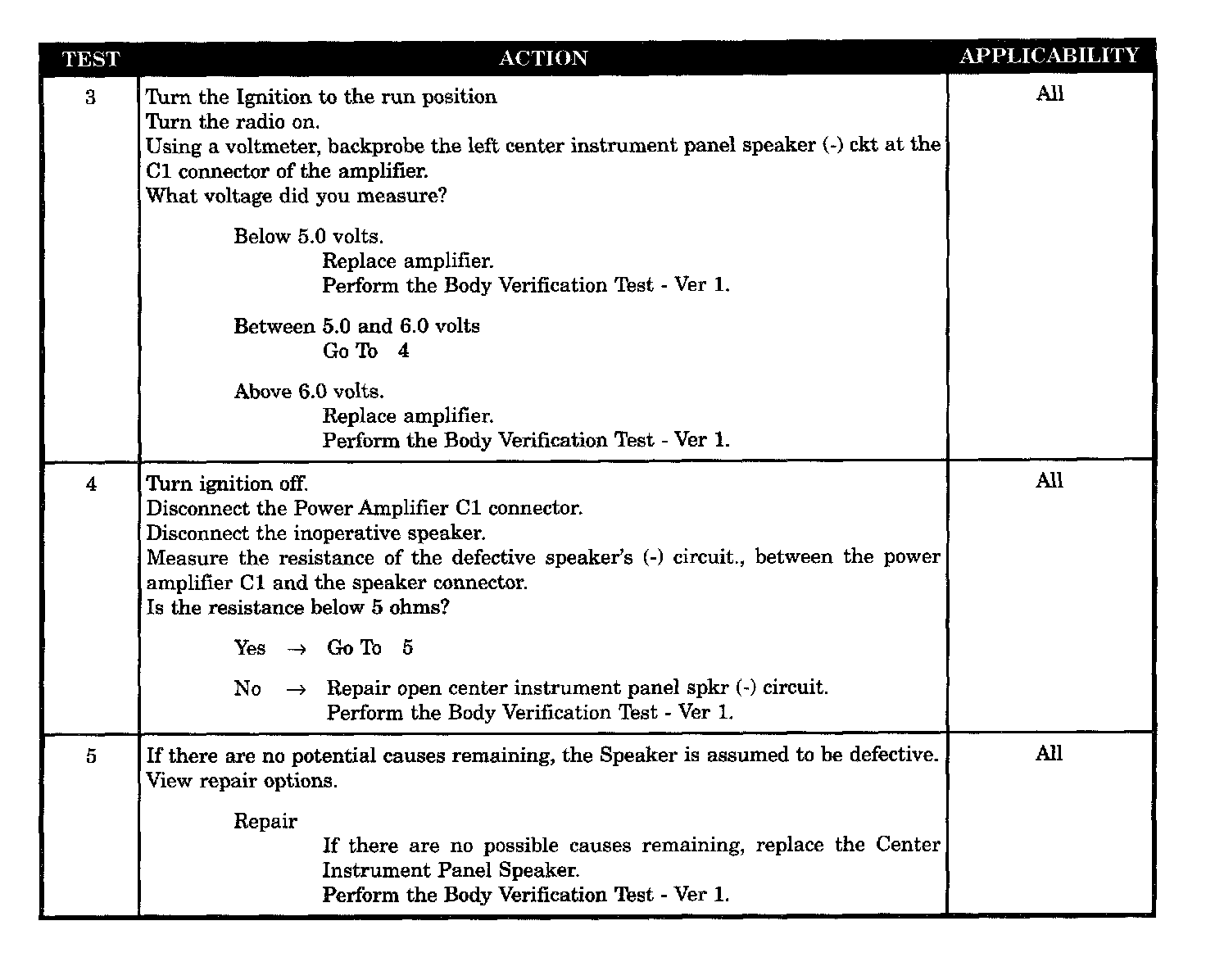

Test 3 - 5:

SYMPTOM
NO SOUND FROM CENTER INSTRUMENT PANEL SPEAKER

TEST NOTE
This symptom is diagnosed using the test NO SOUND FROM CENTER INSTRUMENT PANEL SPEAKER.

POSSIBLE CAUSES
- Center instrument panel speaker
- Center instrument panel speaker (+) CKT. open
- Center instrument panel SPKR (+) section of amplifier
- Center instrument panel SPKR (-) section of amplifier
- Center instrument panel SPKR (-) CKT. open
