ATC A/C Clutch Inoperative
ATC A/C Clutch Inoperative

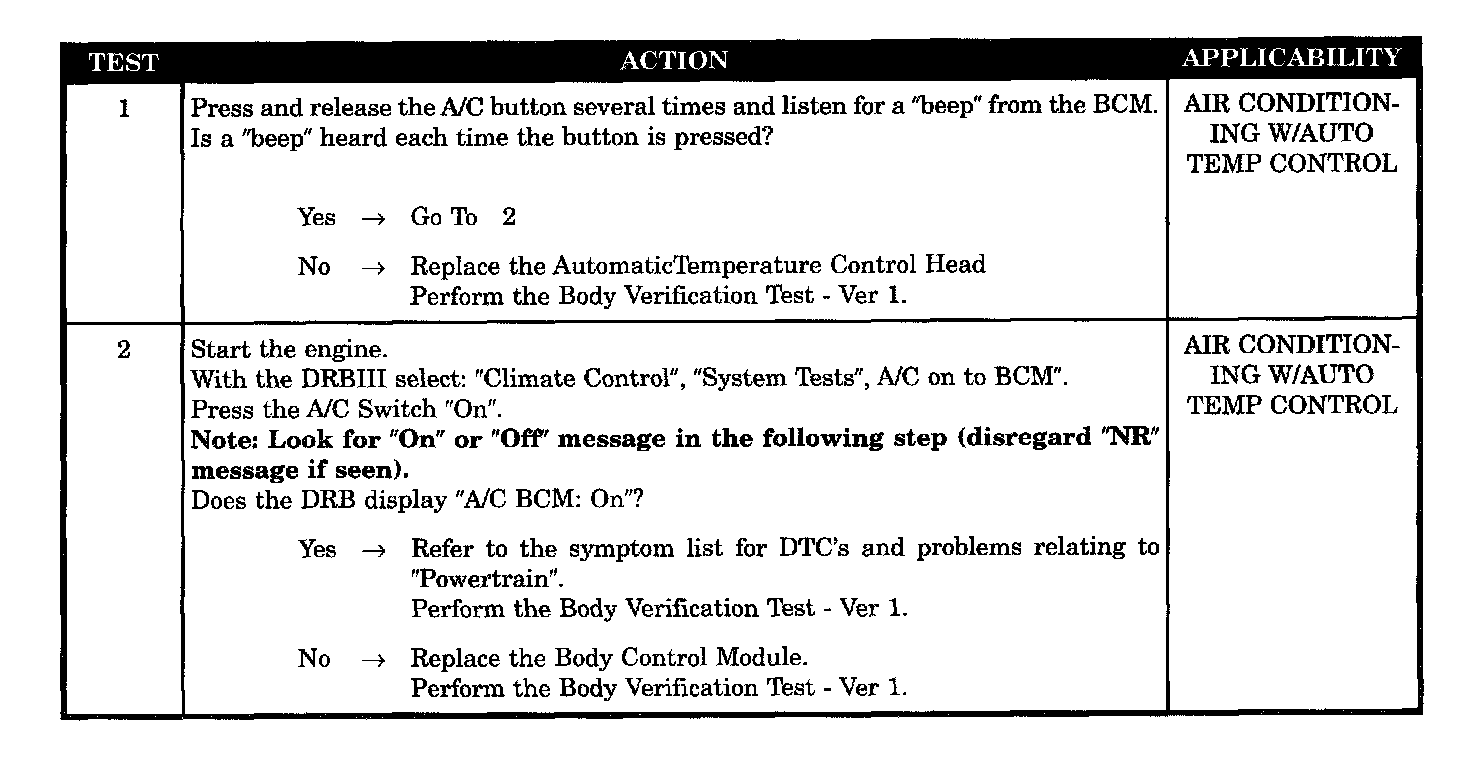

Test 1 - 2:
SYMPTOM
ATC A/C CLUTCH INOPERATIVE
POSSIBLE CAUSES
-
BCM okay
-
Body control module - A/C message
-
Automatic TEMP control head-A/C button
