Courtesy Lamps Inoperative From Left Rear Door

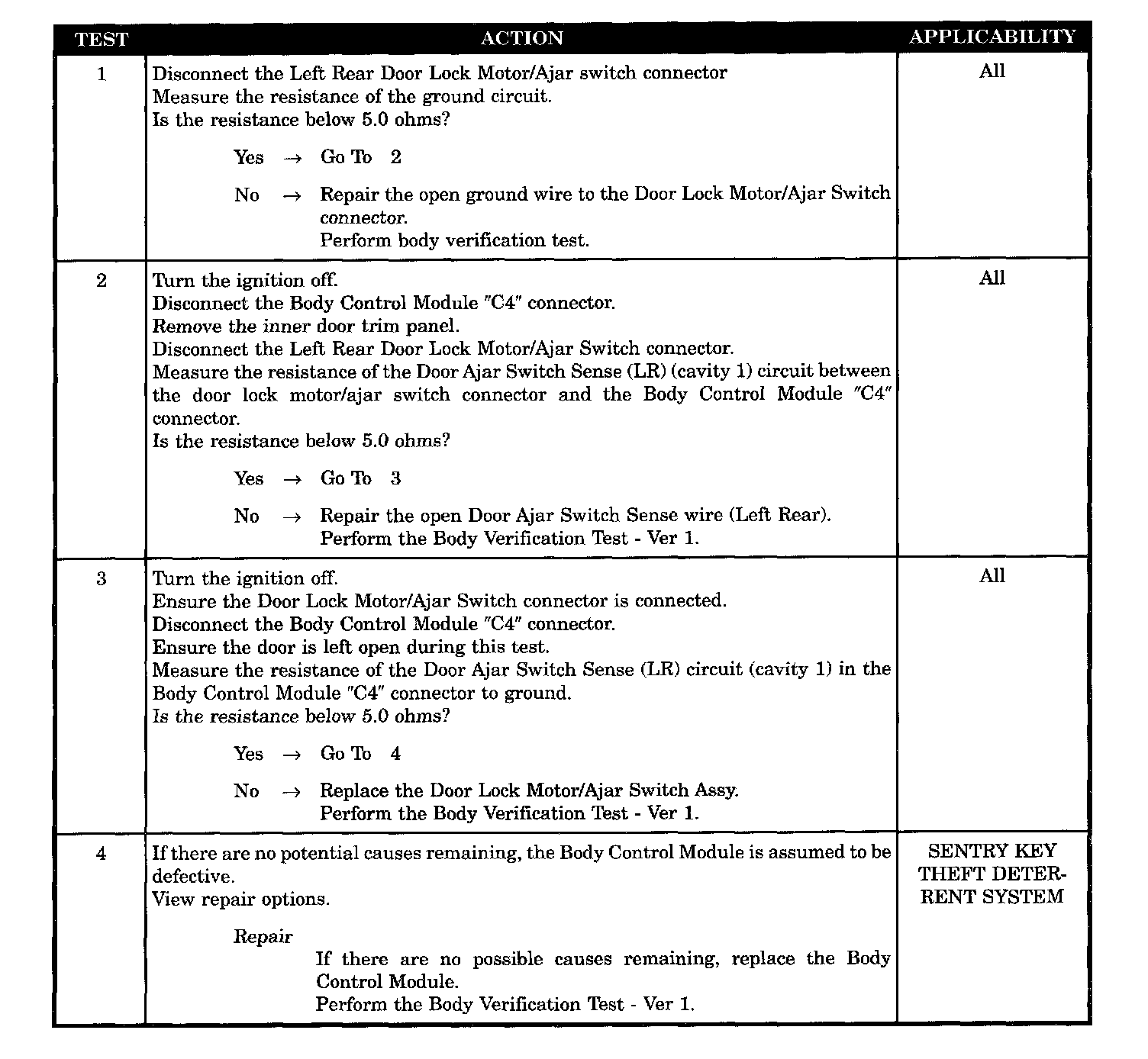

Test 1 - 4:




SYMPTOM
COURTESY LAMPS INOPERATIVE FROM LEFT REAR DOOR

POSSIBLE CAUSES
- Open ground wire
- Open door ajar switch sense (left rear)
- Body control module defective (ajar switch open)
- Defective left rear door ajar switch
