Memory Switch Inoperative

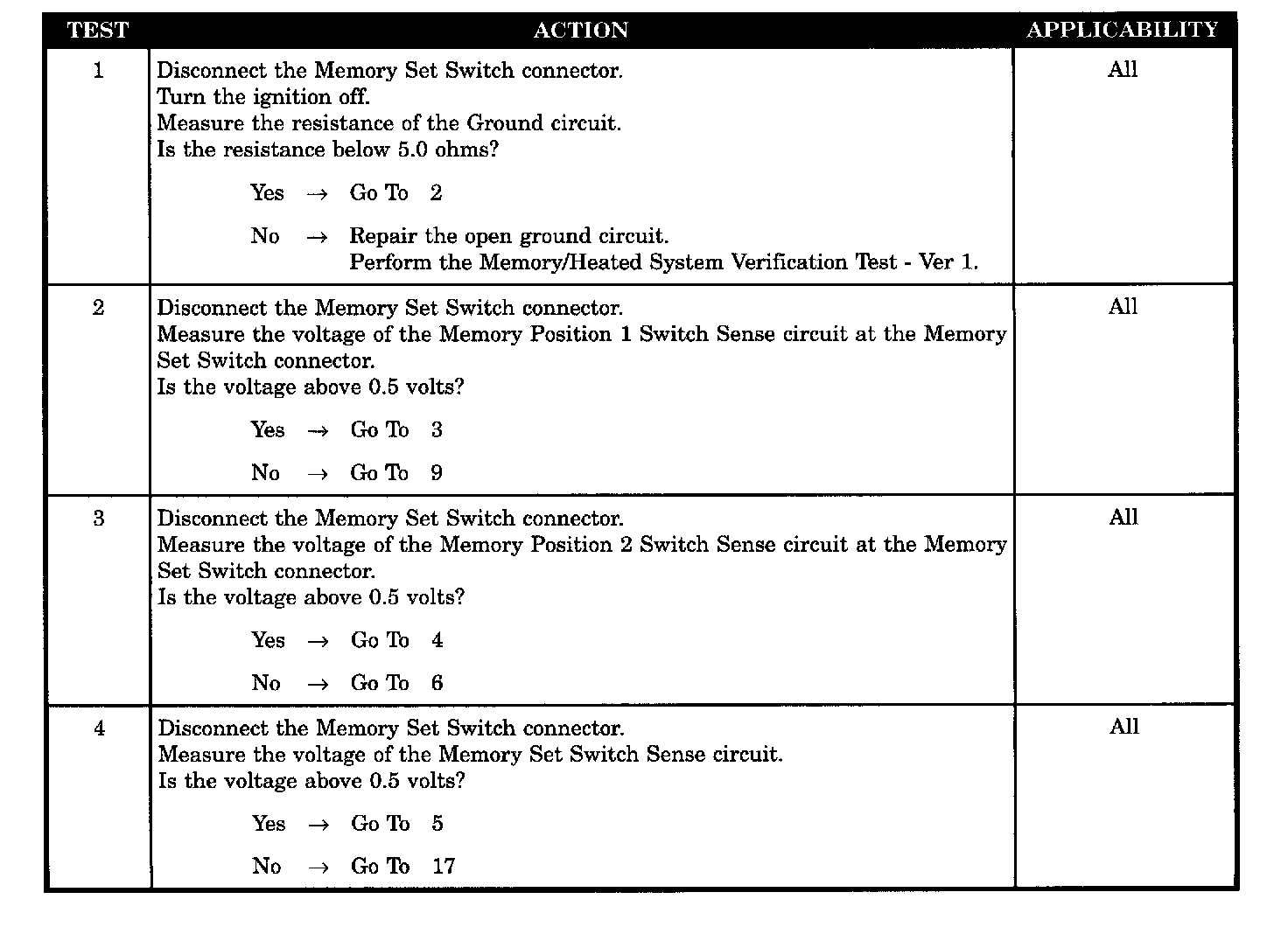

Test 1 - 4:

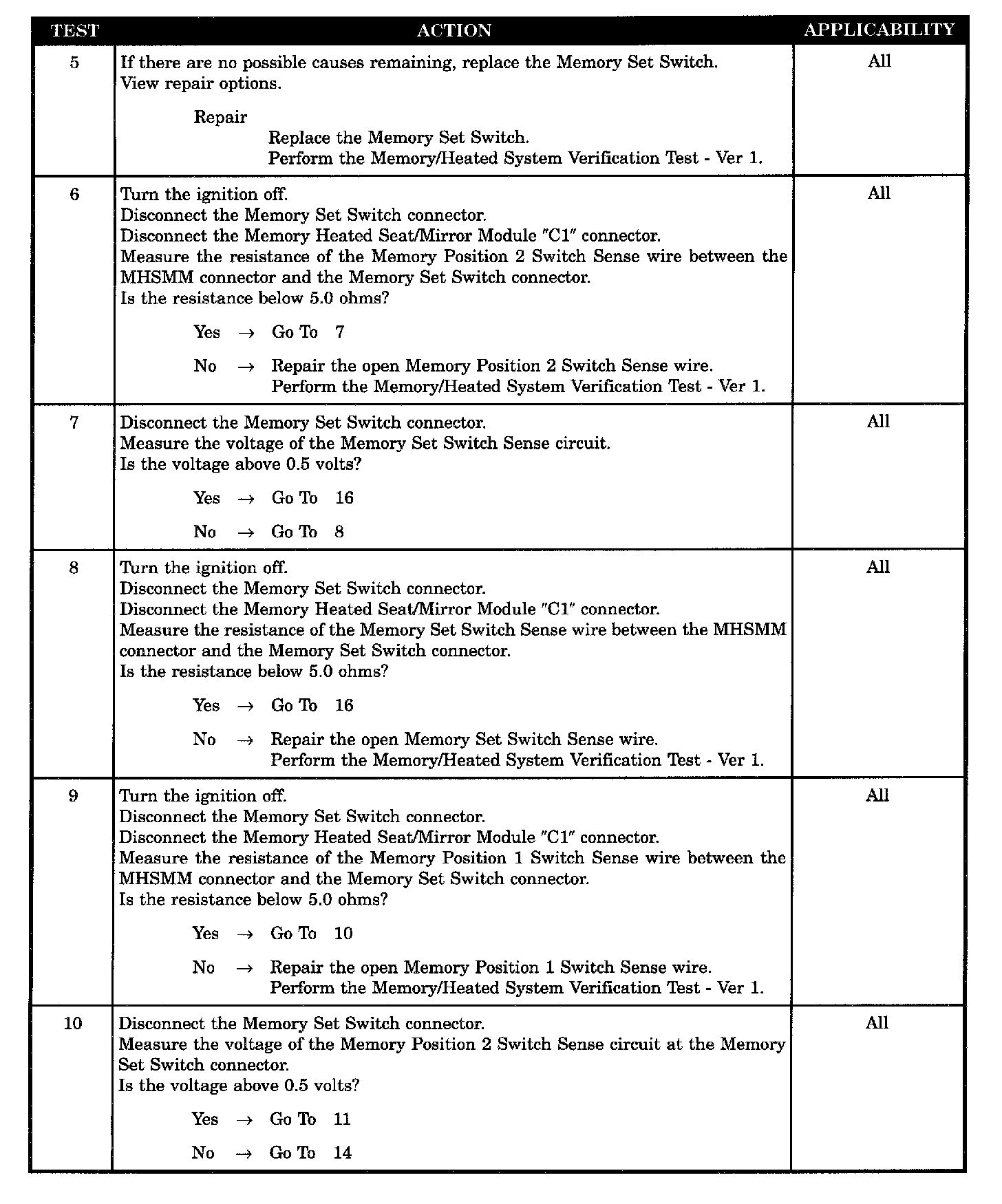

Test 5 - 10:

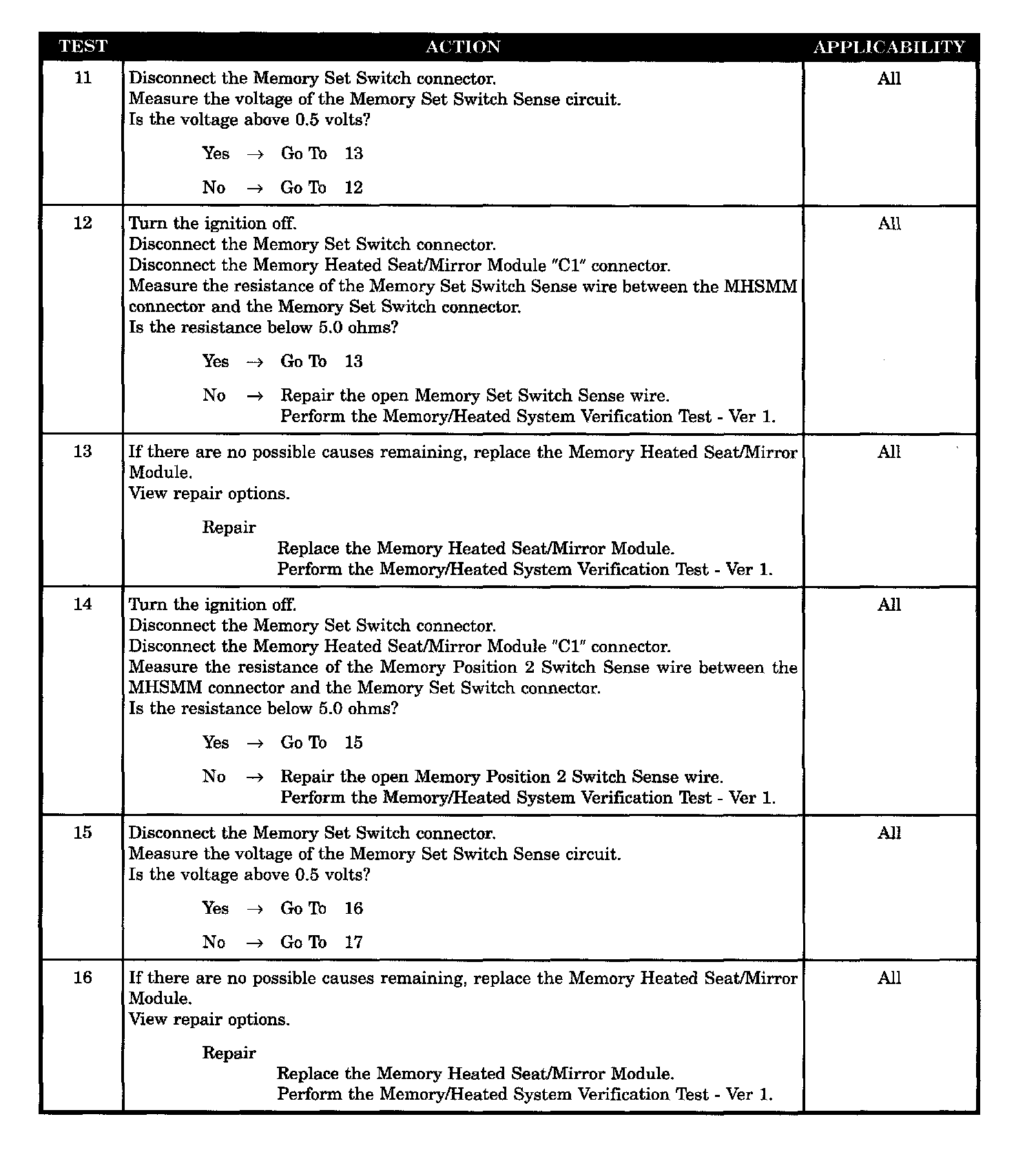

Test 11 - 16:

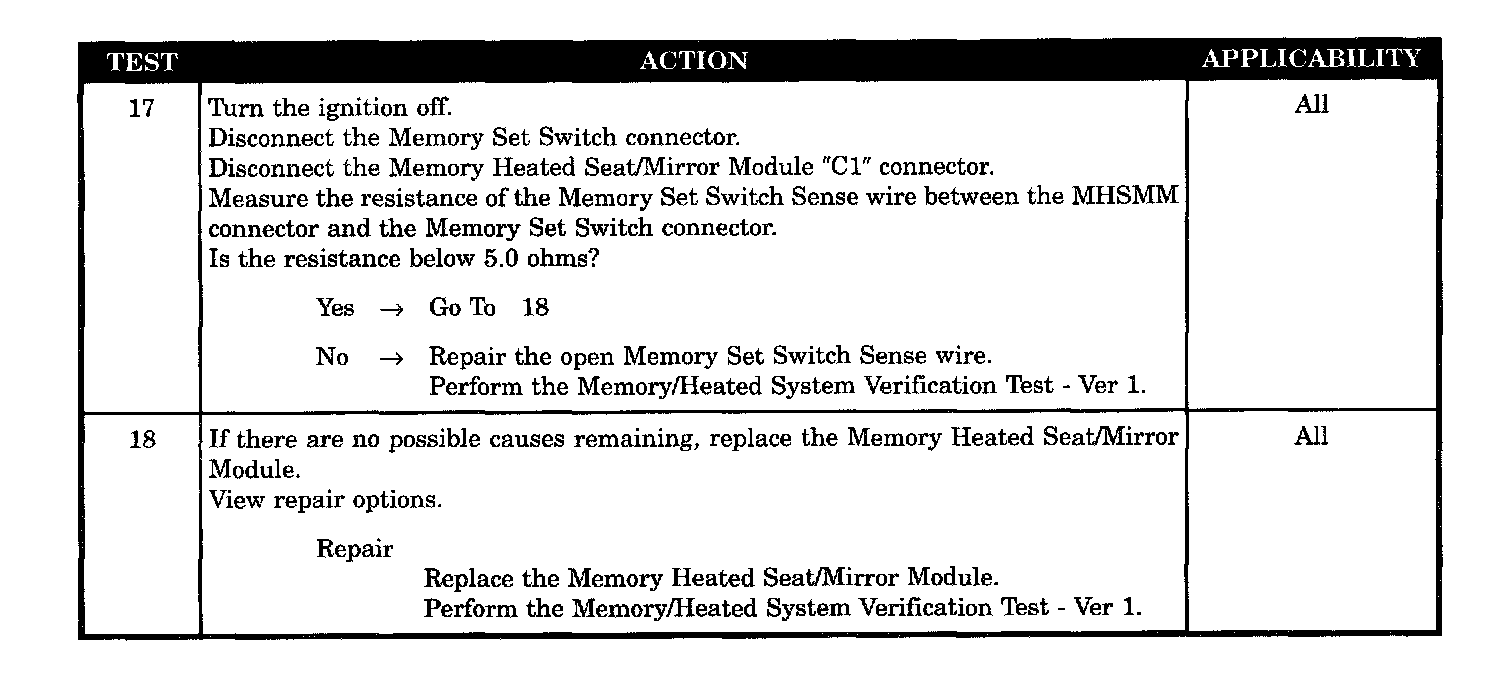

Test 17 - 18:

SYMPTOM
MEMORY SWITCH INOPERATIVE

POSSIBLE CAUSES
- Ground Circuit Open
- Memory Position 1 Switch Sense Wire Open
- Memory Position 2 Switch Sense Circuit Open
- Memory Set Switch Sense Wire Open
- Memory Set Switch
- Memory Heated Seat/Mirror Module
- Memory Heated Seat/Mirror Module
- Memory Heated Seat/Mirror Module
