Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-3.2L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Overhead Console >> OTIS Switch Test

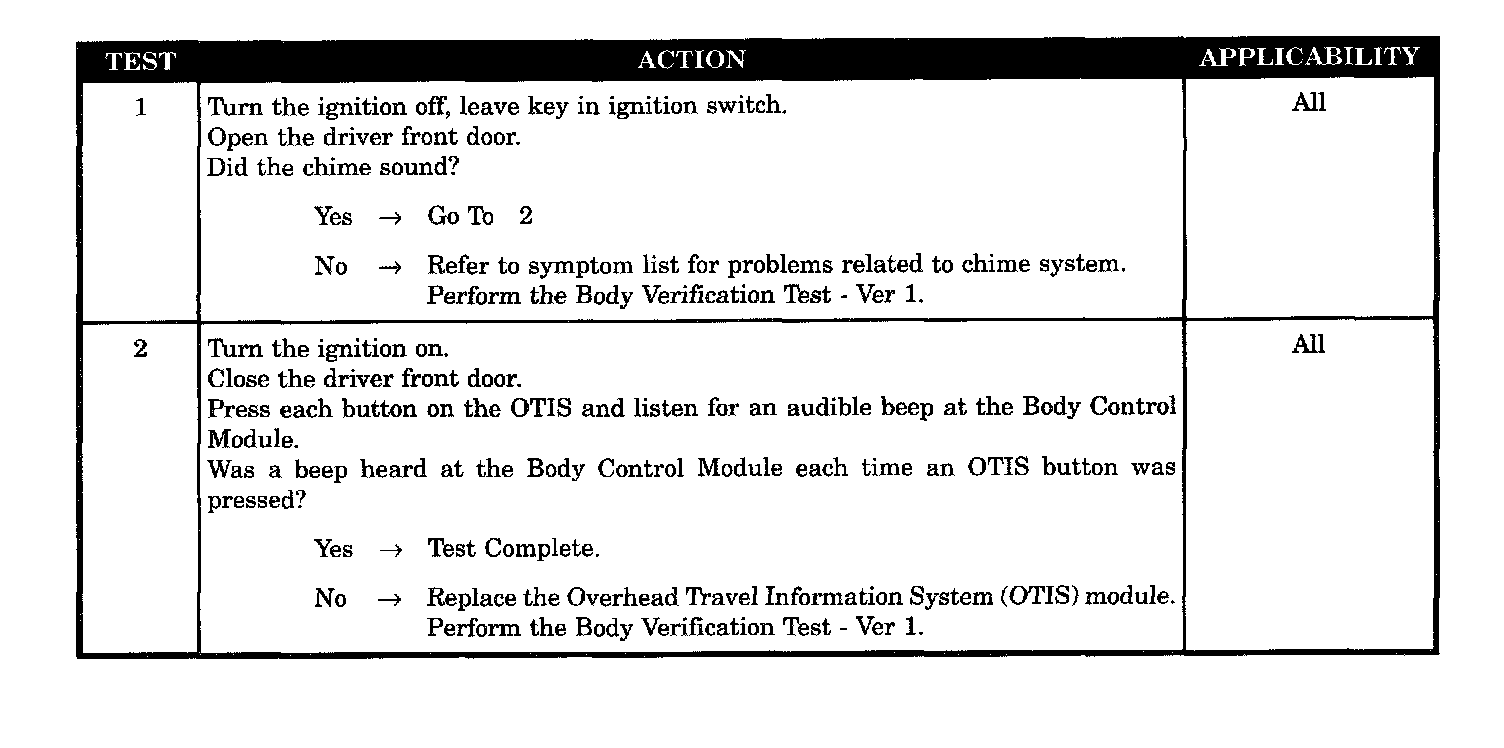

OTIS Switch Test

Test 1 - 2:




SYMPTOM
OTIS SWITCH TEST

POSSIBLE CAUSES
- Chime verification
- OTIS switches
