Driver Front Door Failing to Unlock From Any Switch

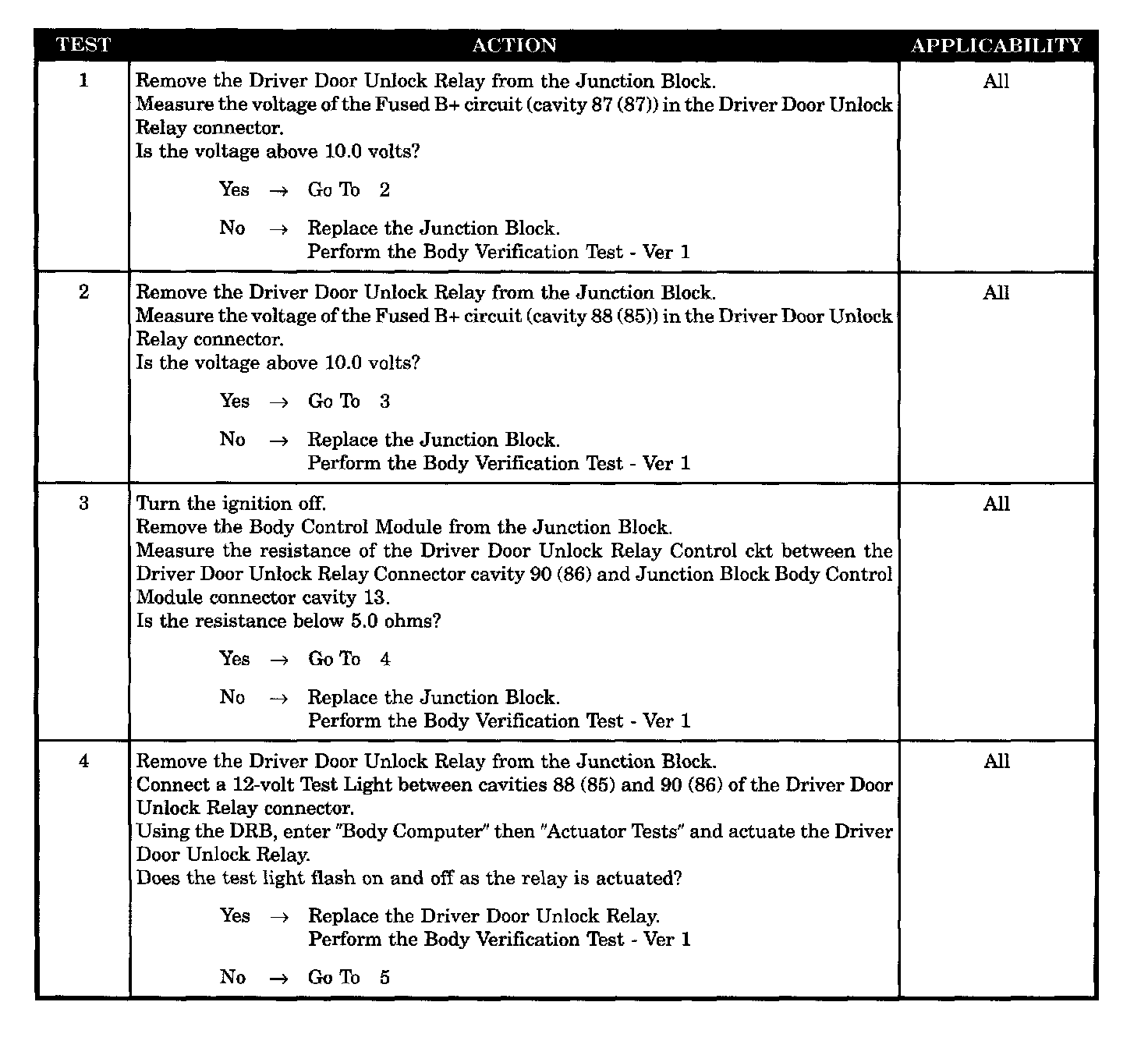

Test 1 - 4:

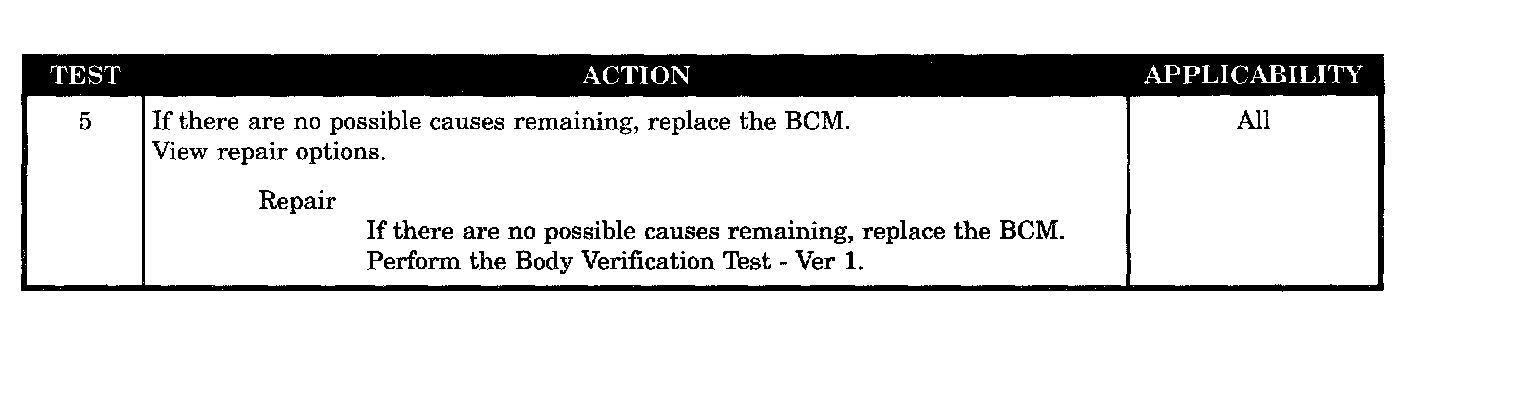

Test 5:

SYMPTOM
DRIVER FRONT DOOR FAILING TO UNLOCK FROM ANY SWITCH

POSSIBLE CAUSES
- Junction Block-driver Door Unlock Relay Control CKT Open
- Open Fused B+-switch Side Of Relay
- Body Control Module
- Check The Driver Door Unlock Relay Control Circuit
- Open Fused B+-coil Side To Relay
