Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Intrepid (CANADA) V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Group 8W-10 (Power Distribution)
>>

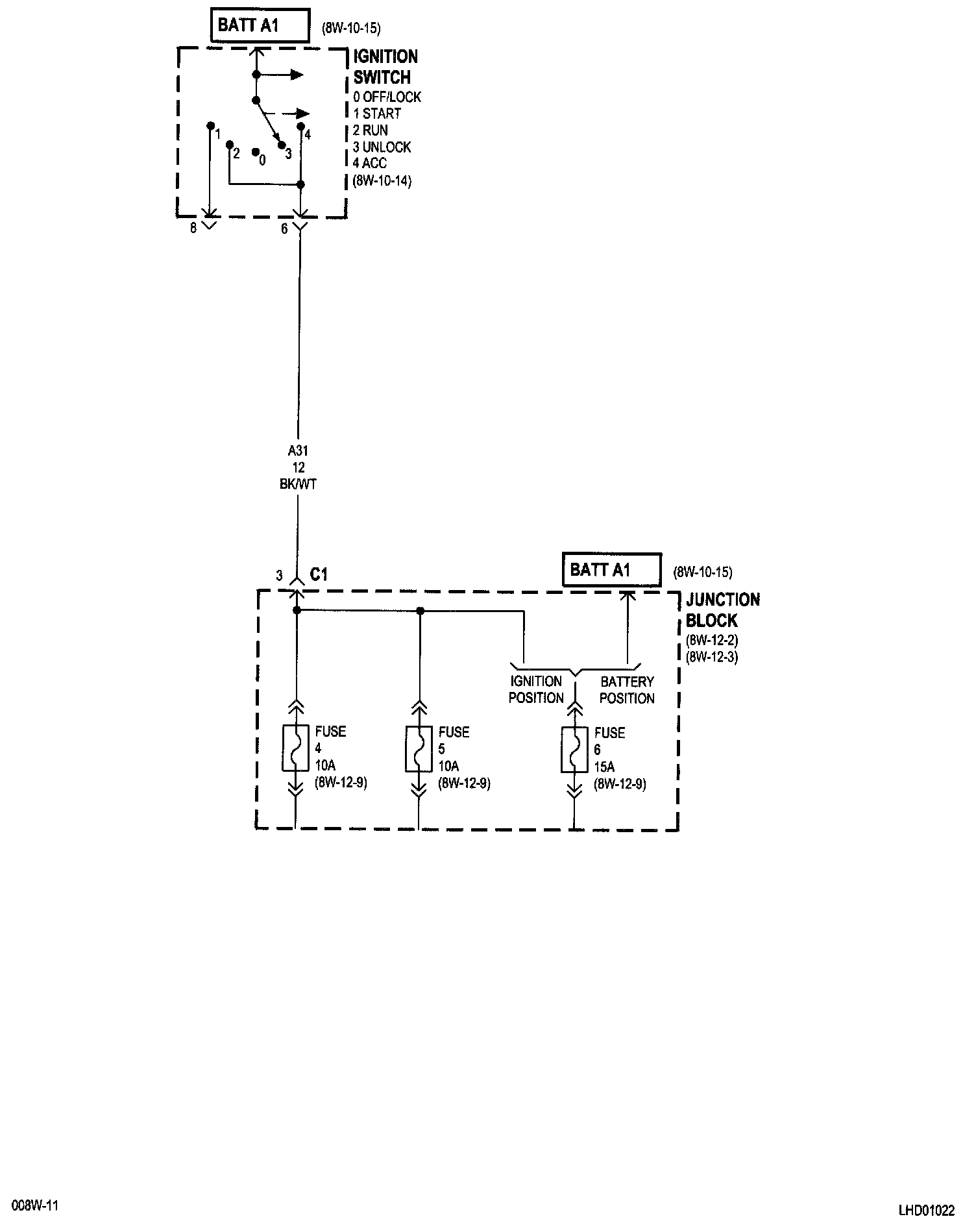

Sheet 8W-10-22
Sheet 8W-10-22
8W-10-22:
