Upper Right Trim Bezel Replacement

Negative Battery Cable Remote Terminal:

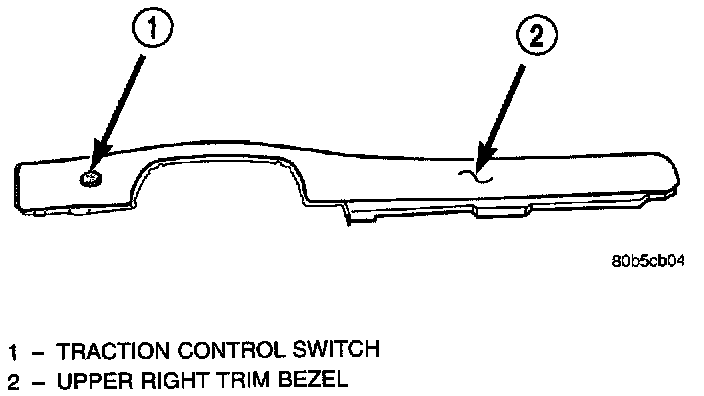

Upper Right Trim Bezel:

REMOVAL
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Using a trim stick (special tool #C-4755), gently pry out on center instrument panel bezel.
3. Open glove box and remove four screws along bottom edge of trim bezel.
4. Remove one screw in center bezel area.
5. Loosen the lower right edge of steering column cover, then loosen upper right corner of steering column cover.
6. Using a trim stick, gently pry bezel away from the instrument panel and disconnect the traction control switch connector.
7. Remove upper right trim bezel from vehicle.

INSTALLATION
1. For installation, reverse the above procedures.
