Checking Minimum Idle Airflow
Checking Minimum Idle Airflow

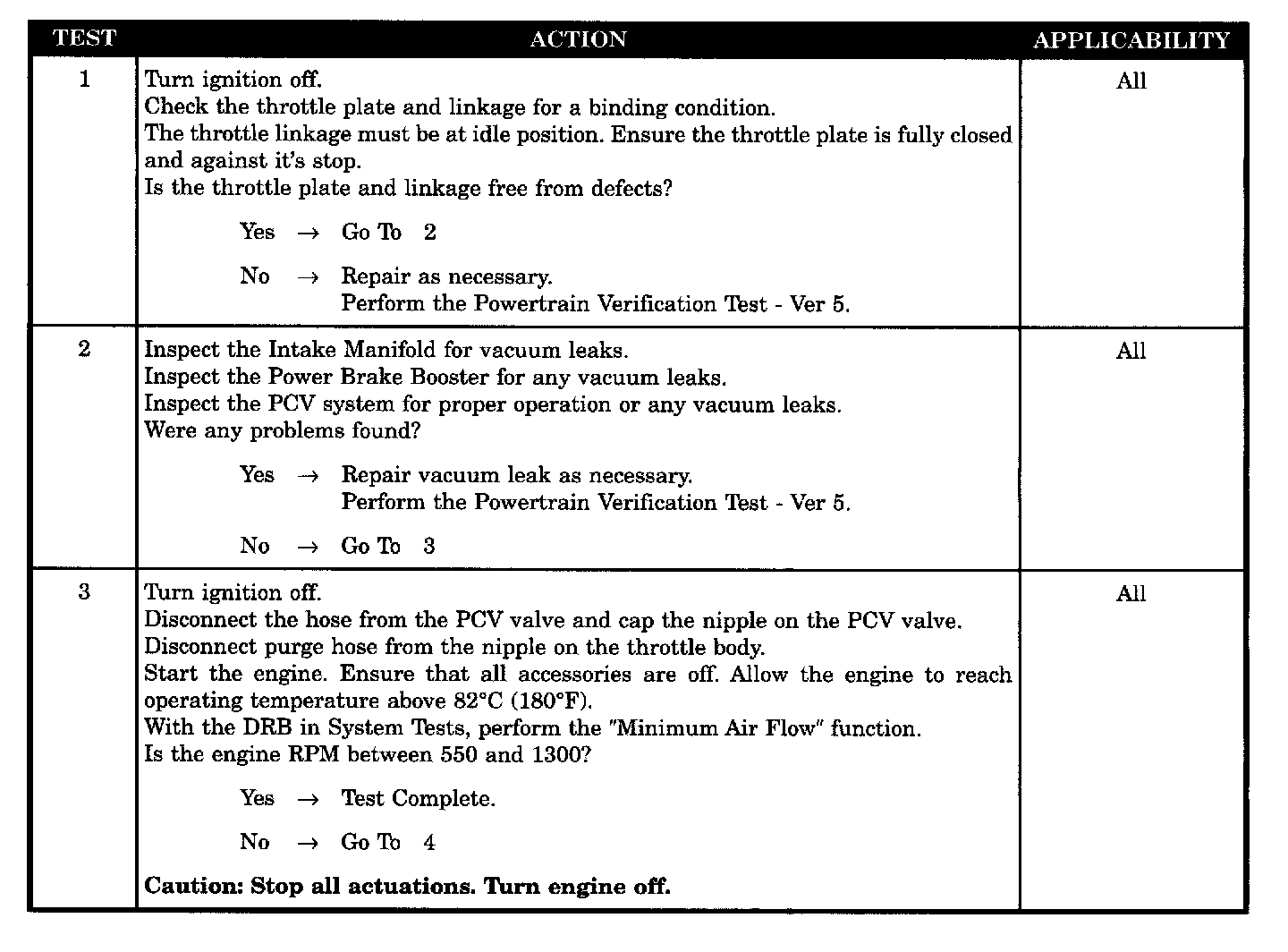

Tests 1 - 3:
Test 4:
SYMPTOM
CHECKING MINIMUM IDLE AIRFLOW
POSSIBLE CAUSES
-
Throttle body
-
Throttle plate/linkage binding
-
Vacuum leak
-
Throttle body
dirty
