Removal and Installation

NOTE: Before proceeding, review SERVICE WARNINGS AND CAUTIONS found under Service Precautions.

REMOVAL






1. Remove the battery ground cable from the ground stud on the shock tower and isolate the ground cable by installing the cable isolator on the ground stud.

NOTE: The following step should be done to prevent excessive spilling of power steering fluid when the power steering fluid lines are removed from the power steering pump.

2. Using a siphon pump, remove as much power steering fluid as possible from the power steering fluid reservoir.
3. Raise vehicle.

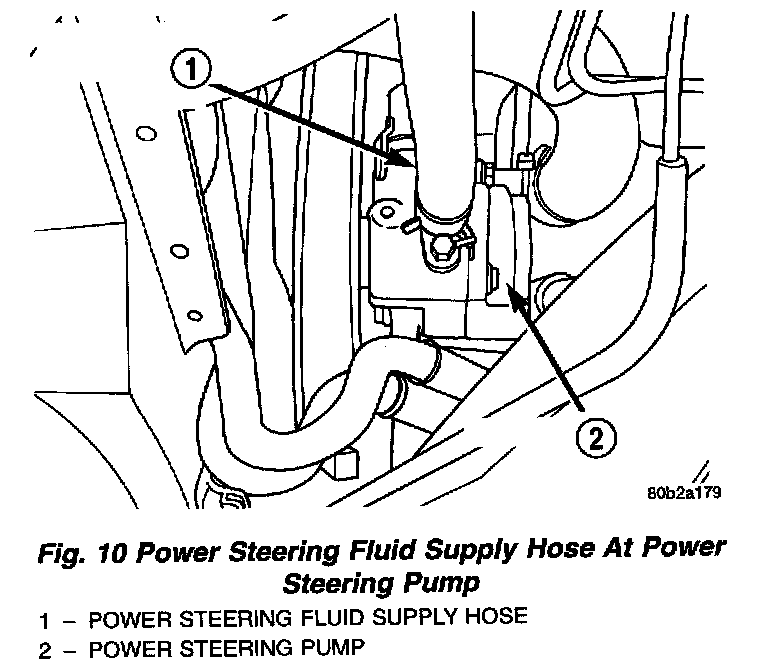

4. Remove the power steering fluid supply hose from the supply fitting on the power steering pump.
5. Let power steering fluid drain from the power steering fluid reservoir and power steering pump.
6. Install a cap on the open nipple of the power steering fluid reservoir to prevent power steering fluid from spilling when removing the power steering pump.

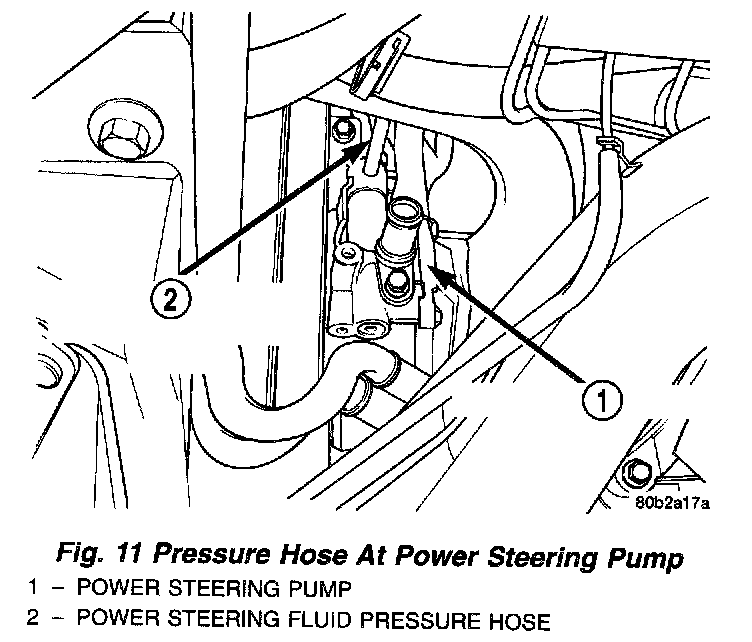

7. Remove the power steering fluid pressure hose from the pressure fitting on the power steering pump.
8. Let remaining power steering fluid drain from the power steering pump.

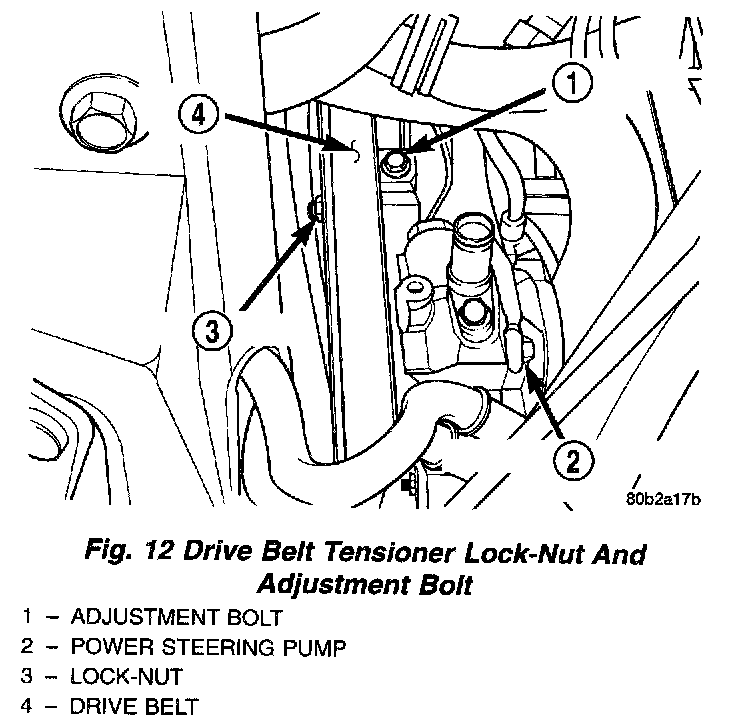

9. Loosen the lock-nut on the front of the pulley for the serpentine drive belt tensioner.
10. Using the adjustment bolt remove the tension from the drive belt for the power steering pump.
11. Remove the drive belt from the power steering pump pulley.

NOTE: Access for the power steering pump mounting bolts is through the holes in the face of the power steering pump pulley.

12. Remove the 3 bolts attaching the power steering pump to the power steering pump mounting bracket.

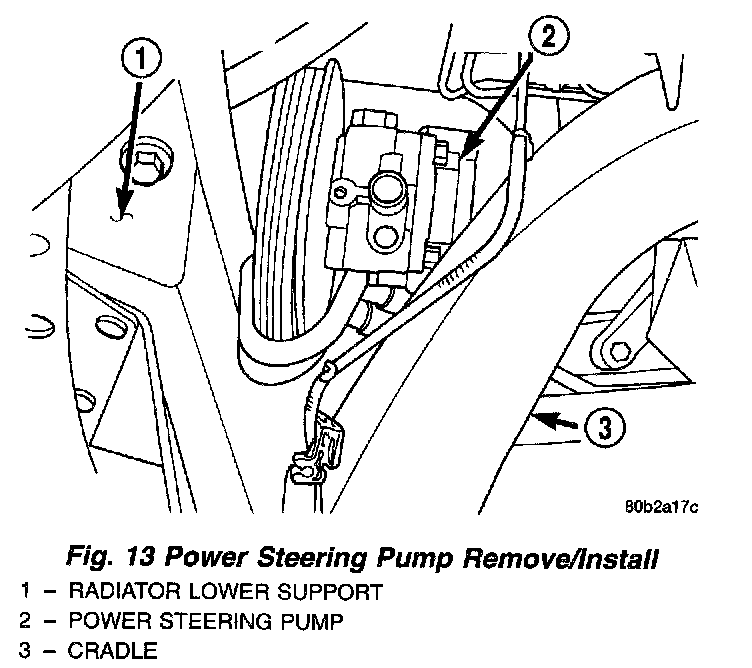

13. Remove the power steering pump from the engine. The power steering pump and pulley are removed as an assembly from the engine. The power steering pump is removed from the bottom of the engine between the radiator lower support and the cradle.
14. Transfer the required parts from the removed power steering pump to the replacement power steering pump. See Disassembly and Assembly.

INSTALLATION
1. Install the power steering pump back in the mounting bracket using the reverse sequence of its removal.
2. Loosely install all 3 bolts mounting the power steering pump to the mounting bracket.
3. Tighten the power steering pump mounting bolts to a torque of 28 Nm (250 inch lbs.).
4. Install the drive belt on the power steering pump pulley. Refer to Engine for required installation and tensioning procedure.
5. Securely tighten the lock-nut on the pulley of the drive belt tensioner.
6. Install the power steering pressure hose on the pressure fitting of the power steering pump. Tighten the power steering fluid pressure hose tube nut to a torque of 47 Nm (35 ft. lbs.).
7. Install the power steering fluid supply hose onto the supply fitting on power steering pump. When installing the hose clamp on the power steering fluid return hose be sure the clamp is installed past the upset bead on the nipple of the power steering fluid reservoir.
8. Lower vehicle.
9. Connect the battery ground cable onto the ground stud located on the strut tower.

CAUTION: Do not use automatic transmission fluid in this vehicles power steering system. Only use Mopar Power Steering Fluid, or equivalent.

10. Perform Power Steering Pump Initial Operation procedure to properly refill and bleed power steering system.
