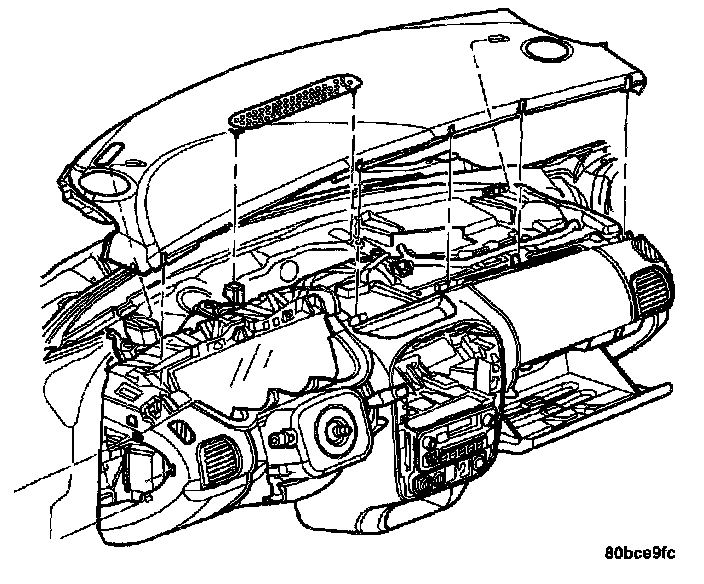

Instrument Panel Speaker(s) Replacement

REMOVAL

Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel top cover.

Instrument Panel Speakers Remove/Install:

3. Remove speaker retaining screws.
4. Remove speaker and disconnect wire connector.

INSTALLATION
For installation reverse the above procedures.
