Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>

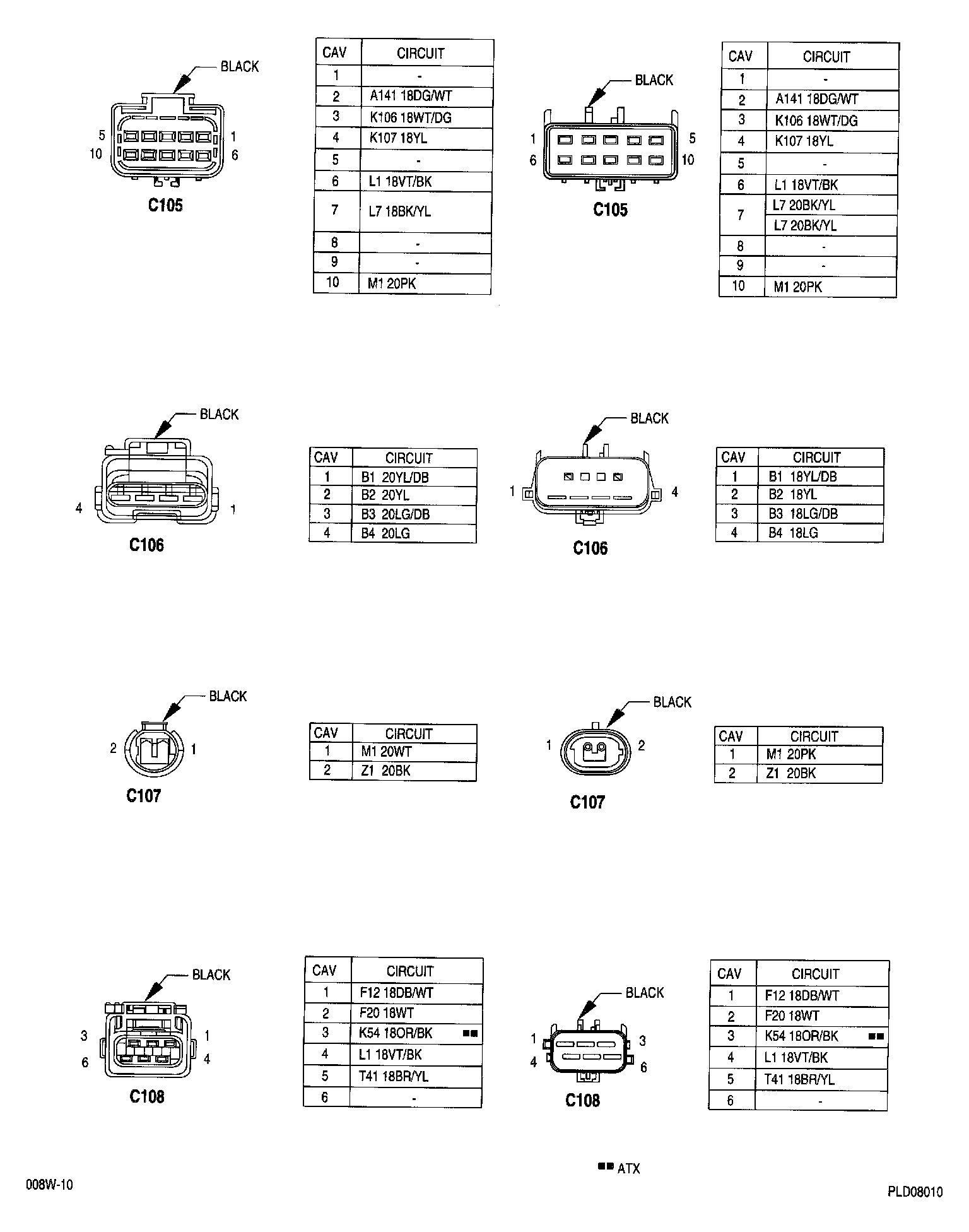

Sheet 8W-80-10
Sheet 8W-80-10
Connector Pin-Outs 8w-80-10:
