Chrysler
>>
2000
>>
Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)

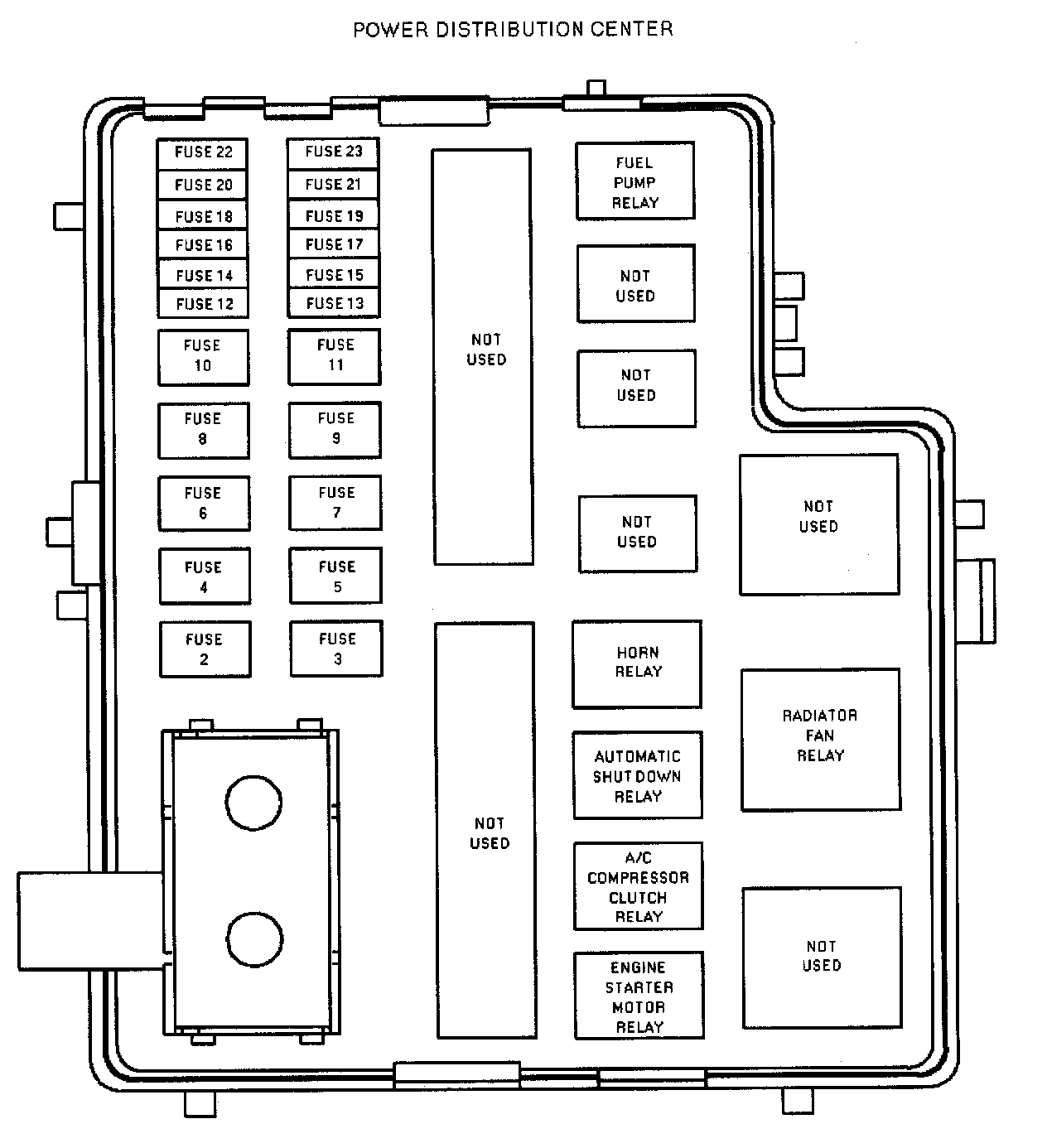

Power Distribution Center:

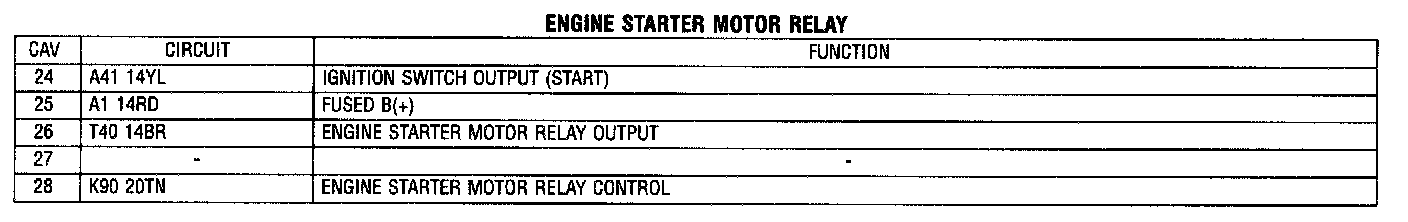

Engine Starter Motor Relay:
