Connector Views
>>
Power Door Lock Actuator
Power Door Lock Actuator

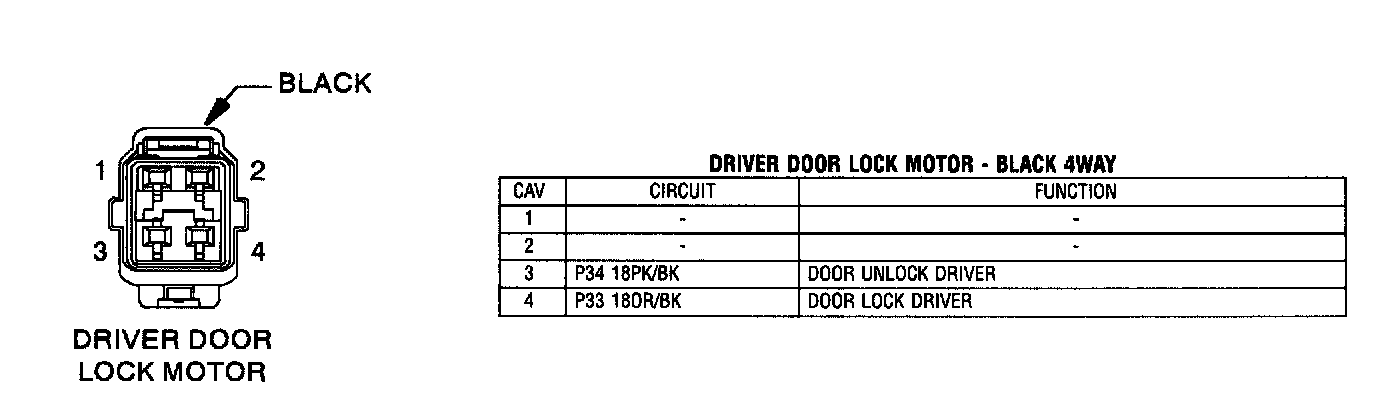

Driver Door Lock Motor:

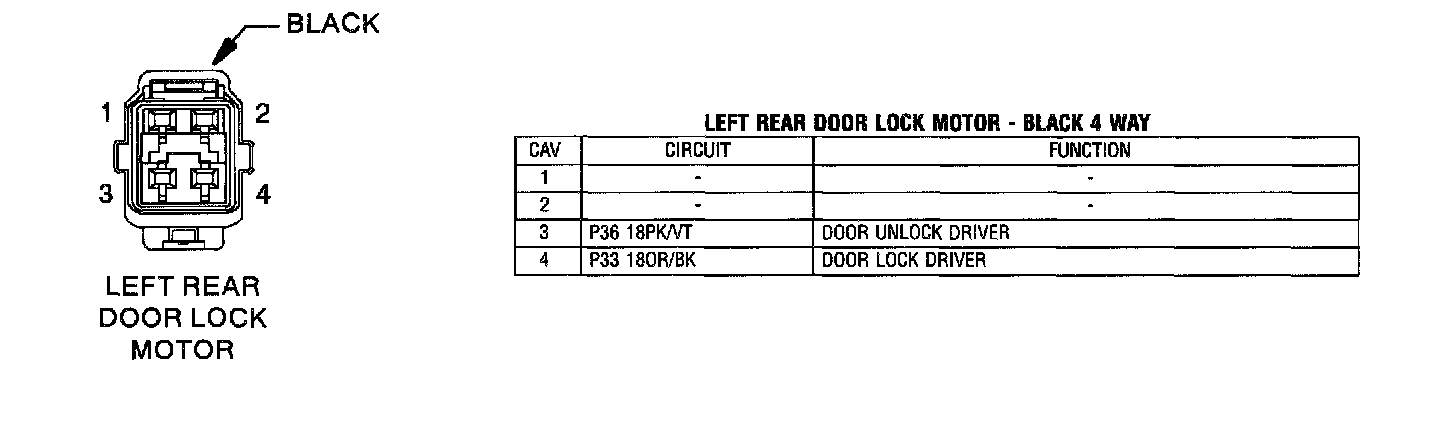

Left Rear Door Lock Motor:

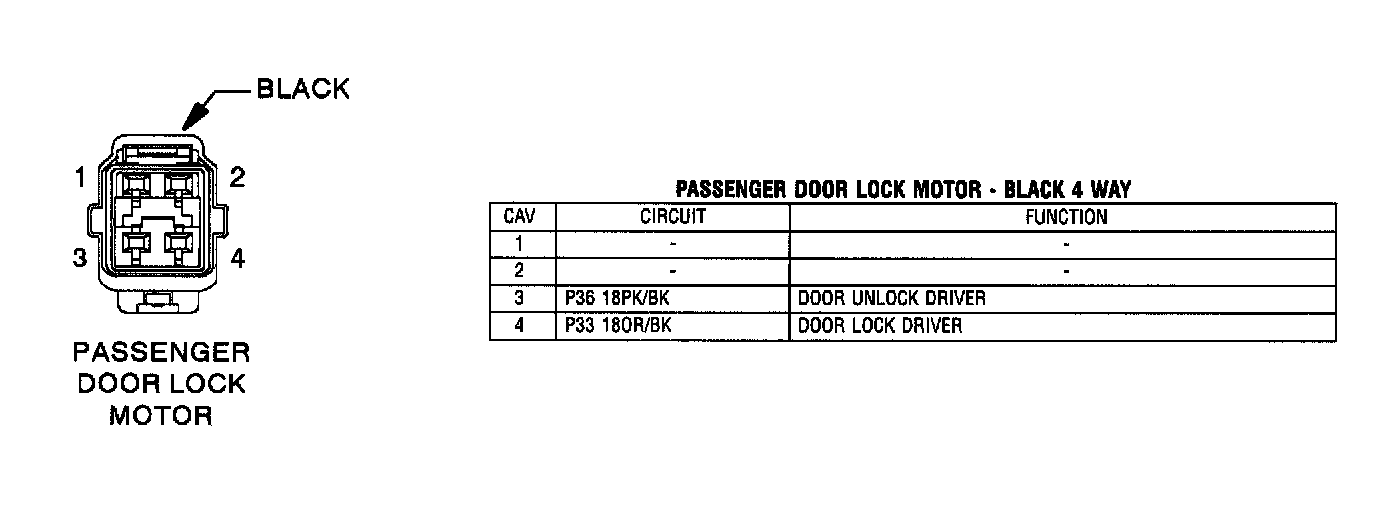

Passenger Door Lock Motor:

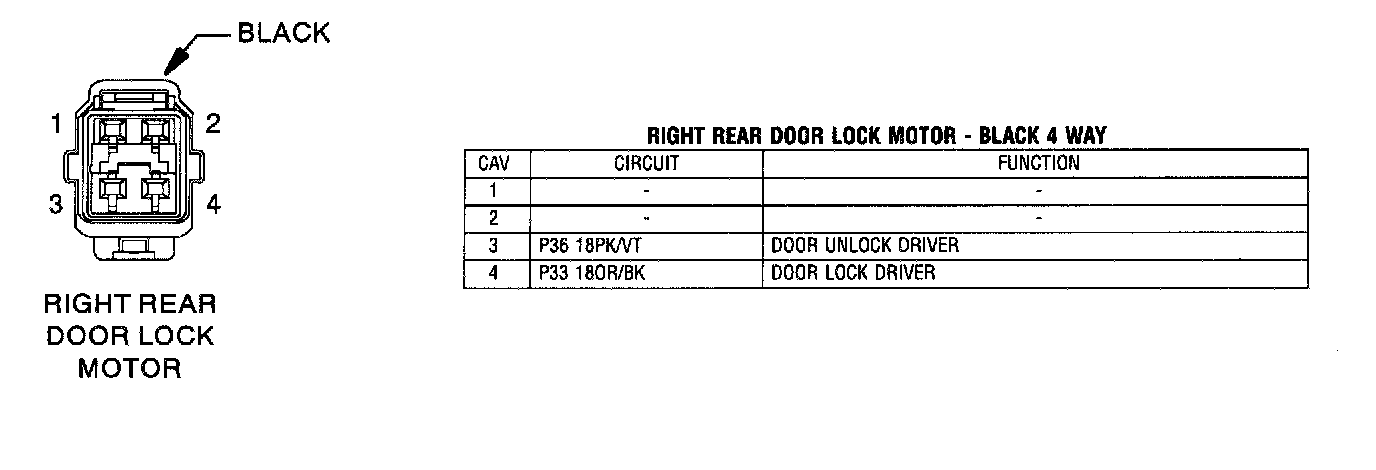

Right Rear Door Lock Motor:
