Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Circuit Breaker
Circuit Breaker

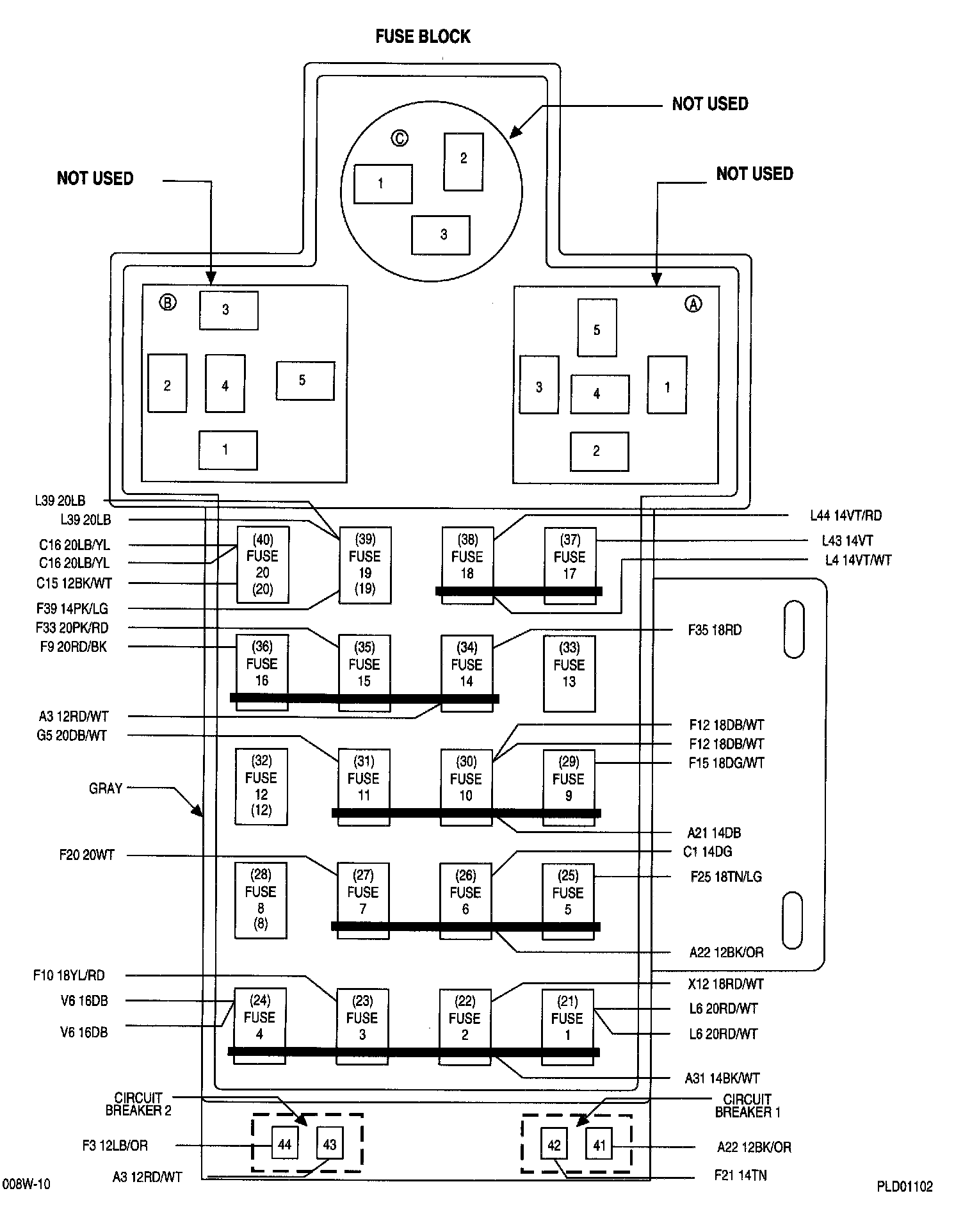

Fuse Block 8w-11-2:
