Chrysler
>>
2000
>>
Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse
Fuse

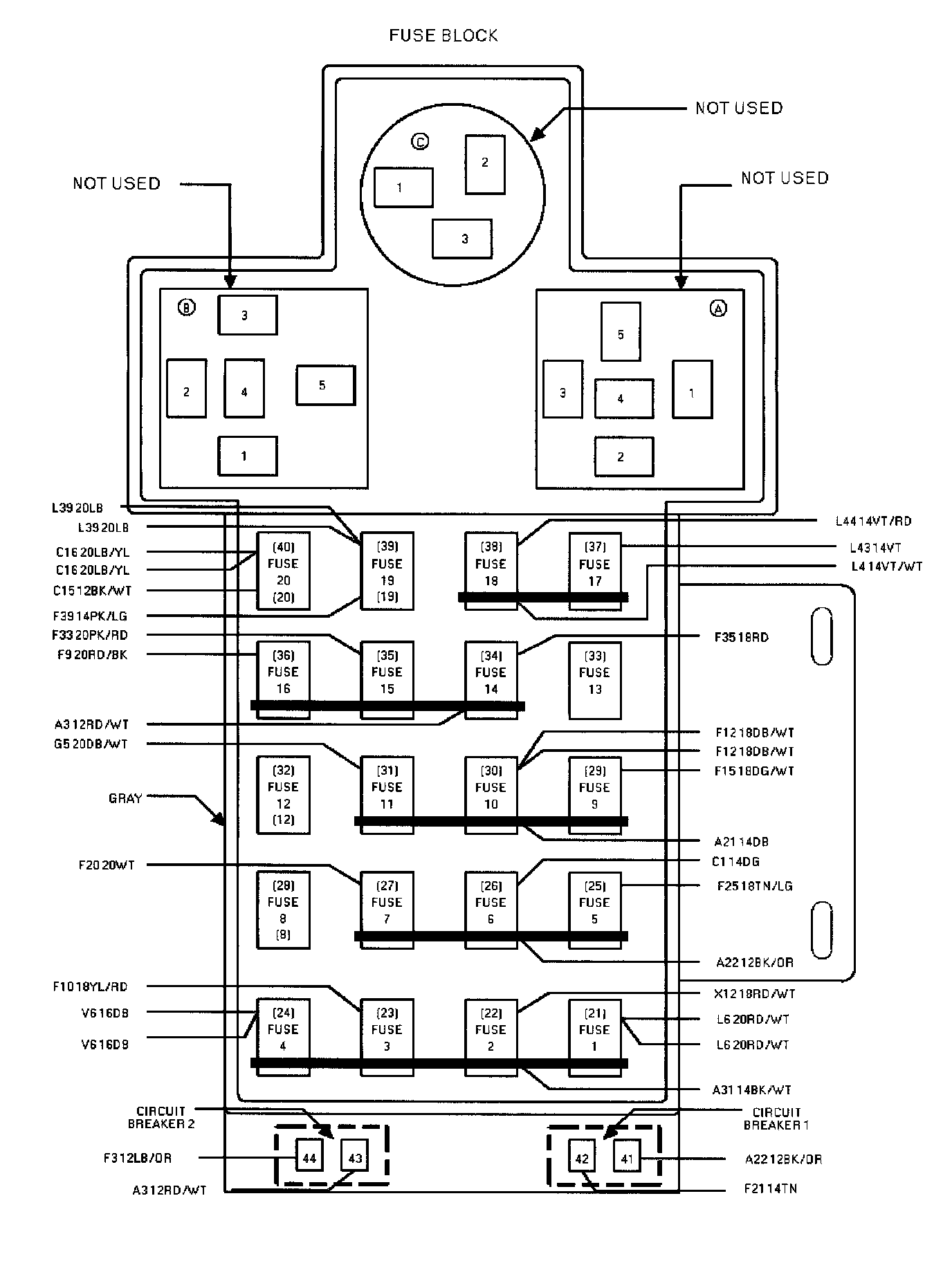

Fuse Block:

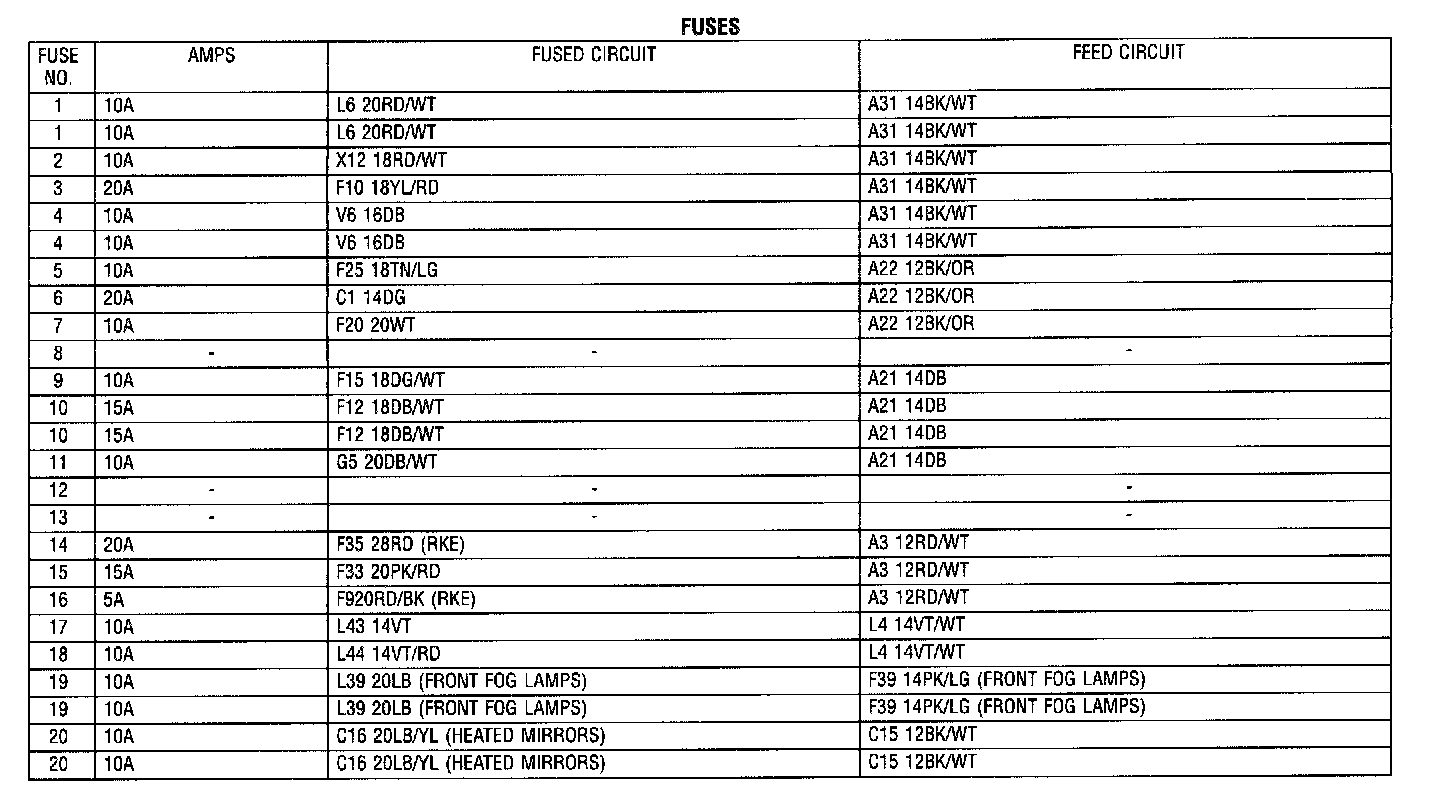

Fuses:

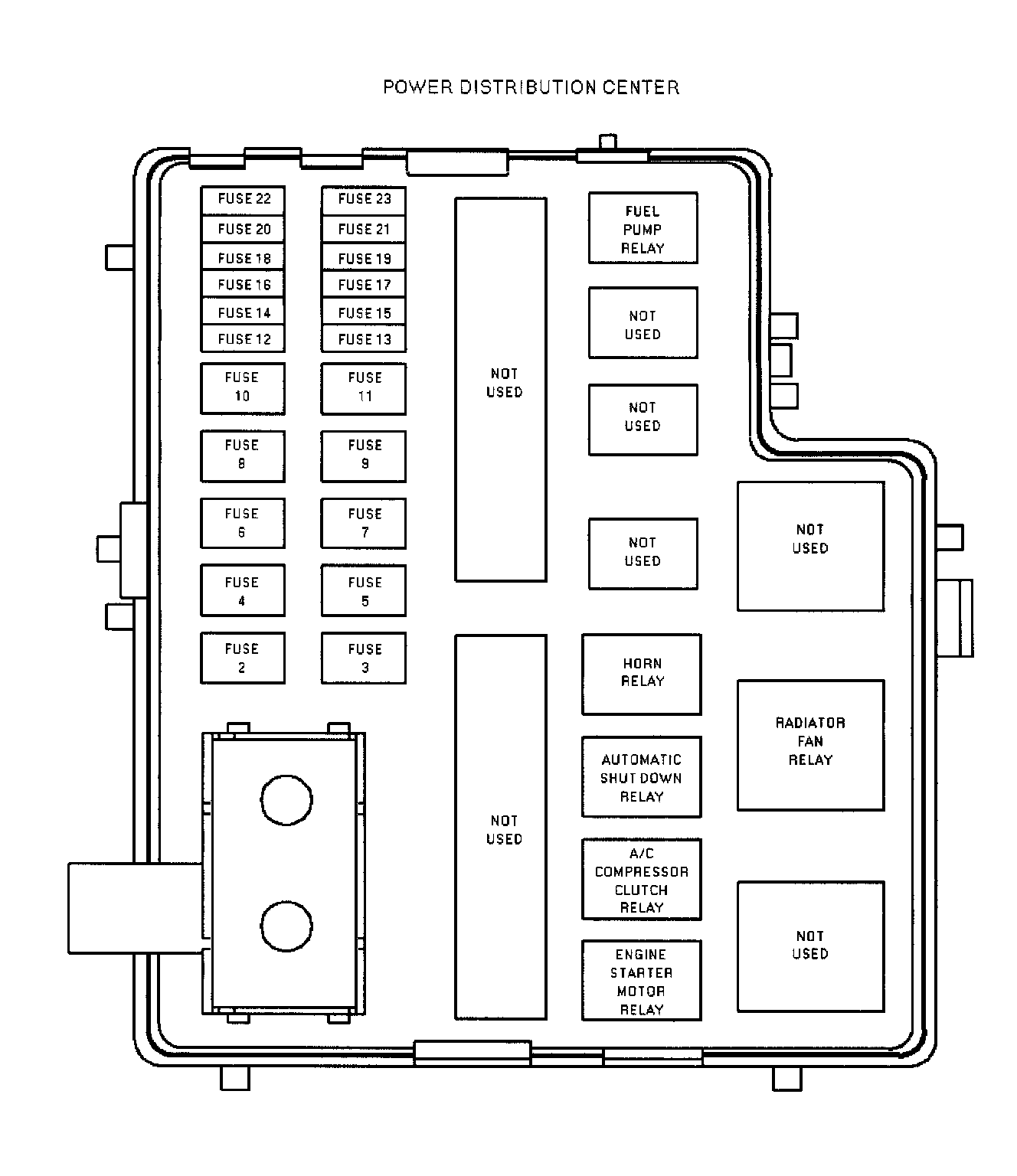

Power Distribution Center:

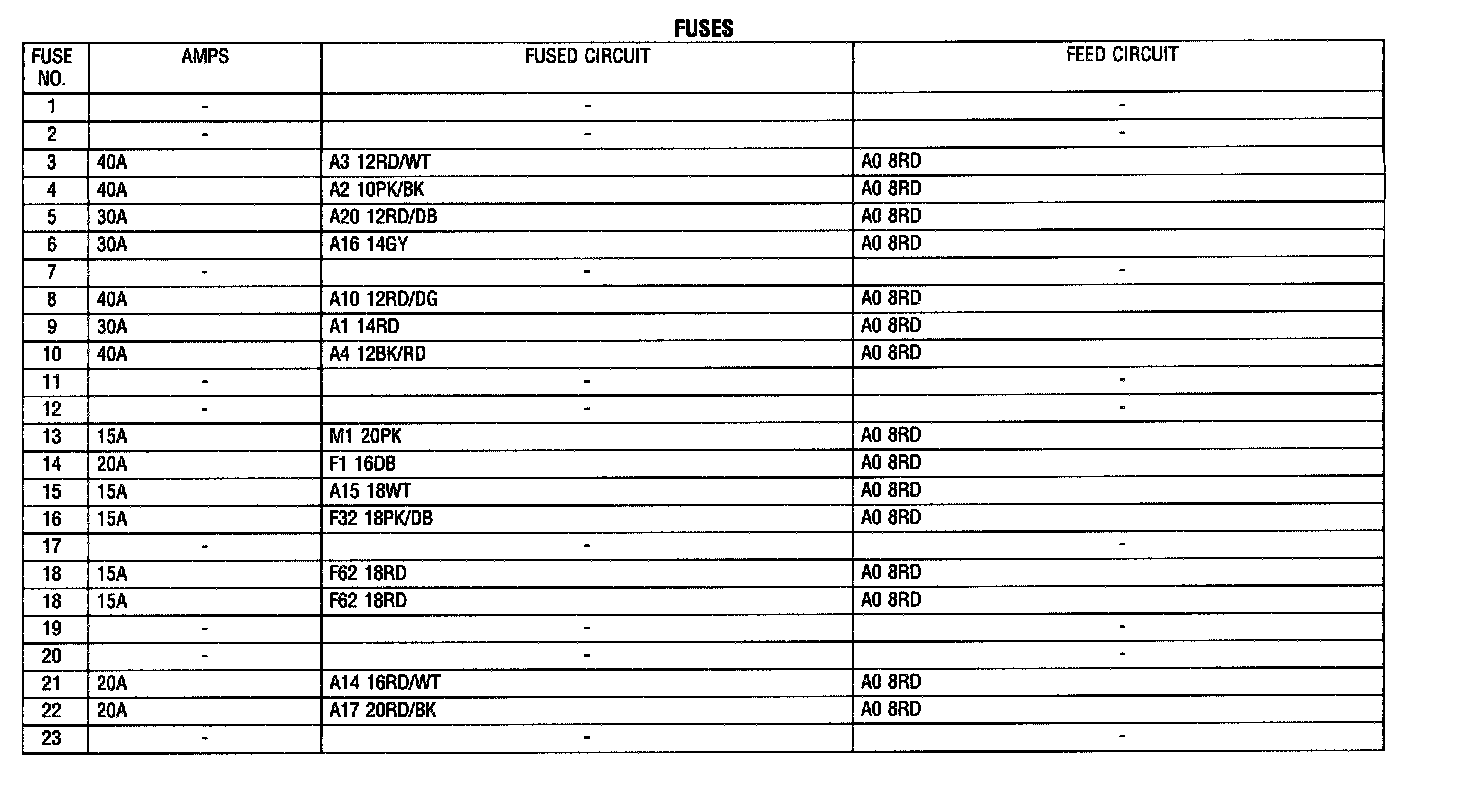

Fuses:
