Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Group 8W-52 (Turn Signals)
>>
Sheet 8W-52-7
Sheet 8W-52-7

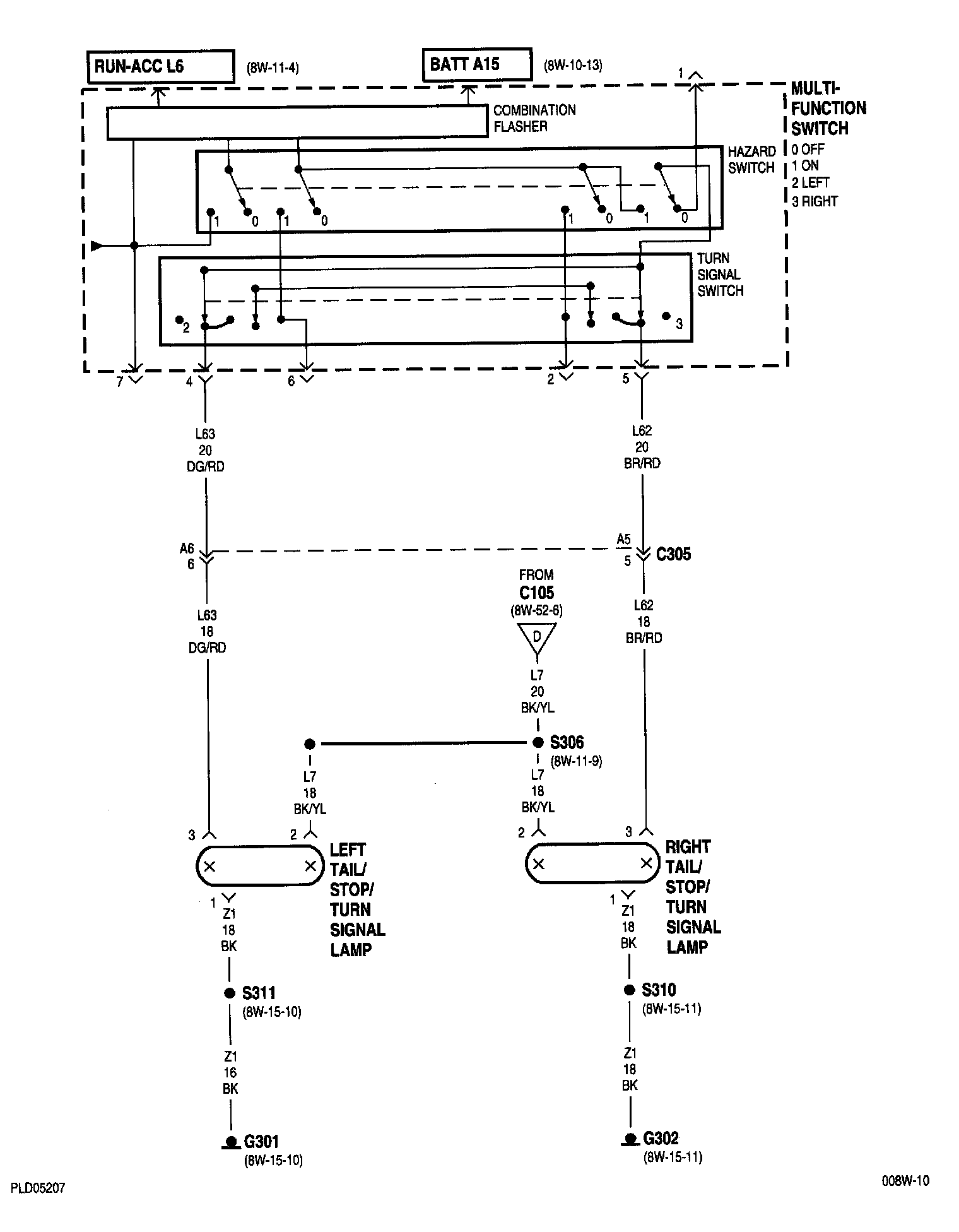

Turn Signals 8w-52-7:
