Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Group 8W-70 (Splice Information)
>>
Sheet 8W-70-2
Sheet 8W-70-2

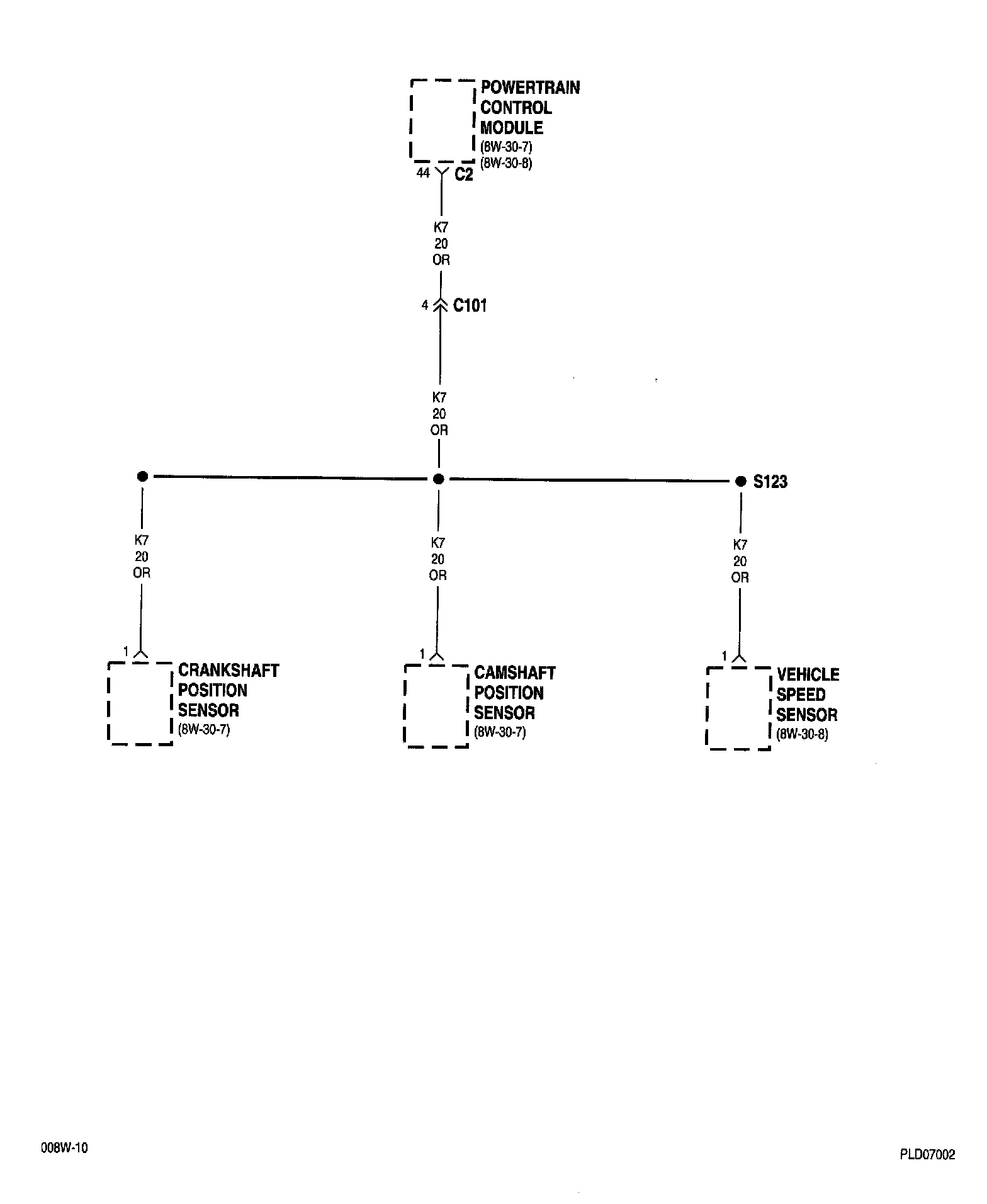

Splice Information 8w-70-2:
