Evaporator Drain Tube: Service and Repair

REMOVAL
1. Raise vehicle.

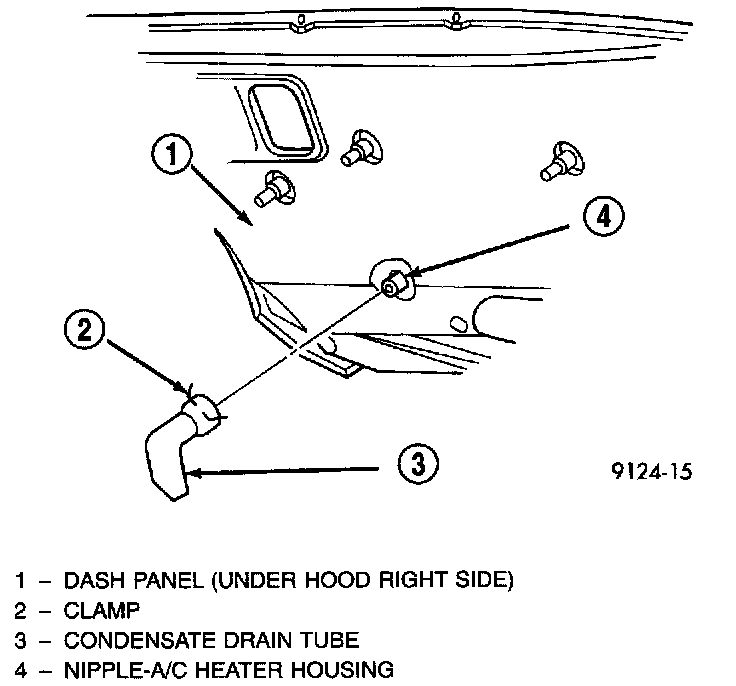

Condensate Water Drain Tube - Typical:

2. Locate rubber drain tube on right side of dash panel.
3. Squeeze clamp and remove drain tube.

INSTALLATION
To install, reverse the preceding operation. Check the drain tube nipple on the heater-A/C housing for any obstructions.
