Diesel Data: Automotive Repair
Home >> Chrysler >> 2000 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> 31TH >> Overhaul (Subassemblies) >> Kickdown Servo

Kickdown Servo

DISASSEMBLY

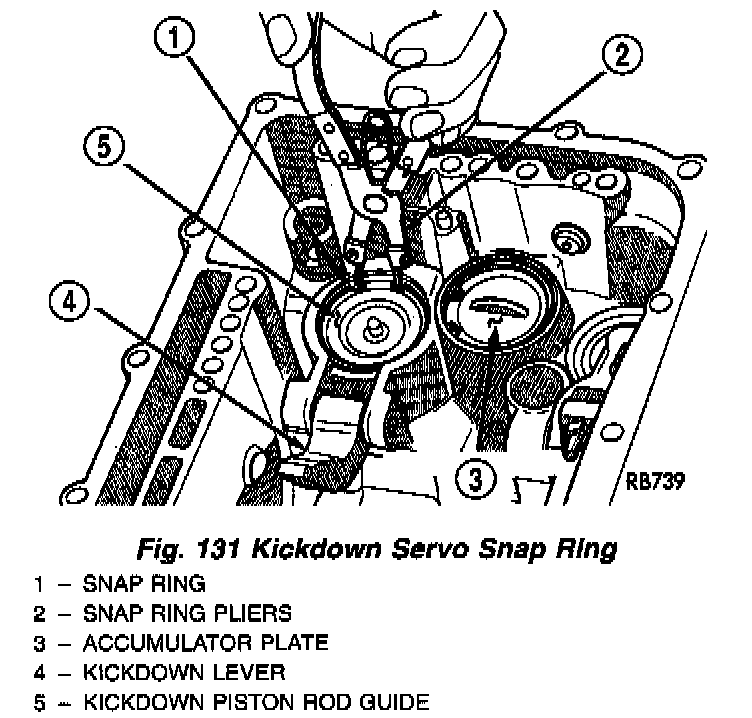

Fig. 131:

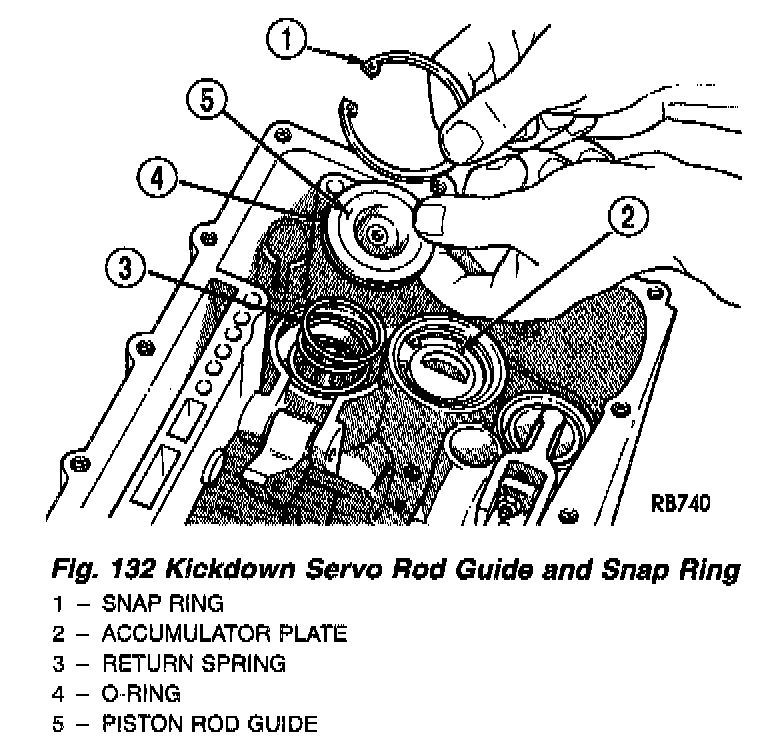

Fig. 132:




Fig. 133:

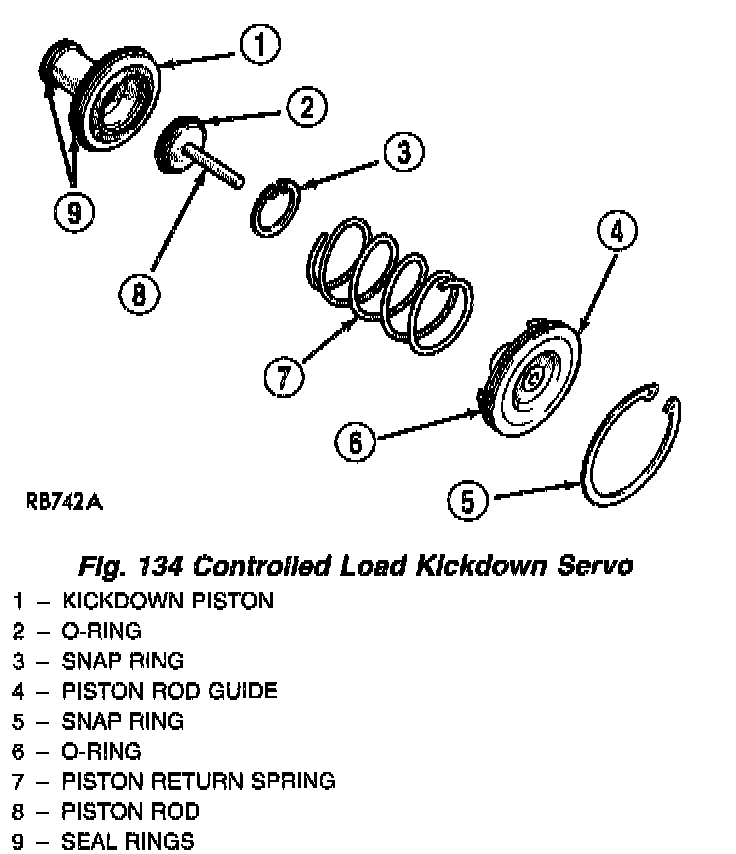

Fig. 134:






ASSEMBLY
To assemble, reverse the above procedure.
