Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
Air Bag

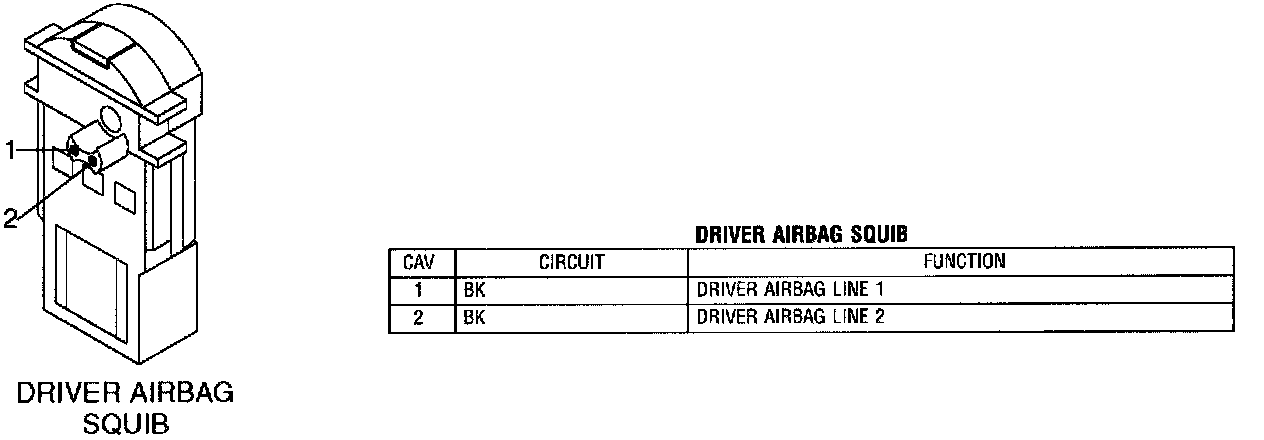

Driver Airbag Squib:

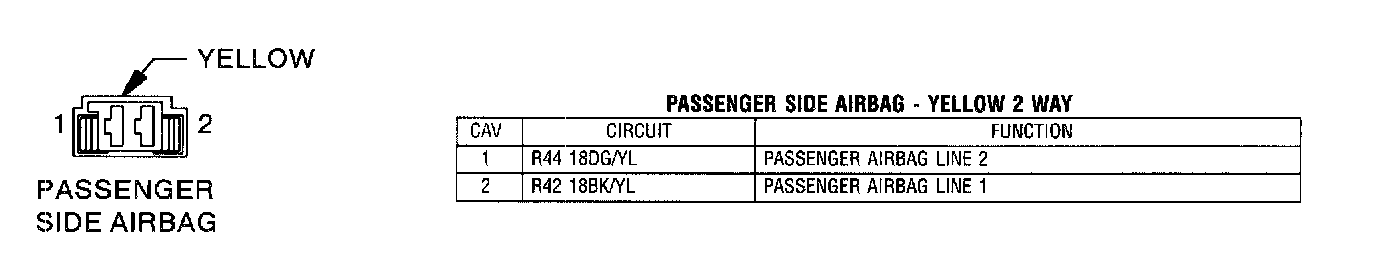

Passenger Side Airbag:
