Arm/Disarm Switch, Antitheft
Arm/Disarm Switch, Antitheft

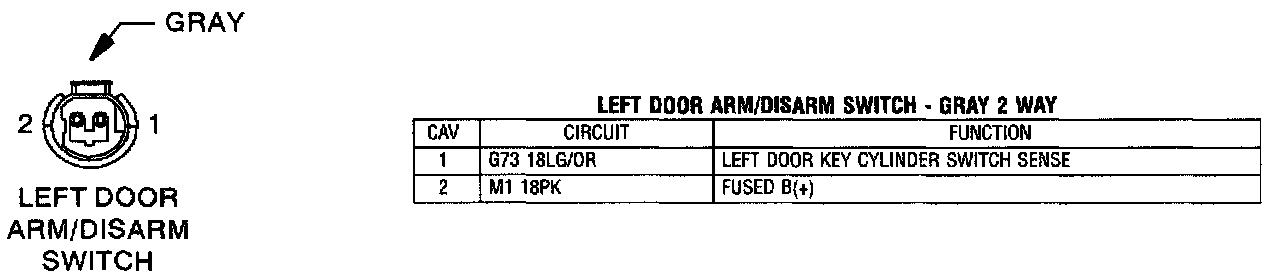

Left Door Arm/Disarm Switch:

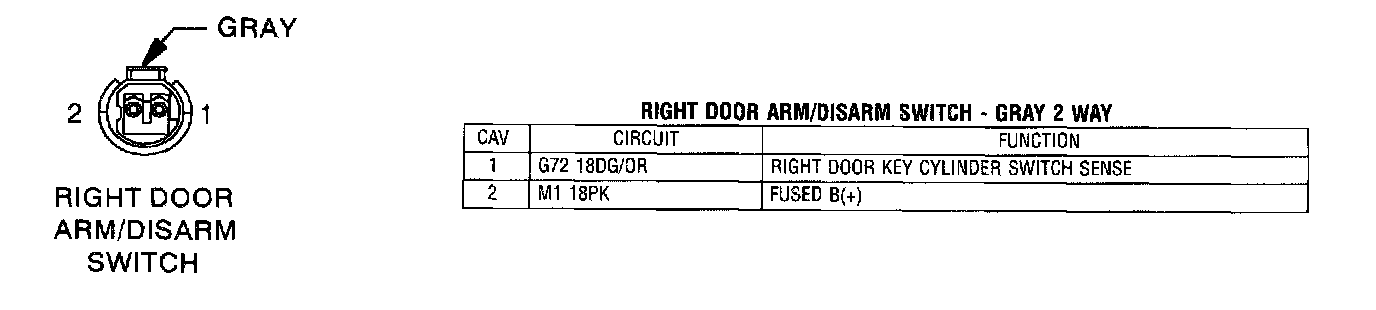

Right Door Arm/Disarm Switch:
