Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Canister Purge Solenoid
Canister Purge Solenoid

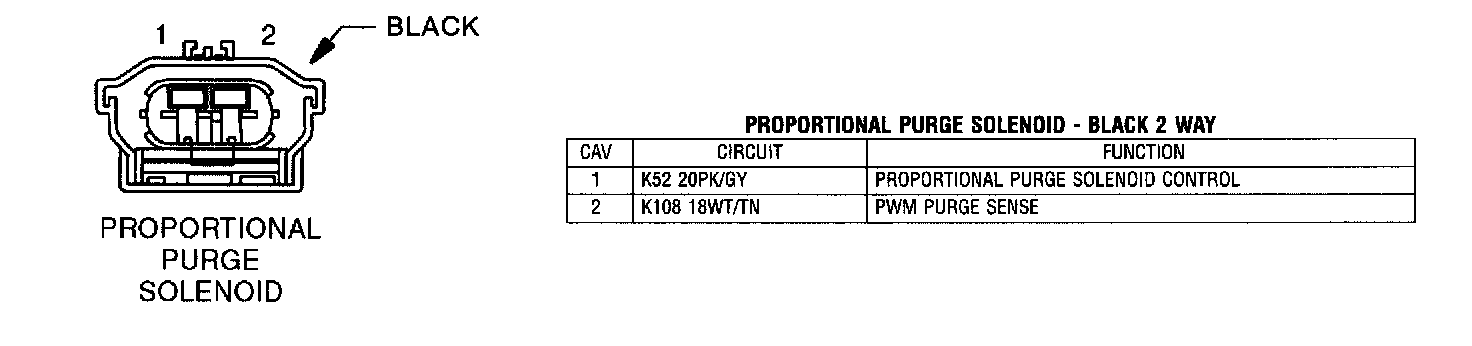

Proportional Purge Solenoid:

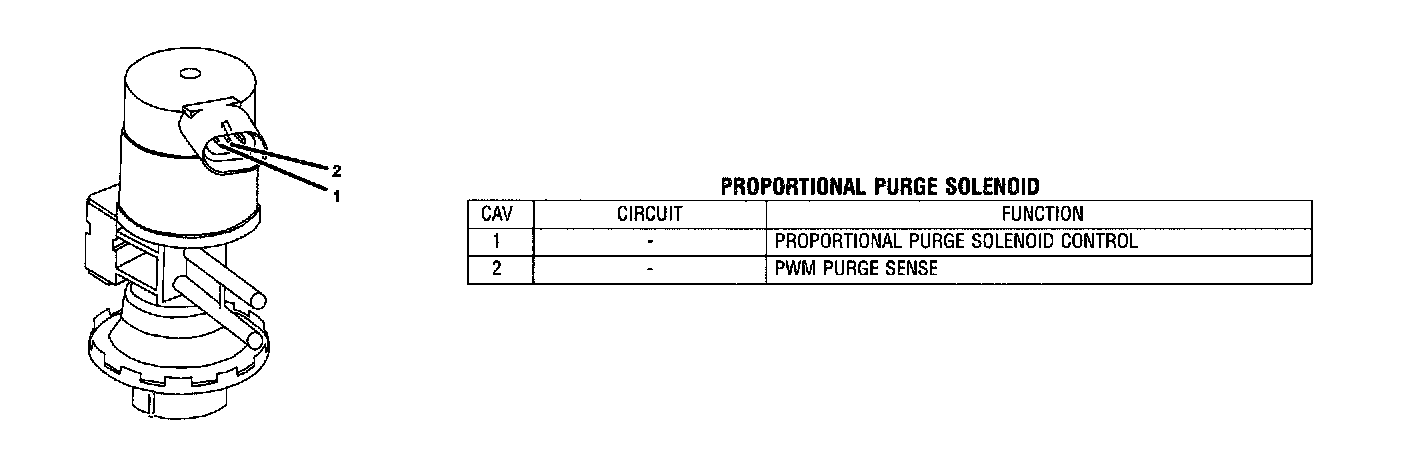

Proportional Purge Solenoid:
