Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>

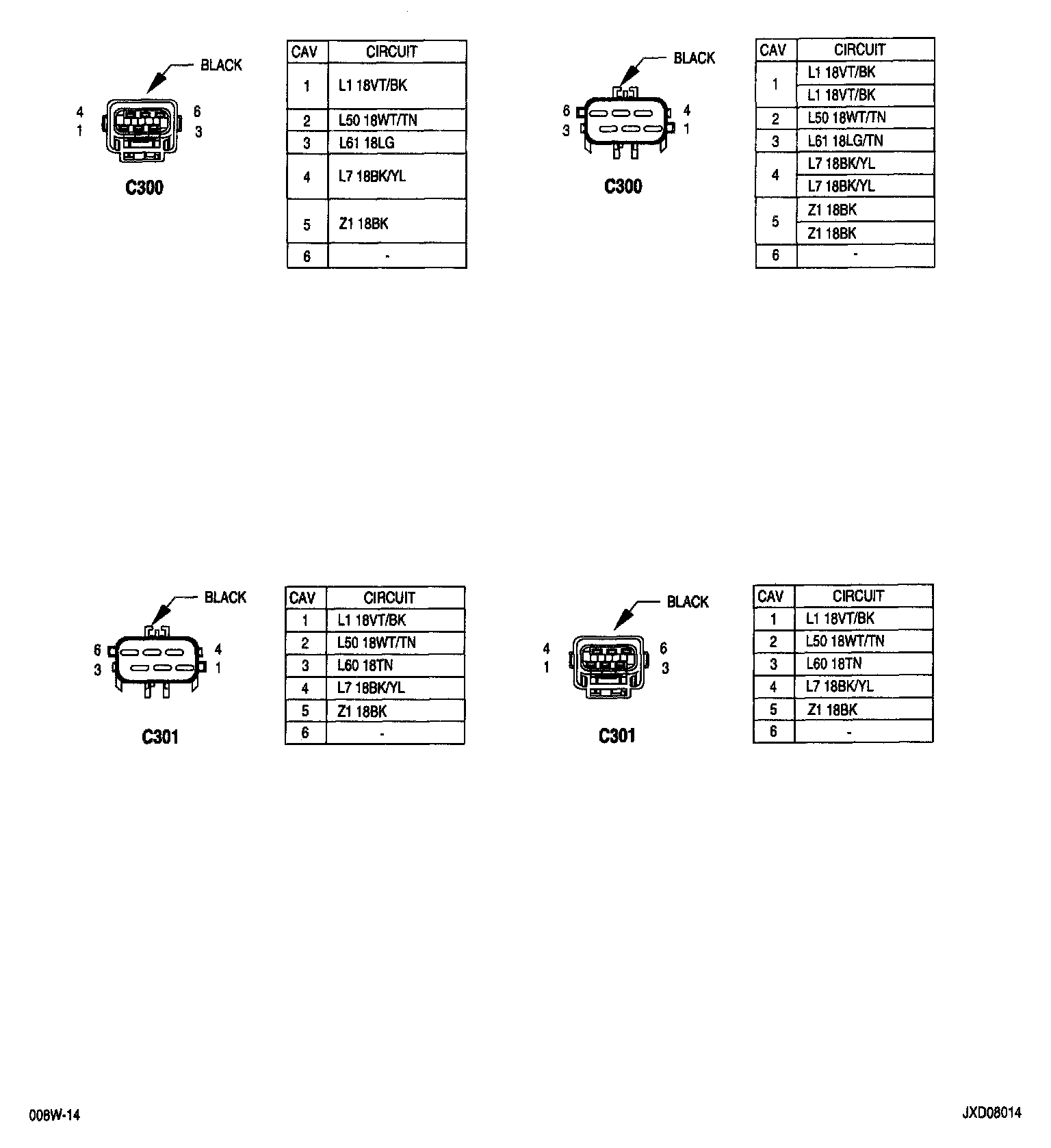

Sheet 8W-80-14
Sheet 8W-80-14
8w-80-14:
