Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>

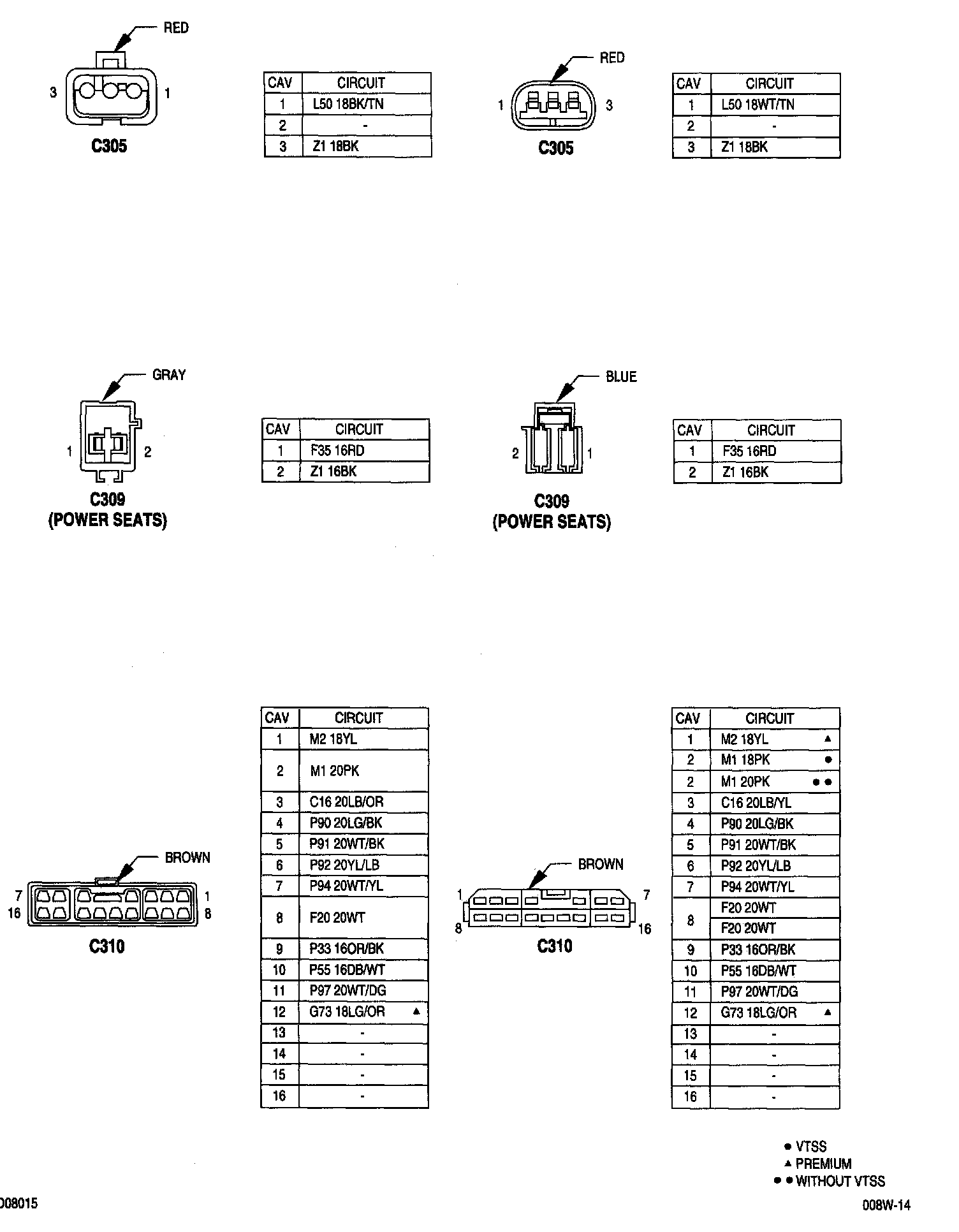

Sheet 8W-80-15
Sheet 8W-80-15
8w-80-15:
