Connector Views
>>
Complete Body and Chassis Connector Views
>>

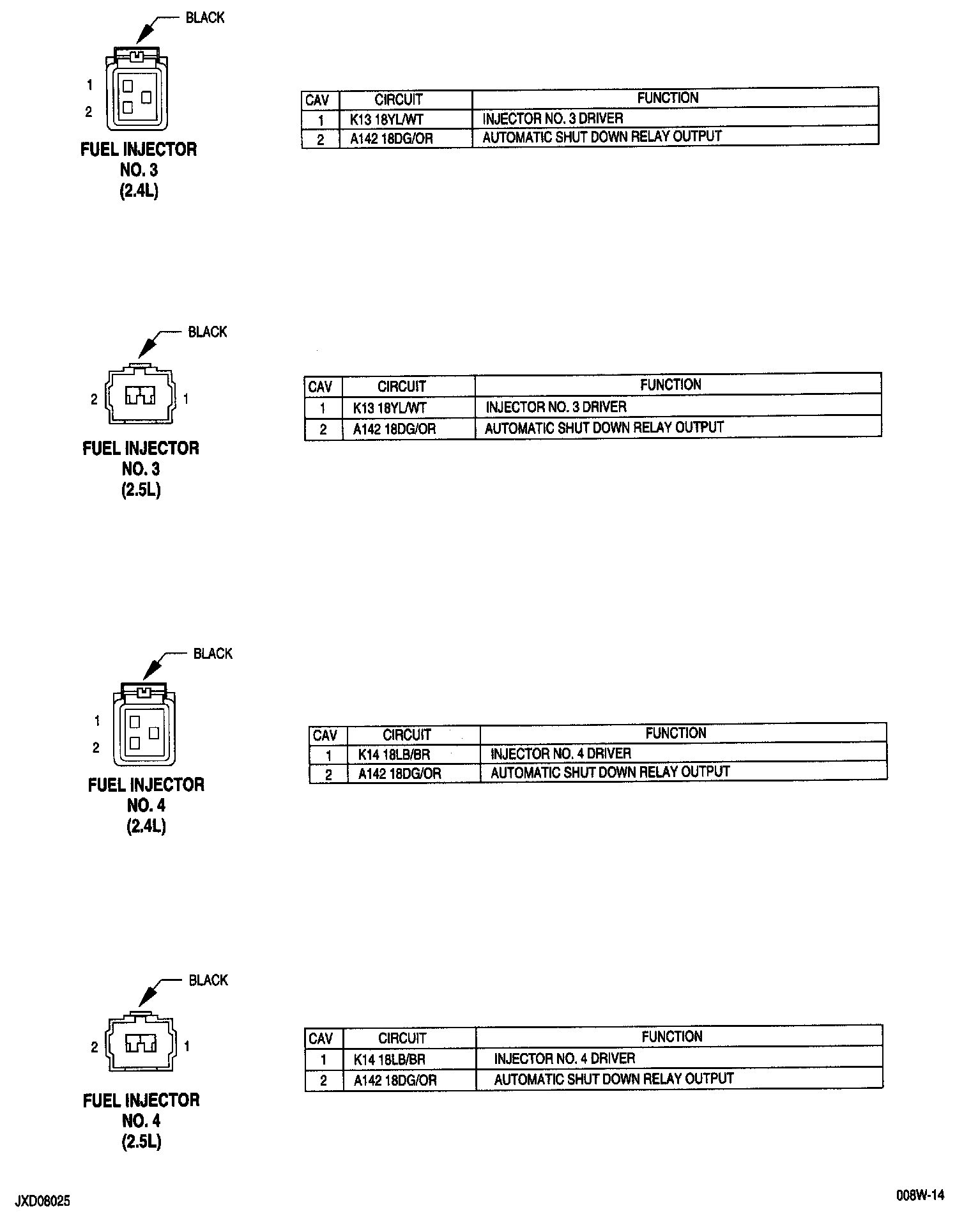

Sheet 8W-80-25
Sheet 8W-80-25
8w-80-25:
