Chrysler
>>
2000
>>
Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Air Door Actuator / Motor, HVAC
Air Door Actuator / Motor, HVAC

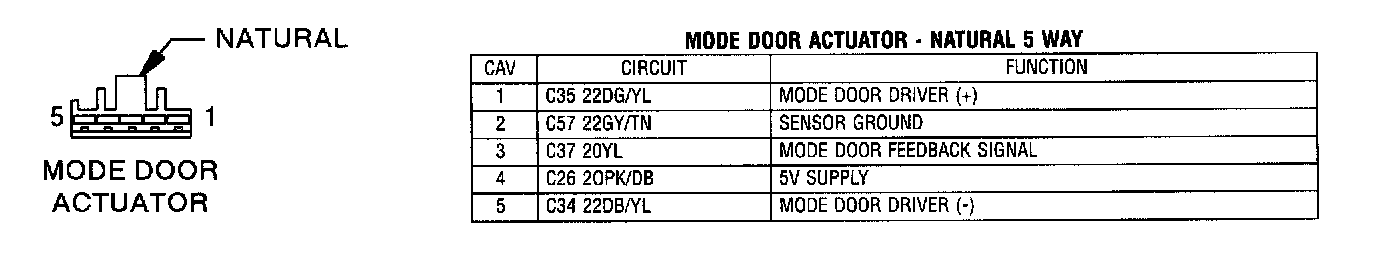

Mode Door Actuator:
