Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Courtesy Lamp

Courtesy Lamp

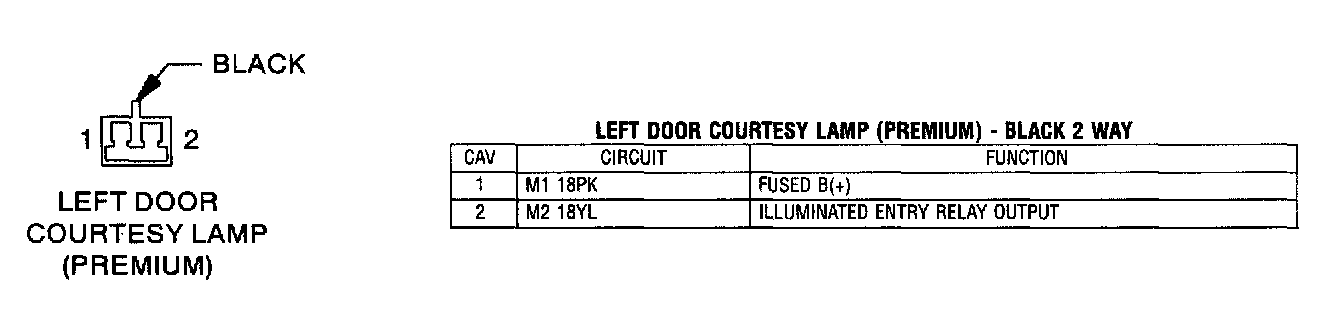

Left Door Courtesy Lamp (Premium):

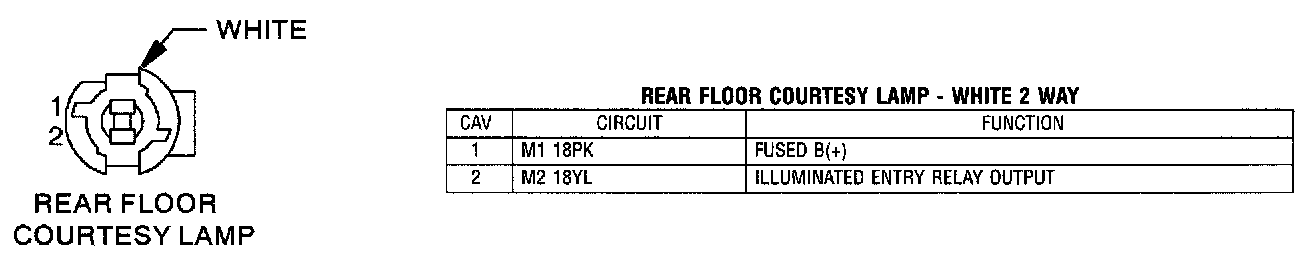

Rear Floor Courtesy Lamp:
