Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Hazard Warning Switch
Hazard Warning Switch

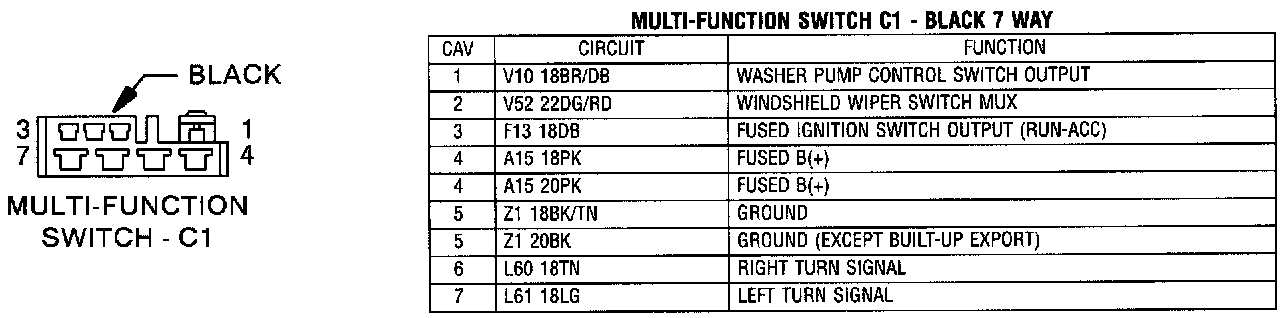

Multi - Function Switch - C1:

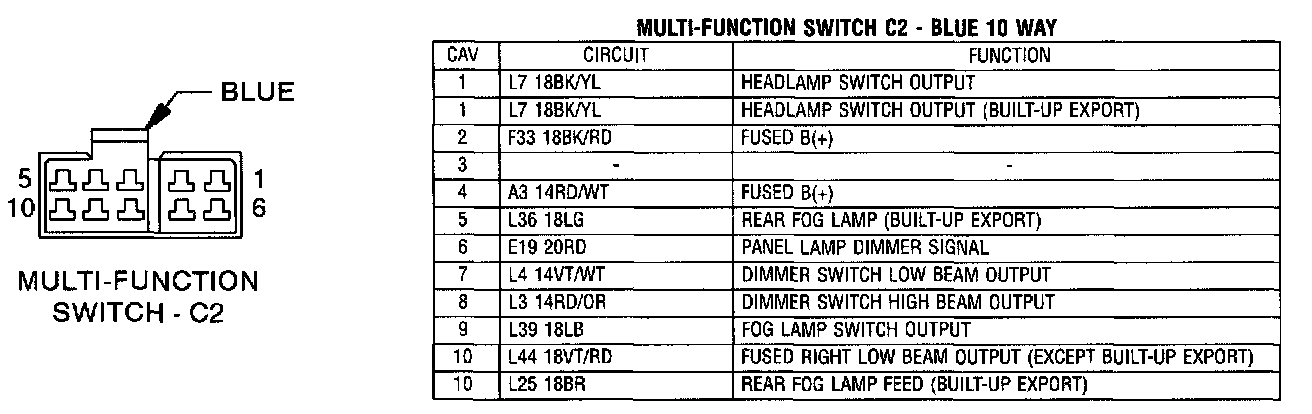

Multi - Function Switch - C2:
