Oxygen Sensor
Oxygen Sensor
Oxygen Sensor Connector (Component Side):

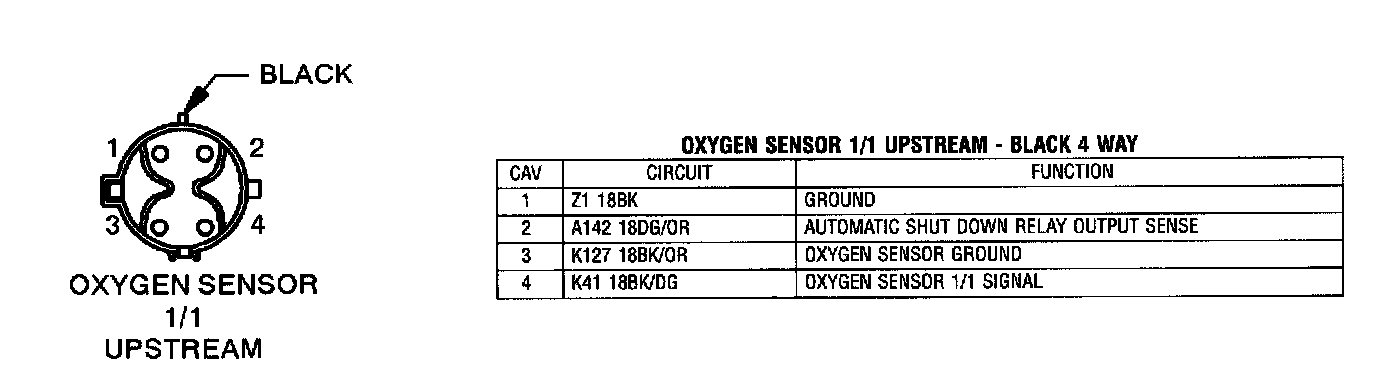

Oxygen Sensor 1/1 Upstream:

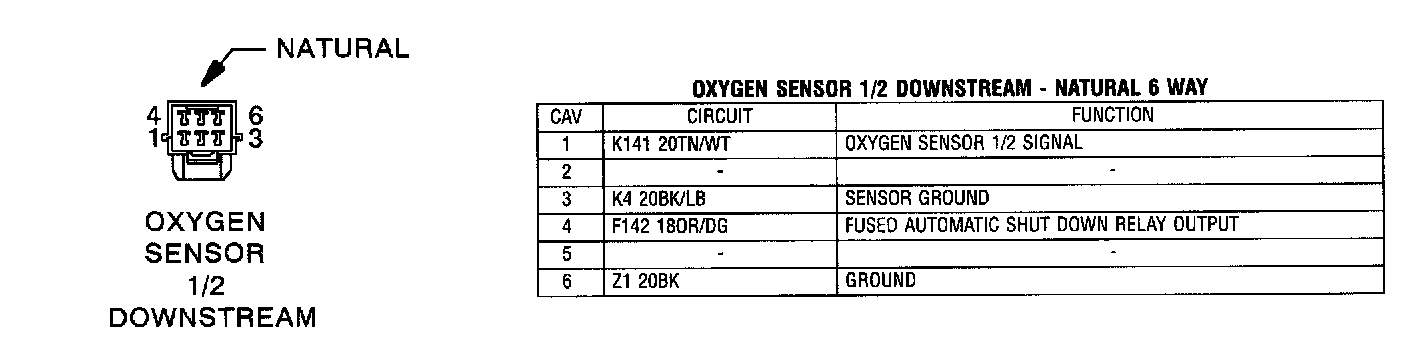

Oxygen Sensor 1/2 Downstream:
