Power Door Lock Actuator
Power Door Lock Actuator

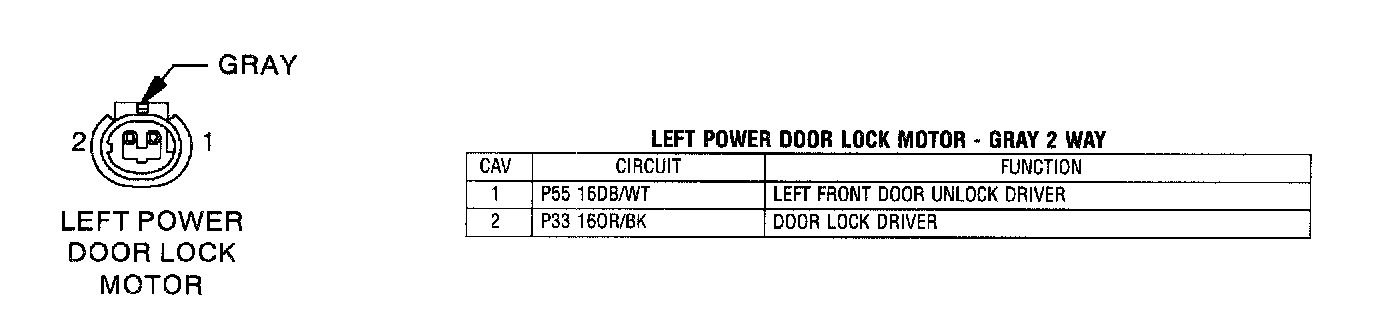

Left Power Door Lock Motor:

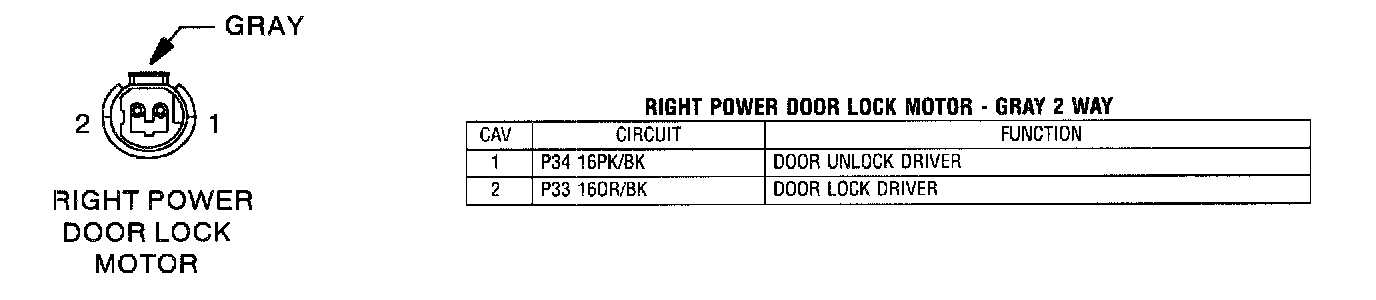

Right Power Door Lock Motor:
