Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
Power Door Lock Switch

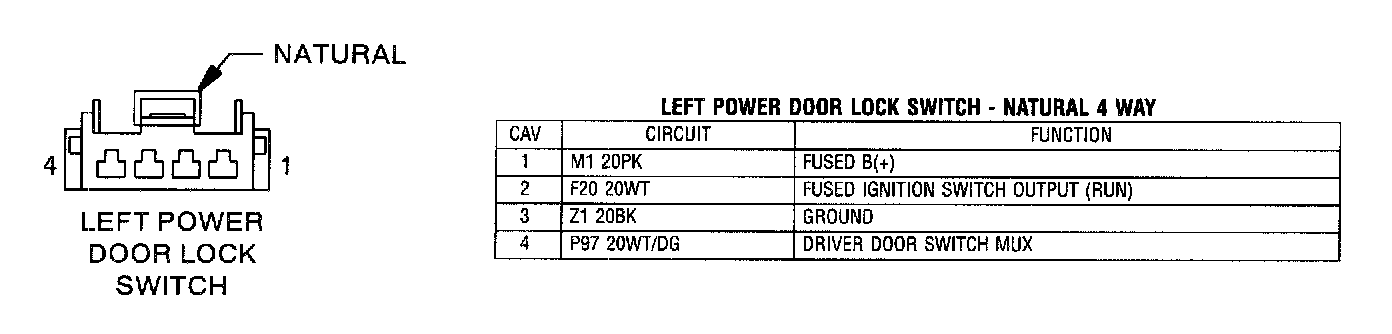

Left Power Door Lock Switch:

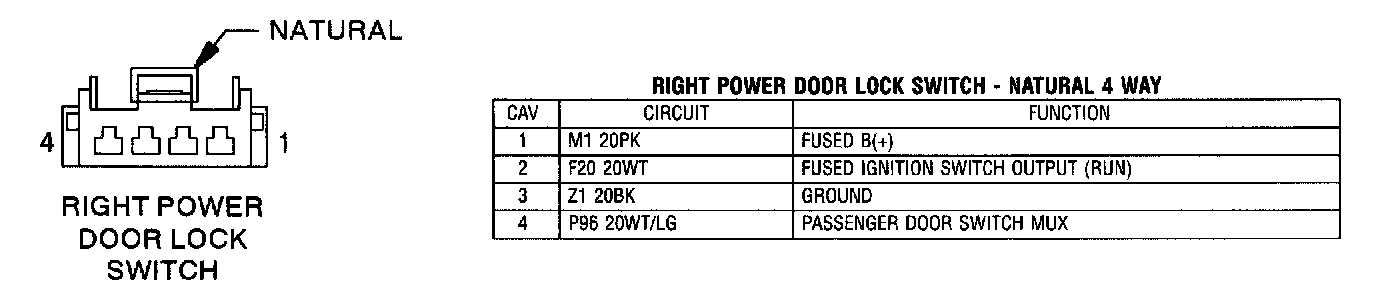

Right Power Door Lock Switch:
