Diesel Data: Automotive Repair

Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Valve Body, A/T

Valve Body, A/T

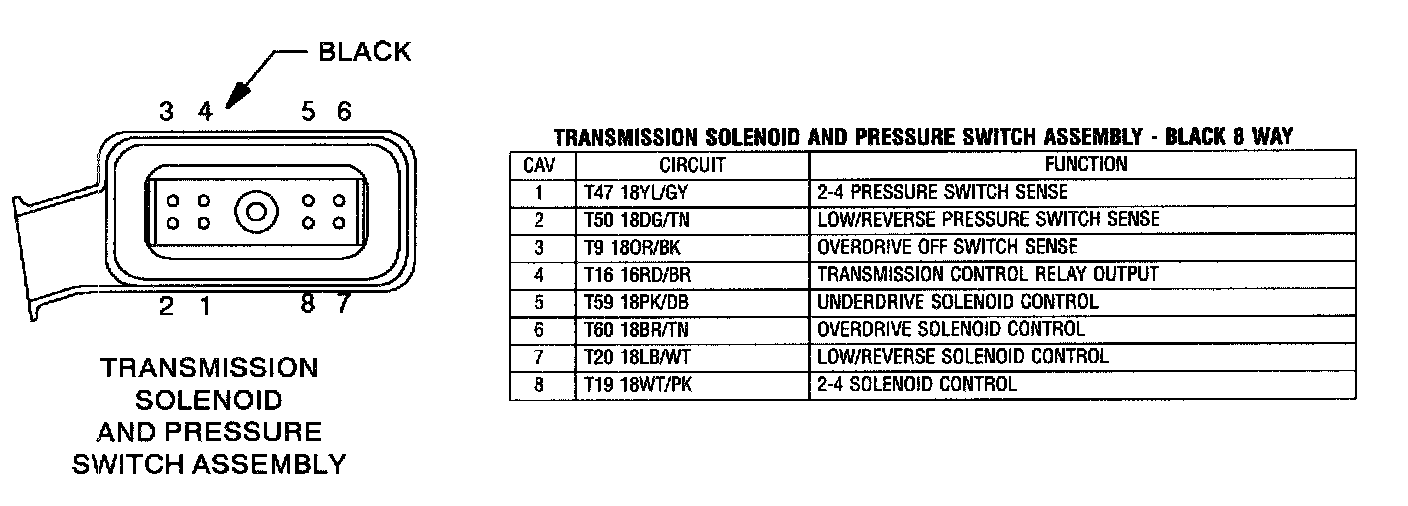

Transmission Solenoid And Pressure Switch Assembly:
