Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Group 8W-42 (Air Conditioning/Heater)
>>

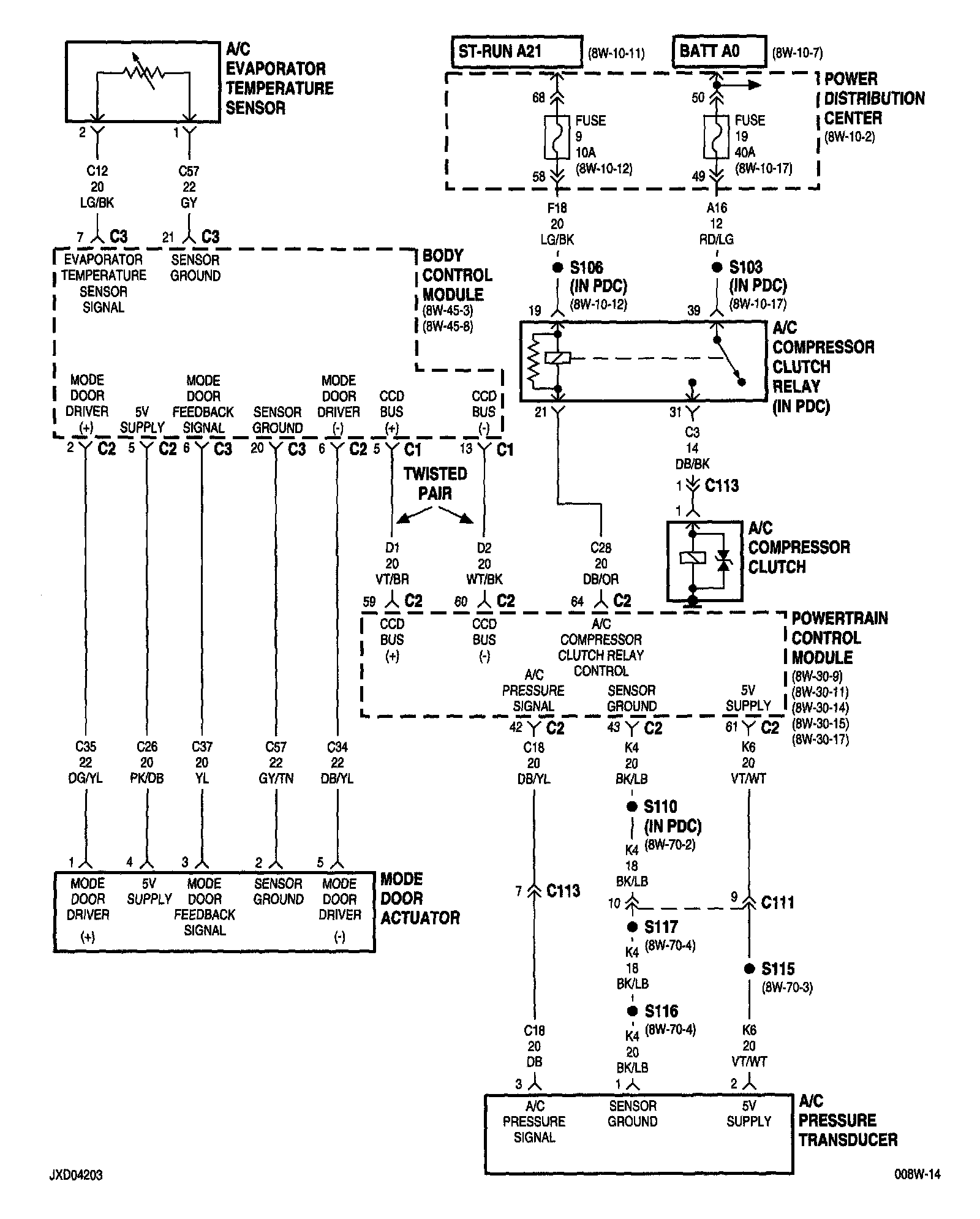

Sheet 8W-42-3
Sheet 8W-42-3
8w-42-3:
